Каталог запасных частей к технике: WIRTGEN W200. OPERATORВґS SEAT RIGHT
1
2
3
3
4
5
6
7
8
8
9
10
10
10
11
11
11
11
11
11
13
13
13
14
15
16
17
18
19
19
19
19
20
21
22
23
24
25
26
26
27
27
27
28
28
28
28
29
30
31
31
32
33
34
35
36
37
38
39
40
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
54
54
55
56
57
58
59
59
59
60
60
61
61
62
63
64
65
66
66
67
68
69
70
71
72

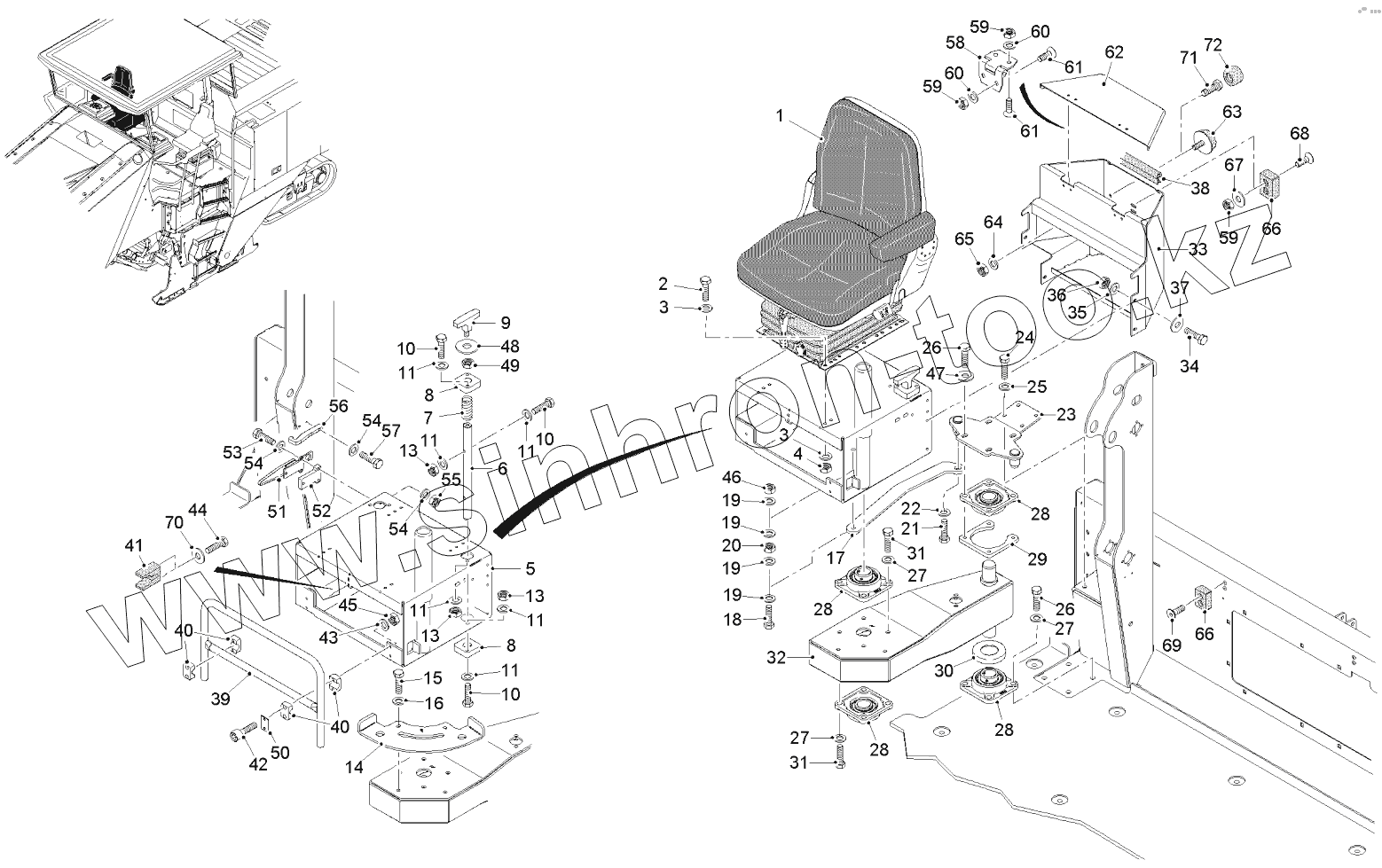

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 2195157 | OPERATORґS SEAT RIGHT | |
| 2 | 4179 | SCREW | |
| 3 | 5206 | WASHER | |
| 4 | 5210 | HEXAGON NUT | |
| 5 | 2129733 | SEAT PEDESTAL | |
| 6 | 2129691 | TENON | |
| 7 | 2135481 | COMPRESSION SPRING | |
| 8 | 2129678 | GUIDE PLATE | |
| 9 | 189613 | HANDLE SCREW | |
| 10 | 4182 | SCREW | |
| 11 | 5206 | WASHER | |
| 13 | 5210 | HEXAGON NUT | |
| 14 | 2199972 | PLATE RIGHT | |
| 15 | 4179 | SCREW | |
| 16 | 5206 | WASHER | |
| 17 | 2138638 | BRACE | |
| 18 | 4264 | SCREW | |
| 19 | 5195 | WASHER | |
| 20 | 5193 | HEXAGON NUT | |
| 21 | 5940 | SCREW | |
| 22 | 5800 | WASHER | |
| 23 | 2138594 | STRAP | |
| 24 | 4220 | SCREW | |
| 25 | 5274 | WASHER | |
| 26 | 4264 | SCREW | |
| 27 | 5195 | WASHER | |
| 28 | 5689 | FLANGED BEARING | |
| 29 | 2130078 | FLANGE | |
| 30 | 2139570 | PROTECTIVE CAP | |
| 31 | 4264 | SCREW | |
| 32 | 2129598 | LEVER | |
| 33 | 2141514 | STORAGE COMPARTMENT | |
| 34 | 5941 | SCREW | |
| 35 | 5800 | WASHER | |
| 36 | 46115 | HEXAGON NUT | |
| 37 | 68267 | WASHER | |
| 38 | 171595 | SEALING PROFILE | |
| 39 | 2138666 | FOOTBOARD | |
| 40 | 4117 | PIPE CLIP | |
| 41 | 172298 | CLAMPING PIECE | |
| 42 | 199717 | SCREW | |
| 43 | 5800 | WASHER | |
| 44 | 5941 | SCREW | |
| 45 | 46115 | HEXAGON NUT | |
| 46 | 5192 | HEXAGON NUT | |
| 47 | 39994 | WASHER | |
| 48 | 5275 | WASHER | |
| 49 | 5268 | HEXAGON NUT | |
| 50 | 41287 | SCRAPER | |
| 51 | 44801 | FASTENING | |
| 52 | 2145323 | DISTANCE PIECE | |
| 53 | 5943 | SCREW | |
| 54 | 5800 | WASHER | |
| 55 | 46115 | HEXAGON NUT | |
| 56 | 2141506 | HOOK | |
| 57 | 5942 | SCREW | |
| 58 | 176695 | HINGE | |
| 59 | 46115 | HEXAGON NUT | |
| 60 | 5800 | WASHER | |
| 61 | 179306 | SCREW | |
| 62 | 2141515 | LID | |
| 63 | 2125171 | RUBBER BUFFER | |
| 64 | 5206 | WASHER | |
| 65 | 5268 | HEXAGON NUT | |
| 66 | 2145358 | STOP | |
| 67 | 68267 | WASHER | |
| 68 | 6071 | SCREW | |
| 69 | 6438 | SCREW | |
| 70 | 68267 | WASHER | |
| 71 | 4219 | SCREW | |
| 72 | 115828 | PROTECTING CAP |
