Каталог запасных частей к технике: WIRTGEN W200. MILLING DRUM HOUSING FB 1500
1
2
3
4
5
6
8
9
10
10
10
11
11
11
12
12
12
13
13
13
14
14
15
15
15
15
15
16
16
16
16
16
17
17
17
17
18
19
19
21
21
22
23
24
24
25
25
26
27
28
28
28
29
29
29
30
30
30
31
32
32
32
33
33
34
35
36
36
37
38
38
38
40
40
41
41
45
45
45
45
45
45
46
46
47
48
49

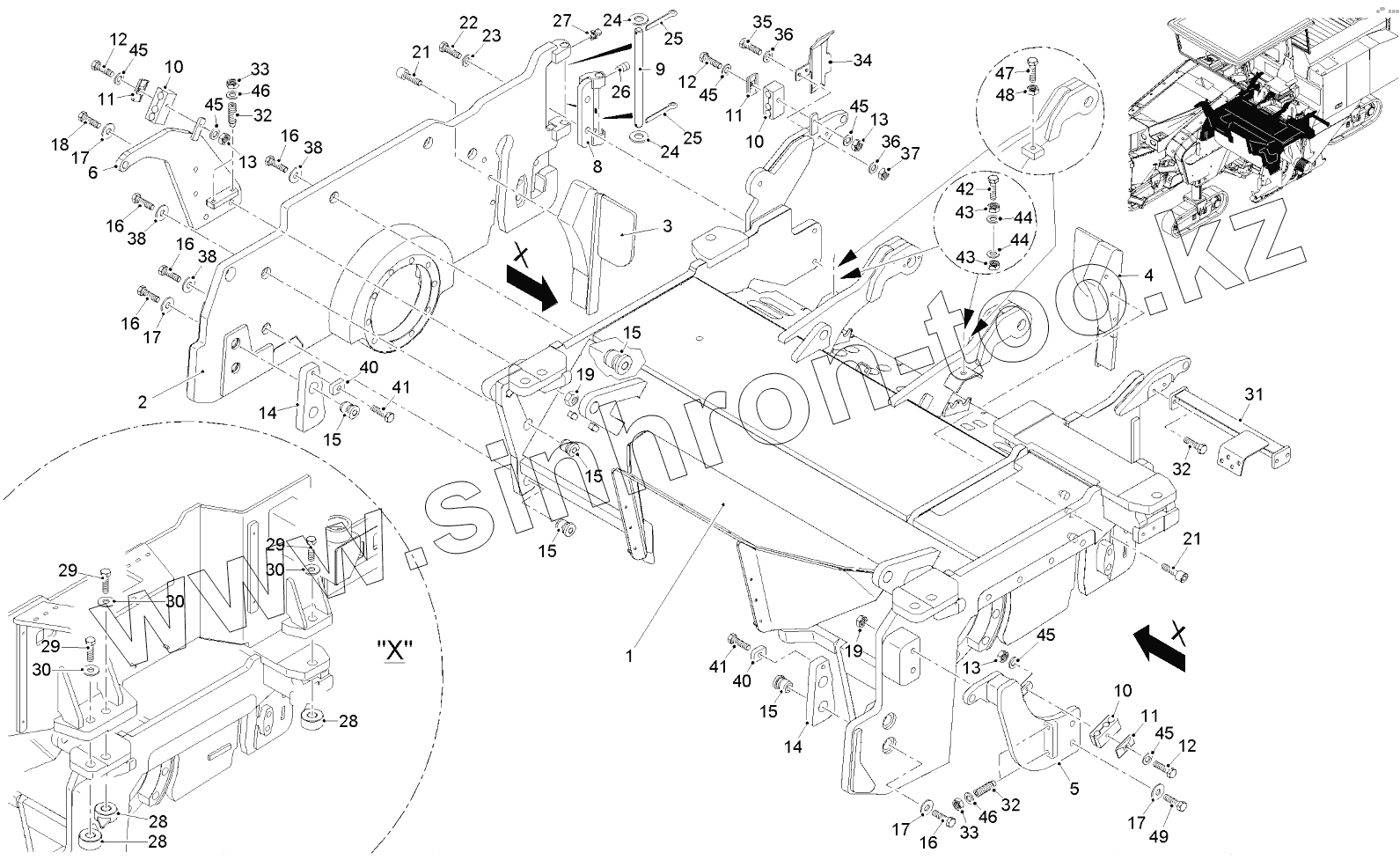

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 2136401 | MILLING DRUM HOUSING FB 1500 | |
| 2 | 2112086 | SIDE PANEL, RIGHT | |
| 3 | 2106007 | HOUSING | |
| 4 | 2111406 | HOUSING LEFT | |
| 5 | 2138828 | CONSOLE | |
| 6 | 2135692 | CYLINDRICAL HOLDING | |
| 8 | 2079266 | HINGE | |
| 9 | 2079267 | BOLT | |
| 10 | 2183858 | CLAMP D15 3-FOLD | |
| 11 | 126124 | TOP COVER | |
| 12 | 5205 | SCREW | |
| 13 | 12247 | HEXAGON NUT | |
| 14 | 2106119 | PLATE | |
| 15 | 2108520 | ALIGNMENT BOLT | |
| 16 | 4363 | SCREW | |
| 17 | 23935 | WASHER | |
| 18 | 4438 | SCREW | |
| 19 | 20562 | HEXAGON NUT | |
| 21 | 4489 | SCREW | |
| 22 | 4433 | SCREW | |
| 23 | 5158 | WASHER | |
| 24 | 4822 | WASHER | |
| 25 | 9854 | SPLIT PIN | |
| 26 | 29299 | THREADED PIN | |
| 27 | 9065 | GREASING NIPPLE | |
| 28 | 2125701 | SAFETY NUT | |
| 29 | 2069770 | SCREW | |
| 30 | 32111 | WASHER | |
| 31 | 2138917 | ADAPTER | |
| 32 | 196008 | THREADED PIN | |
| 33 | 5134 | HEXAGON NUT | |
| 34 | 2171430 | DEFLECTOR | |
| 35 | 4222 | SCREW | |
| 36 | 5274 | WASHER | |
| 37 | 5269 | HEXAGON NUT | |
| 38 | 2175857 | WASHER | |
| 40 | 2202511 | DISTANCE SHEET | |
| 41 | 4359 | SCREW | |
| 45 | 5206 | WASHER | |
| 46 | 5131 | WASHER | |
| 47 | 5623 | SCREW | |
| 48 | 36105 | HEXAGONAL NUT | |
| 49 | 4496 | SCREW |
