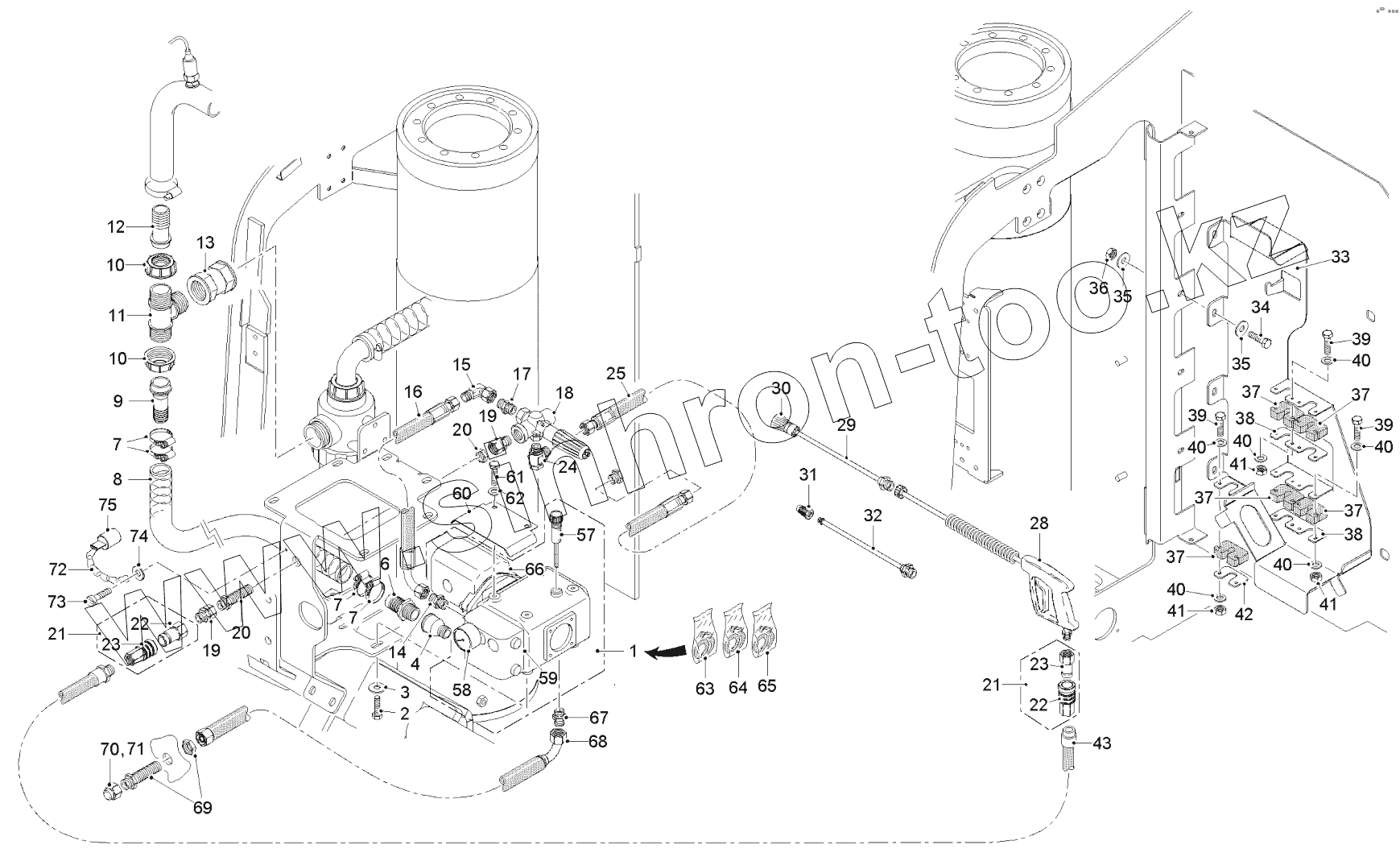

Каталог запасных частей к технике: WIRTGEN W200. HIGH-PRESSURE CLEANER

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
6
7
7
7
8
9
10
10
11
12
13
14
15
16
17
18
19
19
20
20
21
21
22
22
23
23
24
25
28
29
30
31
32
33
34
35
35
36
37
37
37
37
37
38
38
39
39
39
40
40
40
40
40
40
41
41
41
42
43
57
58
59
60
61
62
63
64
65
66
Позиция на иллюстрации Заводской номер детали Название детали
1 2117460 HIGH PRESSURE PUMP
2 4179 SCREW
3 51957 WASHER
4 45978 REDUCING SLEEVE
6 102964 HOSE NOZZLE
7 3289 HOSE CLAMP
8 146059 PVC HOSE
9 2180753 HOSE CONNECTION
10 2131172 UNION NUT
11 2131157 T-PIECE
12 2131171 HOSE CONNECTION
13 2131155 FITTING
14 1126 MALE STUD COUPLING
15 31428 ADJUSTABLE MALE STUD ELBOW
16 139898 HYDRAULIC HOSE
17 1126 MALE STUD COUPLING
18 2091483 PRESSURE-RELIEF VALVE
19 90680 STUD STANDPIPE ADAPTOR
20 3928 BULKHEAD COUPLING
21 146218 QUICK HITCH
22 146219 FEMALE QUICK COUPLER FITTING
23 146220 MALE QUICK COUPLER FITTING
24 4974 BANJO COUPLING,ONE-PIECE BOLT
25 1680 HYDRAULIC HOSE
28 163262 PRESSURE LANCE
29 163264 HIGH-PRESSURE LANCE
30 191088 NOZZLE
31 117659 NOZZLE
32 128540 HIGH-PRESSURE LANCE
33 2137512 HOLDER
34 4180 SCREW
35 51958 WASHER
36 12247 HEXAGON NUT
37 2137500 CLAMPING PIECE
38 2137503 PLATE
39 5806 SCREW
40 5801 WASHER
41 32783 HEXAGON NUT
42 2137505 PLATE
43 163263 FLEXIBLE TUBING
57 2183978 LEVEL STICK
58 2173462 MANOMETER
59 2223436 SUPPORTING RING
60 2305448 COVER
61 57940 SCREW
62 5206 WASHER
63 2223429 VALVE SET
64 2223431 SET OF SEALS
65 2223433 SET OF SEALS
66 2226667 HYDRAULIC MOTOR
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
