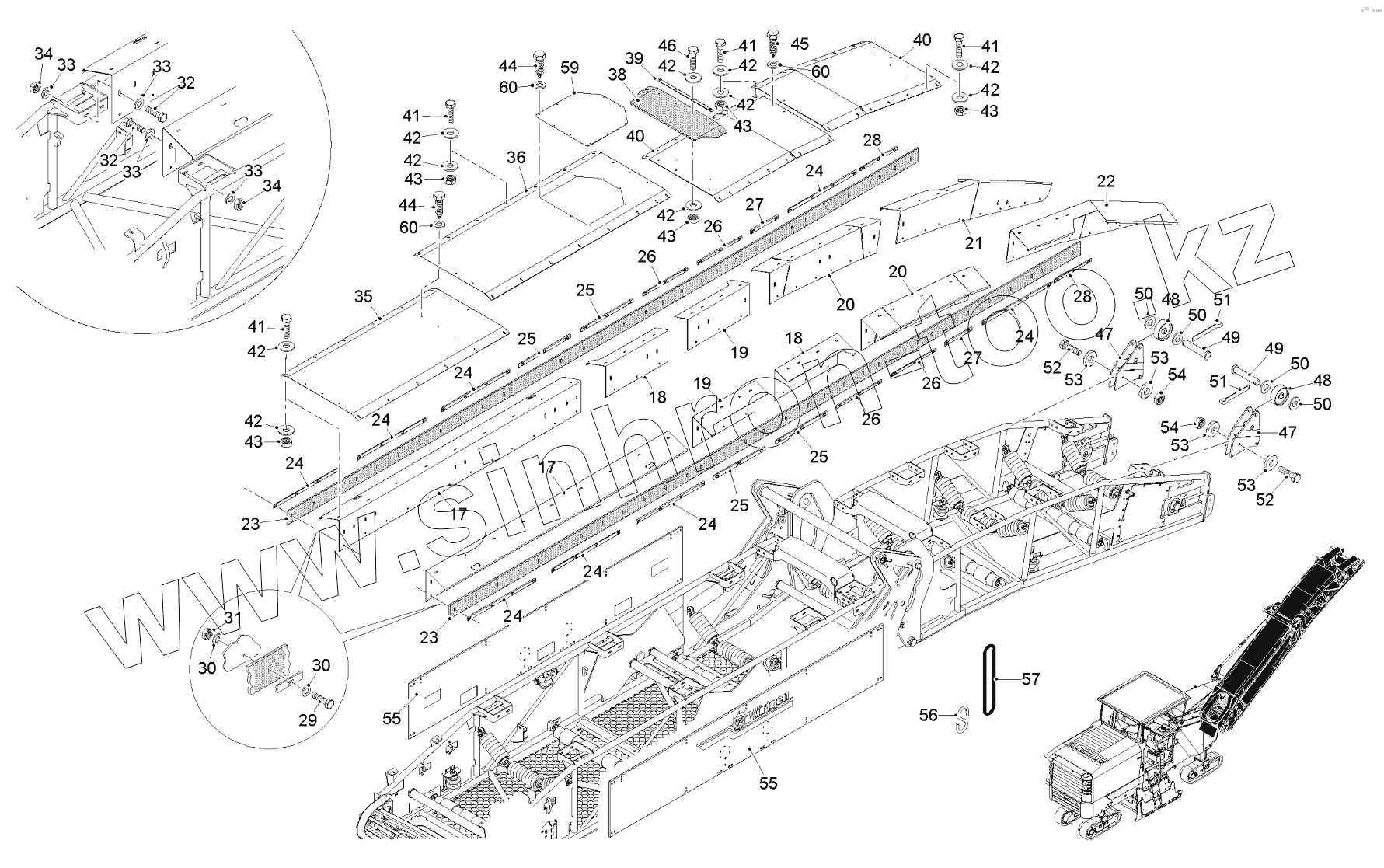

Каталог запасных частей к технике: WIRTGEN W200. FOLDING CONVEYOR SEALINGS
17
17
18
18
19
19
20
20
21
22
23
23
24
24
24
24
24
24
24
24
25
25
25
25
26
26
26
26
27
27
28
28
29
30
30
31
32
32
33
33
33
33
34
34
35
36
38
39
40
40
41
41
41
41
42
42
42
42
42
42
42
42
42
42
43
43
43
43
43
44
44
45
46
47
47
48
48
49
49
50
50
50
50
51
51
52
52
53
53
53
53
54
54
55
55
56
57
59
60
60
60
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 17 | 2120220 | COVER SHEET | |
| 18 | 2120319 | COVER SHEET | |
| 19 | 2120323 | COVER SHEET | |
| 20 | 2120352 | COVER SHEET | |
| 21 | 2120340 | COVER SHEET | |
| 22 | 2120347 | COVER SHEET | |
| 23 | 2120794 | WIPER RUBBER | |
| 24 | 15132 | RAIL | |
| 25 | 37573 | RAIL | |
| 26 | 2344914 | STRIP | |
| 27 | 37274 | RAIL | |
| 28 | 38613 | RAIL | |
| 29 | 4181 | SCREW | |
| 30 | 5206 | WASHER | |
| 31 | 12247 | HEXAGON NUT | |
| 32 | 4220 | SCREW | |
| 33 | 5274 | WASHER | |
| 34 | 5269 | HEXAGON NUT | |
| 35 | 2120329 | COVER HOOD | |
| 36 | 2166248 | COVER HOOD | |
| 38 | 2126347 | RUBBER | |
| 39 | 38567 | STRIP | |
| 40 | 2120413 | COVER HOOD | |
| 41 | 4180 | SCREW | |
| 42 | 5211 | WASHER | |
| 43 | 12247 | HEXAGON NUT | |
| 44 | 12410 | SCREW | |
| 45 | 8477 | SCREW | |
| 46 | 4181 | SCREW | |
| 47 | 2120264 | CONSOLE | |
| 48 | 2384631 | WHEEL | |
| 49 | 44145 | BOLT | |
| 50 | 5158 | WASHER | |
| 51 | 5849 | SPLIT PIN | |
| 52 | 1063 | SCREW | |
| 53 | 36333 | WASHER | |
| 54 | 5151 | HEXAGON NUT | |
| 55 | 2120342 | TARPAULIN | |
| 56 | 70204 | HOOK | |
| 57 | 70203 | RUBBER ENDLESS | |
| 59 | 2161616 | LID | |
| 60 | 5800 | WASHER |
