Каталог запасных частей к технике: WIRTGEN W200. FCS-SIDE PLATE FB600-1200
1
2
2
3
3
4
5
5
6
6
7
7
8
8
9
9
10
10
11
12
13
16
16
16
16
16
17
17
17
17
17
19
19
19
19
19
20
20
20
21
21
22
22
23
23
24
24
24
24
24
24
24
24
25
25
26
26
26
26
27
27
28
28
29
29
29
29
30
30
31
31
32
33
34
34
34
34
35
35
35
35
36
36
36
36
36
36
36
36
37
37
37
37
38
39
40
41
41
41
41
42
42
42
42
43
43
43
43

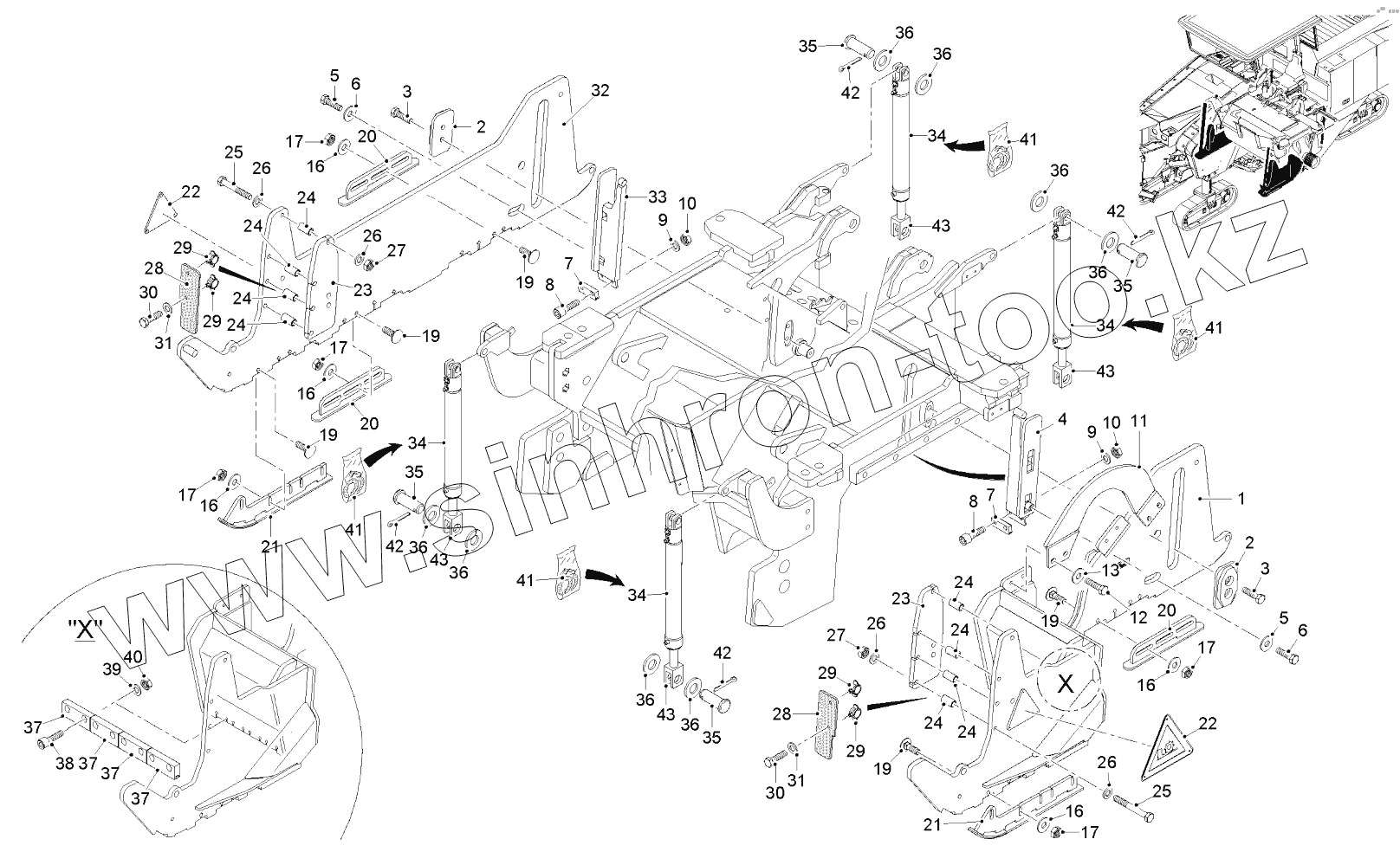

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 2144910 | SIDE PLATE LEFT | |
| 2 | 2107425 | GUIDANCE | |
| 3 | 21955 | SCREW | |
| 4 | 2111402 | SEALING, LEFT | |
| 5 | 23935 | WASHER | |
| 6 | 4357 | SCREW | |
| 7 | 56731 | SCRAPER BLADE B 100 | |
| 8 | 4420 | SCREW | |
| 9 | 5274 | WASHER | |
| 10 | 5269 | HEXAGON NUT | |
| 11 | 2144751 | SEGMENT | |
| 12 | 4300 | SCREW | |
| 13 | 36126 | WASHER | |
| 16 | 39994 | WASHER | |
| 17 | 5192 | HEXAGON NUT | |
| 18 | 4264 | SCREW | |
| 19 | 148982 | SCREW | |
| 20 | 2106074 | PROTECTOR SKID | |
| 21 | 155630 | PROTECTOR SKID 50X625 | |
| 22 | 78010 | ALUMINIUM SIGN | |
| 23 | 2106080 | GUIDANCE | |
| 24 | 183370 | BUSHING | |
| 25 | 4314 | SCREW | |
| 26 | 5131 | WASHER | |
| 27 | 5151 | HEXAGON NUT | |
| 28 | 2112816 | SEALING RUBBER | |
| 29 | 30259 | PIPE CLIP | |
| 30 | 4177 | SCREW | |
| 31 | 5211 | WASHER | |
| 32 | 2106038 | SIDE PLATE RIGHT | |
| 33 | 2106108 | SEAL | |
| 34 | 2103475 | HYDRAULIC CYLINDER W POSITION MEASURING | |
| 35 | 1322 | BOLT | |
| 36 | 4822 | WASHER | |
| 37 | 56731 | SCRAPER BLADE B 100 | |
| 38 | 4420 | SCREW | |
| 39 | 5274 | WASHER | |
| 40 | 5269 | HEXAGON NUT | |
| 41 | 2113307 | SET OF SEALS | |
| 42 | 9855 | SPLIT PIN | |
| 43 | 2563961 | FORK HEAD |
