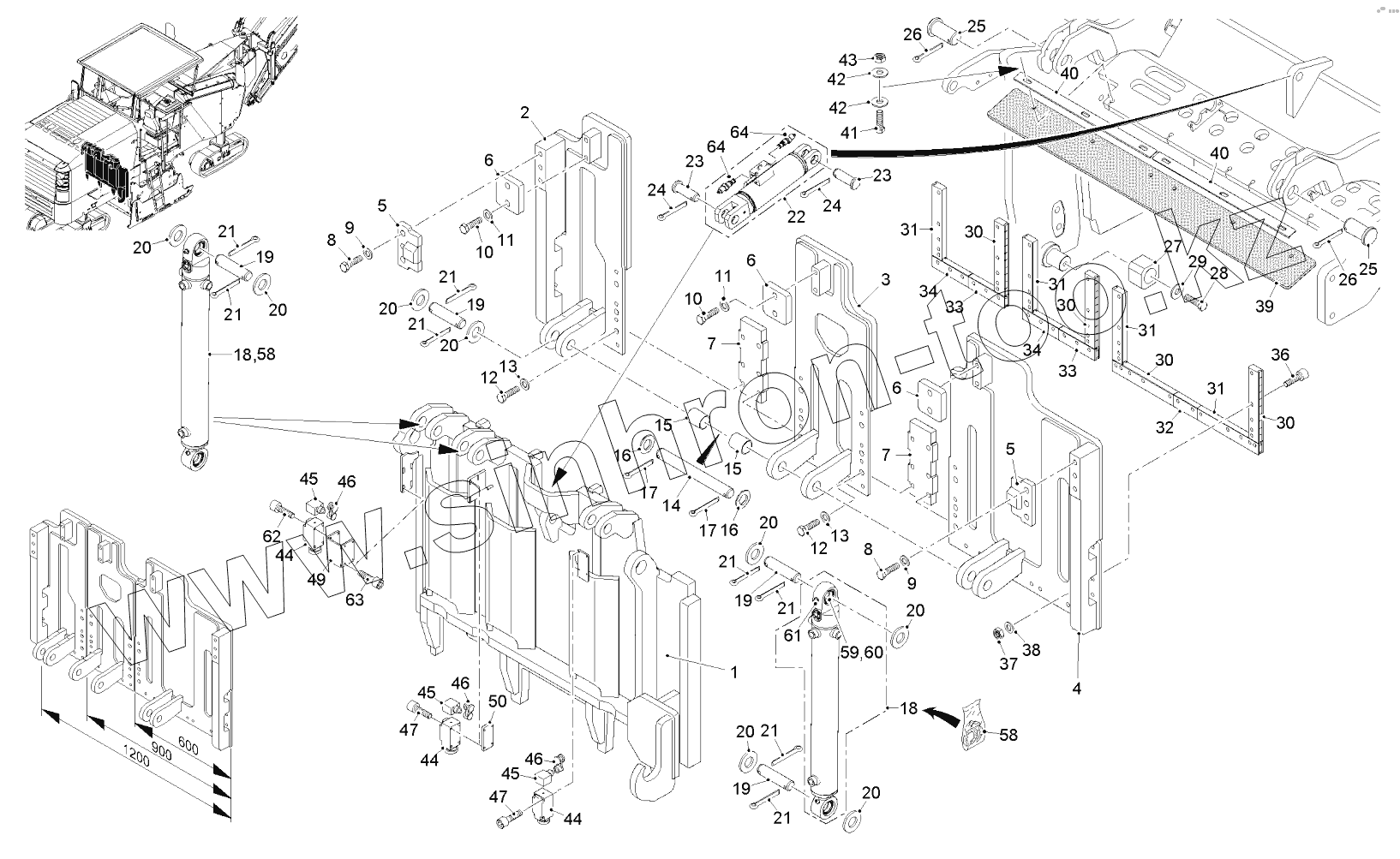

Каталог запасных частей к технике: WIRTGEN W200. FCS-SCRAPER FB600-1200
1
2
3
4
5
5
6
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
15
15
16
16
17
17
18
18
19
19
19
19
20
20
20
20
20
20
20
20
21
21
21
21
21
21
21
21
22
23
23
24
24
25
25
26
26
27
28
29
30
30
30
30
31
31
31
31
32
33
33
34
34
36
37
38
39
40
40
41
42
42
43
44
44
44
45
45
45
46
46
46
47
47
49
50
58
58
59
60
61
62
63
64
64
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 2144792 | SCRAPER BLADE,TOP PART | |
| 2 | 2087323 | SCRAPER | |
| 3 | 2145002 | SCRAPER | |
| 4 | 2087211 | SCRAPER | |
| 5 | 2115545 | HOLDER | |
| 6 | 2076290 | STRIP | |
| 7 | 2087075 | LOCKING DEVICE | |
| 8 | 5131 | WASHER | |
| 9 | 5612 | SCREW | |
| 10 | 4302 | SCREW | |
| 11 | 5131 | WASHER | |
| 12 | 4300 | SCREW | |
| 13 | 5131 | WASHER | |
| 14 | 2109194 | BOLT | |
| 15 | 2149323 | PIPE | |
| 16 | 4826 | WASHER | |
| 17 | 5854 | SPLIT PIN | |
| 18 | 2103460 | HYDRAULIC CYLINDER W POSITION MEASURING | |
| 19 | 2130449 | BOLT | |
| 20 | 4826 | WASHER | |
| 21 | 5854 | SPLIT PIN | |
| 22 | 2232627 | HYDRAULIC CYLINDER | |
| 23 | 8939 | BOLT | |
| 24 | 5854 | SPLIT PIN | |
| 25 | 2079926 | BOLT | |
| 26 | 9855 | SPLIT PIN | |
| 27 | 2079366 | STOP | |
| 28 | 4300 | SCREW | |
| 29 | 107266 | WASHER | |
| 30 | 44638 | SCRAPER BLADE | |
| 31 | 44639 | SCRAPER BLADE | |
| 32 | 56731 | SCRAPER BLADE B 100 | |
| 33 | 56335 | SCRAPER BLADE B 145 R | |
| 34 | 56336 | SCRAPER BLADE B 145 L | |
| 36 | 4419 | SCREW | |
| 37 | 5269 | HEXAGON NUT | |
| 38 | 5274 | WASHER | |
| 39 | 2143495 | SEALING RUBBER | |
| 40 | 37573 | RAIL | |
| 41 | 4212 | SCREW | |
| 42 | 5275 | WASHER | |
| 43 | 5268 | HEXAGON NUT | |
| 44 | 137941 | LIMIT SWITCH | |
| 45 | 16998 | SWITCH CONNECTOR | |
| 46 | 17000 | ROLLER LEVER | |
| 47 | 5493 | SCREW | |
| 49 | 2126992 | DISTANCE PIECE | |
| 50 | 2118311 | PLATE | |
| 58 | 2113310 | SET OF SEALS | |
| 59 | 61960 | PIVOTING BEARING | |
| 60 | 61961 | LOCKING RING | |
| 61 | 1105 | GREASING NIPPLE | |
| 62 | 5494 | SCREW | |
| 63 | 5499 | SCREW | |
| 64 | 133385 | VALVE CARTRIDGE |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
