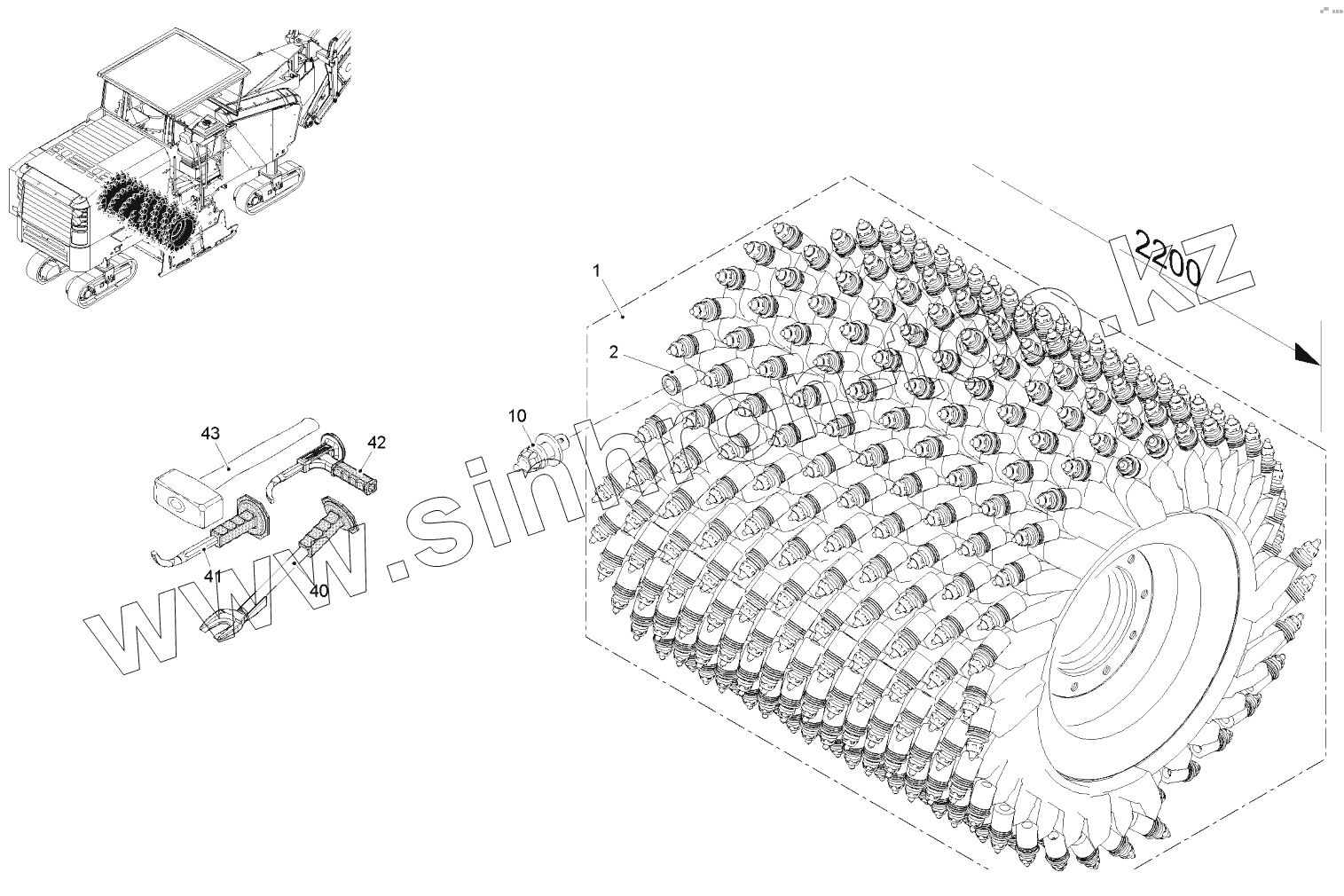

Каталог запасных частей к технике: WIRTGEN W200. FCS-DRUM FB2200 HT5 LA6X2

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано W1000L (2017) W1500 (2008) W1900 (2008) W200 (2018) W600DC (2017)

Схема > Не выбрано LIGHTING LEFT LIGHTING RIGHT WARNING DEVICE CHASSIS/ANCILLARY PARTS COVERS, REAR STORAGE COMPARTMENTS STICKERS LEFT STICKERS LEFT/RIGHT STICKERS RI: I STICKERS RI: II STICKERS REAR STICKERS OPERATOR'S STAND I STICKERS OPERATOR'S STAND II STICKERS CONVEYOR STICKERS LEFT (USA) STICKERS LEFT/RIGHTS (USA) STICKERS RI: I (USA) STICKERS RI: II (USA) STICKERS REAR (USA) STICKERS OPERAT.STAND I (USA) STICKERS OPERAT.STAND II (USA) STICKERS CONVEYOR (USA) ADDITIONAL WEIGHT 1700 KG STORAGE COMPARTMENT XXL LADDER LEFT LADDER RIGHT PEDESTAL PEDESTAL STANDING SEAT STORAGE COMPARTMENT MIRROR HANDRAIL, LEFT HANDRAIL, RIGHT CONTROL PANEL ANCILLARY PARTS CONTROL PANEL COVERS CONTROL PANELS LEFT AND RIGHT CONTROL PANEL, CENTER MACHINE DISPLAY BRACKET MACHINE DISPLAY PROTECTIVE ROOF CANOPY FRONT WINDOW CANOPY REAR WINDOW CANOPY - RAISE/LOWER HEATING HEATING SYSTEM OPERATORВґS SEAT LEFT OPERATORВґS SEAT RIGHT CABIN LADDER LEFT CABIN PLATFORM CABIN SUSPENSION CABIN - ANCILLARY PARTS CAB CABIN OPERATOR'S SEAT CABIN ARMREST LEFT CABIN ARMREST RIGHT CABIN HEATING CABIN AIR CONDITIONER CABIN MOVING UNIT DISPLACE CABIN TIPPING CABIN TURN CABIN CABIN MOUNTING PLATE CABIN CONTROL PANELS CABIN TERMINAL BOX RADIO/COMMUNICATION UNIT CABIN HANDRAIL CAMERA SYSTEM MIRROR HYDR.FOLD-AWAY FOLDING MIRRORS MILL.DRUM HOUSING FB2000/2200 MILLING DRUM HOUSING FB 1500 DRIVE - MILLING DRUM CLUTCH ACTIVATOR CLUTCH COVERS COUPLING GEARBOX I GEARBOX II BELT TENSIONER UNIT DRIVE BELT TENSIONER DRIVE BELT COVER BELT-DRIVE CASE BASE PART DRUM BEARING FB2000/2200 DRUM BEARING FB1500 SCRAPER FB2000 SCRAPER FB2200 SCRAPER FB1500 SCRAPER RAISE/LOWER SCRAPER OPEN/CLOSE SIDE PLATE FB2000/2200 SIDE PLATE FB1500 SIDE PLATE UP/DOWN MATERIAL DEPRESSOR MATERIAL DEPRESSOR EXTENSION DRUM FB2000 HT22 LA15 DRUM FB2200 HT22 LA15 DRUM FB1500 HT22 LA15 MILLING DRUM FB2000 HT22 LA25 MILLING DRUM FB2000 HT22 LA8 MILLING DRUM FB2000 HT5 LA6X2 DRUM FB2200 HT22 LA25 DRUM FB2200 HT22 LA8 DRUM FB2200 HT5 LA6X2 DRUM FB1500 HT5 LA6X2 FCS-DRUM HOUSING FB600-1200 FCS-DRUM BEARING FB600-1200 FCS-DRUM BEARING FB2000/2200 FCS-SCRAPER FB600-1200 FCS-SCRAPER FB600-1200 UP/DOWN FCS-SIDE PLATE FB600-1200 FCS-GEAR OIL COOL. FB600-1200 FCS-DRUM FB2000 HT22 LA15 FCS-DRUM FB2000 HT22 LA25 FCS-DRUM FB2000 HT22 LA18 FCS-DRUM FB2000 HT22 LA8 FCS-DRUM FB2000 HT5 LA6X2 FCS-DRUM FB2200 HT22 LA15 FCS-DRUM FB2200 HT22 LA25 FCS-DRUM FB2200 HT22 LA18 FCS-DRUM FB2200 HT22 LA8 FCS-DRUM FB2200 HT5 LA6X2 FCS-DRUM FB2000 HT22 LA15 PKD FCS-DRUM FB2200 HT22 LA15 PKD FCS-DRUM FB1200 HT22 LA15 FCS-DRUM FB900 HT22 LA15 FCS-DRUM FB600 HT22 LA15 DRUM ROTATION DEVICE DRUM ROTATING DEVICE ACTIVATOR AUXILIARY SEAT ASSEMBLY AID PICK EXTRACTOR PNEUMATIC PICK EXTRACTOR, HYDRAULIC ENGINE ANCILLARY PARTS INTAKE AIR FUEL TANK FUEL SUPPLY EXHAUST SYSTEM COMBINED COOLER FAN DRIVE COVER COMBINED COOLER COOLING SYSTEM-AIR COOLING SYSTEM-WATER COOLING SYSTEM EXPANS.VESSEL ENGINE COVER ENGINE HOOD ANCILLARY PARTS SOUND PROTECTION ENGINE HOOD UP/DOWN ENGINE COVER, REAR COVER BOTTOM FCS COVERS BOTTOM FB1200 COVERS BOTTOM FB1500-2200 ENGINE DIAGNOSTIC CONTR. PANEL DIESEL FILLER PUMP PUMP SPLITTER GEARBOX / CLUTCH PUMP SPLITTER GEARBOX FUNCTIONAL OVERVIEW - HYDR. PUMPS PUMP STATION CYL.FUNCTIONS-PUMP CONNECTORS CYL.FUNCT./VALVE BLOCKS FRONT CYL.FUNCT./VALVE BLOCKS REAR HYDRAULIC AGGREGAT RETURN FLOWS HYDRAULIC OIL TANK MAINTENANCE VOLTAGE SUPPLY JUMP-START CONNECTION POINT CONTROL UNIT BRACKET CONTROL UNIT CONTROL UNIT / EMERGENCY STOP ELECTRICAL CABINET ANC.PARTS CENTRAL BOARD ELECTR.CAB. MICRO CONTROLLER ELECTRICAL CABINET COVER GENERATOR DRIVE COVER GENERATOR CABLE HARNESSES CHASSIS, FRONT LEFT CHASSIS, FRONT RIGHT 1 CHASSIS, FRONT RIGHT 2 CHASSIS, REAR CHASSIS, REAR LEFT CHASSIS, REAR RIGHT OPERATORВґS STAND MAIN CONTROL PANEL, CENTRE MAIN CONTROL PANEL, LEFT MAIN CONTROL PANEL, RIGHT OPERATOR'S STAND - FOOTSTEP LIGHTING CABIN LIGHTING FOOTSTEP MILLING UNIT DRUM ROTATION DEVICE MOTOR ENGINE COVER PUMP SPLITTER GEARBOX CONTROL 1 CONTROL 2 BATTERY TCU STARTER PLUGGABLE SERVICE INTERFACE UNDERCARRIAGE, RH UNDERCARRIAGE, LH DISCHARGE CONVEYOR DISCHARGE CONVEYOR, FRONT RIGHT LEVEL PRO 2S LEVEL PRO - SUPPLY LINE OPERATOR'S STAND LEVEL PRO, FRONT LEVEL PRO, CENTRE LEVEL PRO, REAR LEVEL PRO - OPERATORВґS STAND HEIGHT ADJ. CRAWLERS FRONT HEIGHT ADJUST.-CRAWLER REAR HEIGHT ADJUSTMENT FRONT HEIGHT ADJUSTMENT REAR VALVE BLOCK CRAWLER UNIT FRONT CRAWLER UNIT REAR CRAWLER-UNIT PUMP CONNECTORS ADVANCE DRIVE SYSTEM, FRONT ADVANCE DRIVE SYSTEM, REAR BRAKE SYSTEM CHAIN TENSIONER STEERING FRONT STEERING REAR STEERING SYSTEM, FRONT STEERING SYSTEM REAR PRIMARY CONVEYOR SUSPENSION PRIMARY CONVEYOR ANCILL.PARTS PRIMARY CONVEYOR - SIDE PARTS PRIM.CONVEYOR MATERIAL GUIDING PRIMARY CONVEYOR - UP / DOWN DISCHARGE CONVEYOR - SUPPORT DISCHARGE CONVEYOR ANCILL. PTS DISCHARGE CONVEYOR SEALINGS DISCHARGE CONVEYOR CHUTE PUMP CONNECTORS CONVEYOR DRIVE DISCHARGE CONVEYOR - UP / DOWN DISCHARGE CONVEYOR, SLEW FOLDING CONVEYOR I FOLDING CONVEYOR II FOLDING CONVEYOR SEALINGS FOLDING CONVEYOR FOLDING VCS DISCHARGE CONVEYOR VCS VENTILATOR DRIVE VCS SPRINKLING CONVEYOR SUPPORT AUTO. GRADE & SLOPE CONTROL SCANNER MILLING DRUM SONIC-SKI SCANNING MULTIPLEX UNIT LEVELLING ARM LEVELING BOOM, SHIFTING LEVELLING ARM TERMINAL BOX LEVELLING LASER/3D LEVELLING 3D CONTROL UNIT LATERAL TILT WATER TANK WATER PUMP WATER PUMP - DRIVE SPRINKLING DR.UNIT FB2000/2200 SPRINKLING MILL.DR.UNIT FB1500 SPRINKLING - PRIMARY CONVEYOR SPRINKLING - DISCHARGE CONVEYOR WATER FILLING REAR WATER FILLING PUMP WATER FILLER PUMP - DRIVE FCS-SPRINKLER DRUM FB600-1200 HIGH-PRESSURE CLEANER HIGH - PRESSURE CLEANER - DRIVE COMPRESSED AIR SYSTEM FILTER ELEMENTS-ENGINE (500H,..) FILTER INSERTS-HYDR. (500H,..) FILTER INSERTS-HYDR.(1000H,..) FILTER ELEMENTS - CABIN (1000H,...) TOOLS KEYS SET DRESSER UNIT-MOVABLE BEARING HYDRAULIC ACCESSORIES O-RING SET OIL DIAGNOSTIC SET NO.3 HYDRAULIC INSTRUMENT CASE SERVICE MASTER TEST KIT VACUUM-PUMP EMERGENCY KIT ELECTRICAL SERVICE CASE ELECTR.MEASURING/TOOLS CASE SERVICE SET - BELT REPAIR

1

2

10

40

41

42

43

Позиция на иллюстрации	Заводской номер детали		Название детали
1	2119190		DRUM
2	194362		PICK SUPPORT HT5 PLUS
10	2541605		STANDARD PICKS
40	28812		TOOL PULLER
41	45275		EJECTOR DRIFT FOR PICKS
42	193685		EJECTOR DRIFT FOR PICKS
43	5442		COPPER HAMMER

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
