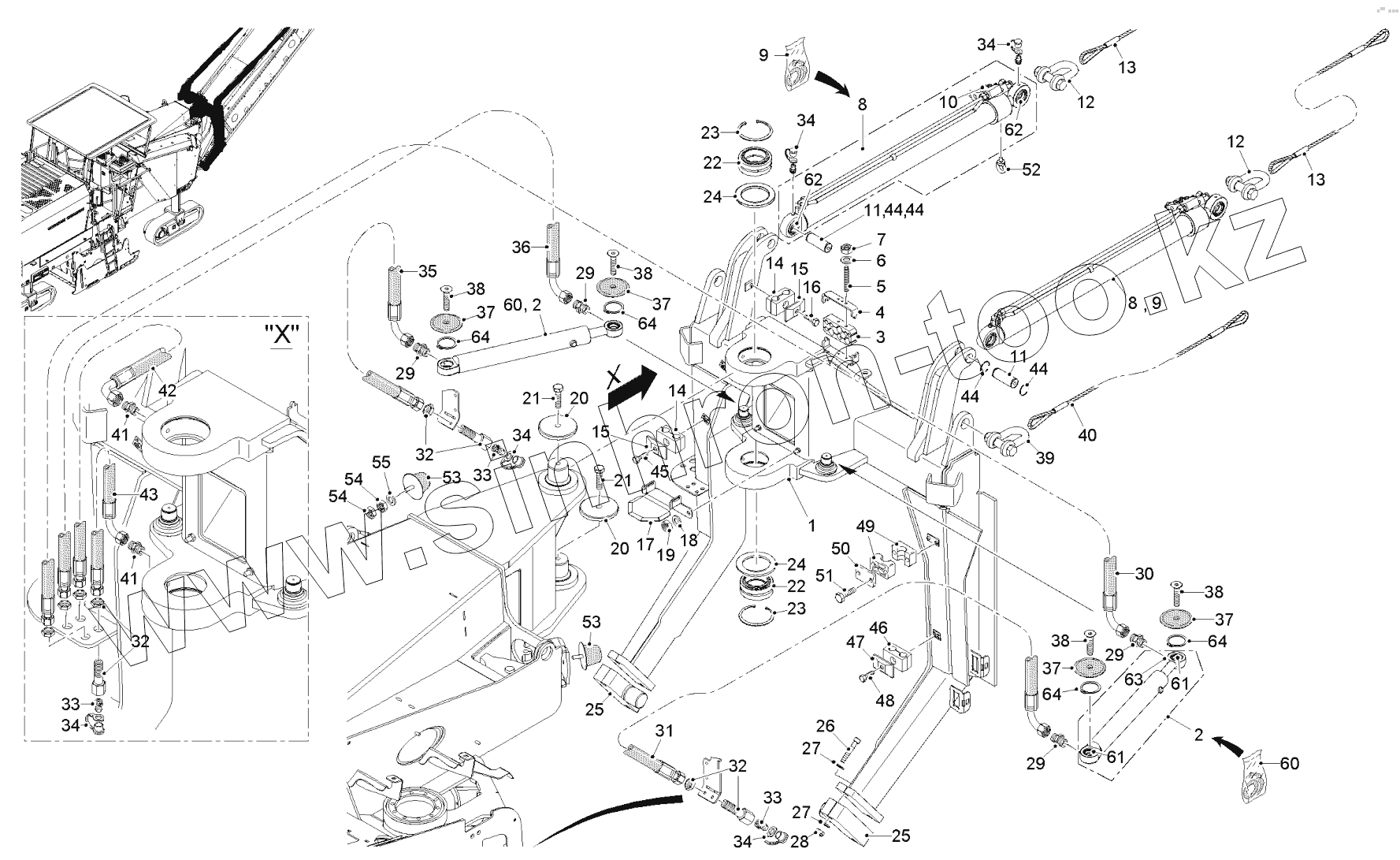

Каталог запасных частей к технике: WIRTGEN W200. DISCHARGE CONVEYOR - SUPPORT
1
2
2
3
4
5
6
7
8
8
9
9
10
11
11
12
12
13
13
14
14
15
15
16
17
18
19
20
20
21
21
22
22
23
23
24
24
25
25
26
27
27
28
29
29
29
29
30
31
32
32
32
33
33
33
34
34
34
34
34
35
36
37
37
37
37
38
38
38
38
39
40
41
41
42
43
44
44
44
44
45
46
47
48
49
50
51
52
53
53
54
54
55
60
60
61
61
62
62
63
64
64
64
64
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 2083097 | SLEWING BRACKET | |
| 2 | 2102174 | HYDRAULIC CYLINDER | |
| 3 | 2124316 | CLAMP | |
| 4 | 182523 | BRACKET | |
| 5 | 184647 | THREADED PIN | |
| 6 | 5206 | WASHER | |
| 7 | 12247 | HEXAGON NUT | |
| 8 | 2102181 | HYDRAULIC CYLINDER | |
| 9 | 2111857 | SET OF SEALS | |
| 10 | 2123357 | OVER-CENTER VALVE | |
| 11 | 2103346 | BOLT | |
| 12 | 19546 | SHACKLE | |
| 13 | 137675 | WIRE ROPE | |
| 14 | 158946 | PIPE CLIP | |
| 15 | 4136 | COVER PLATE | |
| 16 | 5950 | SCREW | |
| 17 | 2113071 | GUIDING SHEET | |
| 18 | 5274 | WASHER | |
| 19 | 5269 | HEXAGON NUT | |
| 20 | 4081 | WASHER | |
| 21 | 4359 | SCREW | |
| 22 | 20345 | PIVOTING BEARING | |
| 23 | 71354 | LOCKING RING | |
| 24 | 47594 | WASHER | |
| 25 | 2083118 | MOUNTING FIXTURE | |
| 26 | 16765 | SCREW | |
| 27 | 5158 | WASHER | |
| 28 | 20562 | HEXAGON NUT | |
| 29 | 164603 | MALE STUD COUPLING | |
| 30 | 2122567 | HYDRAULIC HOSE | |
| 31 | 2122566 | HYDRAULIC HOSE | |
| 32 | 42930 | BULKHEAD COUPLING | |
| 33 | 1105 | GREASING NIPPLE | |
| 34 | 11181 | CAP | |
| 35 | 2122566 | HYDRAULIC HOSE | |
| 36 | 2089884 | HYDRAULIC HOSE | |
| 37 | 2106353 | PROTECTIVE CAP | |
| 38 | 6068 | SCREW | |
| 39 | 13828 | SHACKLE | |
| 40 | 2097967 | WIRE ROPE | |
| 41 | 4998 | MALE STUD COUPLING | |
| 42 | 198395 | HYDRAULIC HOSE | |
| 43 | 2112588 | HYDRAULIC HOSE | |
| 44 | 10278 | LOCKING RING | |
| 45 | 5944 | SCREW | |
| 46 | 2060739 | PIPE CLIP | |
| 47 | 126124 | TOP COVER | |
| 48 | 4182 | SCREW | |
| 49 | 4116 | PIPE CLIP | |
| 50 | 4129 | TOP COVER | |
| 51 | 5947 | SCREW | |
| 52 | 4838 | SCREW | |
| 53 | 51489 | RUBBER BUFFER | |
| 54 | 5134 | HEXAGON NUT | |
| 55 | 5131 | WASHER | |
| 60 | 2111748 | SET OF SEALS | |
| 61 | 89741 | PIVOTING BEARING | |
| 62 | 2068998 | ROD END BALL JOINT | |
| 63 | 1105 | GREASING NIPPLE | |
| 64 | 10278 | LOCKING RING |
