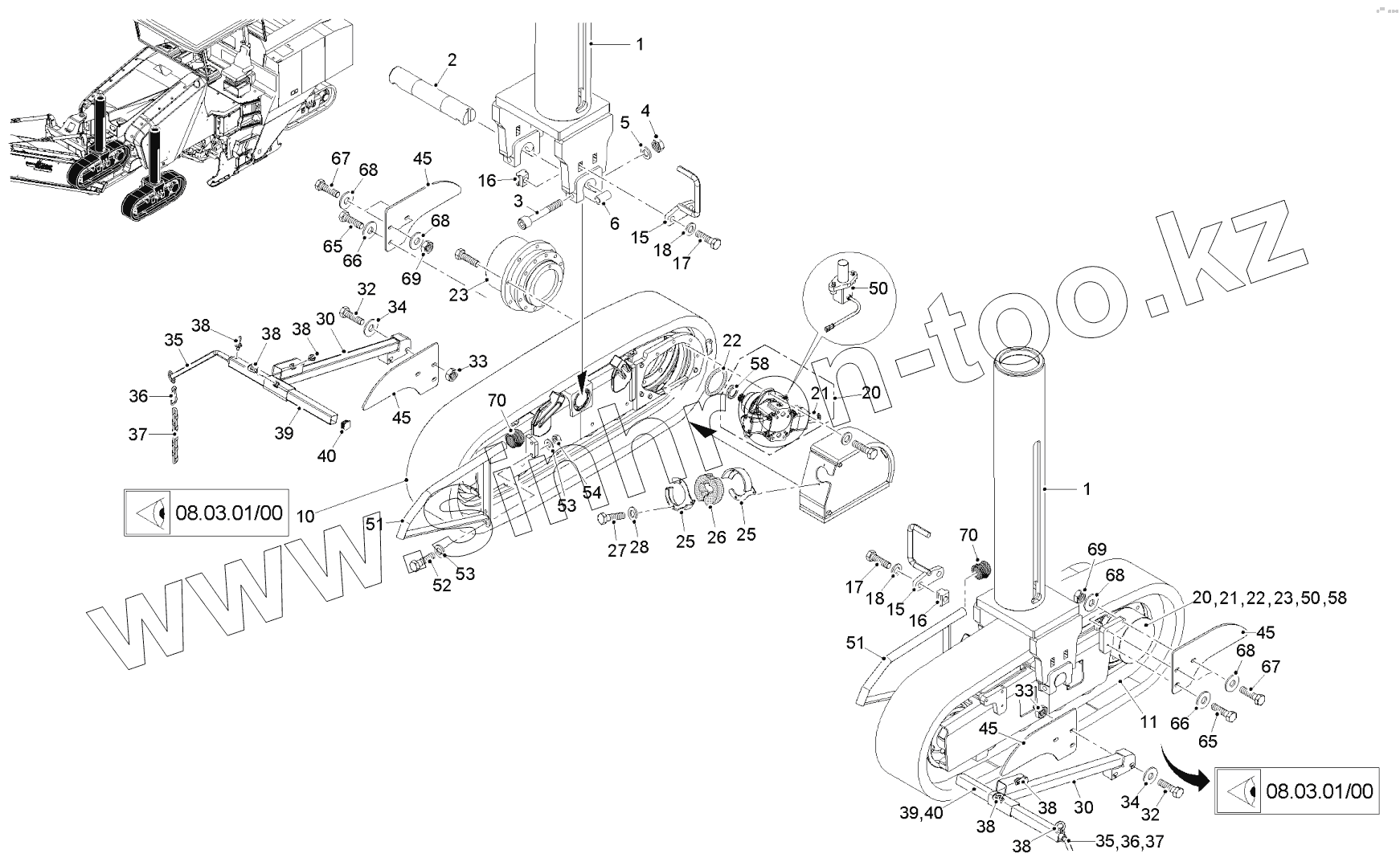

Каталог запасных частей к технике: WIRTGEN W200. CRAWLER UNIT FRONT
1
1
2
3
4
5
6
10
11
15
15
16
16
17
17
18
18
20
20
21
21
22
22
23
23
25
25
26
27
28
30
30
32
32
33
33
34
34
35
35
36
36
37
37
38
38
38
38
38
38
39
39
40
40
45
45
45
45
50
50
51
51
52
53
53
54
58
58
65
65
66
66
67
67
68
68
68
68
69
69
70
70
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 2112047 | UNDERCARRIAGE BRACKET | |
| 2 | 2111923 | BOLT | |
| 3 | 2046507 | SCREW | |
| 4 | 36105 | HEXAGONAL NUT | |
| 5 | 5158 | WASHER | |
| 6 | 2118221 | PIPE | |
| 10 | 2109899 | CRAWLER-UNIT | |
| 11 | 2109900 | CRAWLER-UNIT | |
| 15 | 2121147 | HOLDER | |
| 16 | 48763 | T-SLOT NUT | |
| 17 | 4293 | SCREW | |
| 18 | 5131 | WASHER | |
| 20 | 2077526 | HYDRAULIC MOTOR | |
| 21 | 2110471 | SOLENOID COIL | |
| 22 | 8040 | O-RING SEAL | |
| 23 | 2077529 | GEARBOX | |
| 25 | 2441786 | MOUNTING FIXTURE | |
| 26 | 2123955 | CLIP | |
| 27 | 4168 | SCREW | |
| 28 | 5206 | WASHER | |
| 30 | 2123911 | HOLDER | |
| 32 | 4241 | SCREW | |
| 33 | 5269 | HEXAGON NUT | |
| 34 | 51958 | WASHER | |
| 35 | 71827 | LEVEL STICK | |
| 36 | 10744 | SPRING HOOK | |
| 37 | 72439 | CHAIN | |
| 38 | 4911 | SCREW | |
| 39 | 36134 | GUIDE TUBE | |
| 40 | 42314 | PLUG | |
| 45 | 2115978 | CARRIER | |
| 50 | 2150952 | HALL SENSOR 8V-36V DC | |
| 51 | 2135712 | DEFLECTOR | |
| 52 | 5616 | SCREW | |
| 53 | 5269 | HEXAGON NUT | |
| 54 | 5274 | WASHER | |
| 58 | 80607 | SHAFT SEAL | |
| 65 | 4219 | SCREW | |
| 66 | 51958 | WASHER | |
| 67 | 5616 | SCREW | |
| 68 | 51958 | WASHER | |
| 69 | 5269 | HEXAGON NUT | |
| 70 | 183110 | LAMELLAR PLUG |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
