CONTROL UNIT / EMERGENCY STOP
Каталог запасных частей к технике: WIRTGEN W200. CONTROL UNIT / EMERGENCY STOP
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
W1000L (2017)
W1500 (2008)
W1900 (2008)
W200 (2018)
W600DC (2017)
Схема
>
Не выбрано
LIGHTING LEFT
LIGHTING RIGHT
WARNING DEVICE
CHASSIS/ANCILLARY PARTS
COVERS, REAR
STORAGE COMPARTMENTS
STICKERS LEFT
STICKERS LEFT/RIGHT
STICKERS RI: I
STICKERS RI: II
STICKERS REAR
STICKERS OPERATOR'S STAND I
STICKERS OPERATOR'S STAND II
STICKERS CONVEYOR
STICKERS LEFT (USA)
STICKERS LEFT/RIGHTS (USA)
STICKERS RI: I (USA)
STICKERS RI: II (USA)
STICKERS REAR (USA)
STICKERS OPERAT.STAND I (USA)
STICKERS OPERAT.STAND II (USA)
STICKERS CONVEYOR (USA)
ADDITIONAL WEIGHT 1700 KG
STORAGE COMPARTMENT XXL
LADDER LEFT
LADDER RIGHT
PEDESTAL
PEDESTAL
STANDING SEAT
STORAGE COMPARTMENT
MIRROR
HANDRAIL, LEFT
HANDRAIL, RIGHT
CONTROL PANEL ANCILLARY PARTS
CONTROL PANEL COVERS
CONTROL PANELS LEFT AND RIGHT
CONTROL PANEL, CENTER
MACHINE DISPLAY BRACKET
MACHINE DISPLAY
PROTECTIVE ROOF
CANOPY FRONT WINDOW
CANOPY REAR WINDOW
CANOPY - RAISE/LOWER
HEATING
HEATING SYSTEM
OPERATORВґS SEAT LEFT
OPERATORВґS SEAT RIGHT
CABIN LADDER LEFT
CABIN PLATFORM
CABIN SUSPENSION
CABIN - ANCILLARY PARTS
CAB
CABIN OPERATOR'S SEAT
CABIN ARMREST LEFT
CABIN ARMREST RIGHT
CABIN HEATING
CABIN AIR CONDITIONER
CABIN MOVING UNIT
DISPLACE CABIN
TIPPING CABIN
TURN CABIN
CABIN MOUNTING PLATE
CABIN CONTROL PANELS
CABIN TERMINAL BOX
RADIO/COMMUNICATION UNIT
CABIN HANDRAIL
CAMERA SYSTEM
MIRROR HYDR.FOLD-AWAY
FOLDING MIRRORS
MILL.DRUM HOUSING FB2000/2200
MILLING DRUM HOUSING FB 1500
DRIVE - MILLING DRUM
CLUTCH ACTIVATOR
CLUTCH COVERS
COUPLING
GEARBOX I
GEARBOX II
BELT TENSIONER UNIT
DRIVE BELT TENSIONER
DRIVE BELT COVER
BELT-DRIVE CASE BASE PART
DRUM BEARING FB2000/2200
DRUM BEARING FB1500
SCRAPER FB2000
SCRAPER FB2200
SCRAPER FB1500
SCRAPER RAISE/LOWER
SCRAPER OPEN/CLOSE
SIDE PLATE FB2000/2200
SIDE PLATE FB1500
SIDE PLATE UP/DOWN
MATERIAL DEPRESSOR
MATERIAL DEPRESSOR EXTENSION
DRUM FB2000 HT22 LA15
DRUM FB2200 HT22 LA15
DRUM FB1500 HT22 LA15
MILLING DRUM FB2000 HT22 LA25
MILLING DRUM FB2000 HT22 LA8
MILLING DRUM FB2000 HT5 LA6X2
DRUM FB2200 HT22 LA25
DRUM FB2200 HT22 LA8
DRUM FB2200 HT5 LA6X2
DRUM FB1500 HT5 LA6X2
FCS-DRUM HOUSING FB600-1200
FCS-DRUM BEARING FB600-1200
FCS-DRUM BEARING FB2000/2200
FCS-SCRAPER FB600-1200
FCS-SCRAPER FB600-1200 UP/DOWN
FCS-SIDE PLATE FB600-1200
FCS-GEAR OIL COOL. FB600-1200
FCS-DRUM FB2000 HT22 LA15
FCS-DRUM FB2000 HT22 LA25
FCS-DRUM FB2000 HT22 LA18
FCS-DRUM FB2000 HT22 LA8
FCS-DRUM FB2000 HT5 LA6X2
FCS-DRUM FB2200 HT22 LA15
FCS-DRUM FB2200 HT22 LA25
FCS-DRUM FB2200 HT22 LA18
FCS-DRUM FB2200 HT22 LA8
FCS-DRUM FB2200 HT5 LA6X2
FCS-DRUM FB2000 HT22 LA15 PKD
FCS-DRUM FB2200 HT22 LA15 PKD
FCS-DRUM FB1200 HT22 LA15
FCS-DRUM FB900 HT22 LA15
FCS-DRUM FB600 HT22 LA15
DRUM ROTATION DEVICE
DRUM ROTATING DEVICE ACTIVATOR
AUXILIARY SEAT
ASSEMBLY AID
PICK EXTRACTOR PNEUMATIC
PICK EXTRACTOR, HYDRAULIC
ENGINE ANCILLARY PARTS
INTAKE AIR
FUEL TANK
FUEL SUPPLY
EXHAUST SYSTEM
COMBINED COOLER
FAN DRIVE
COVER COMBINED COOLER
COOLING SYSTEM-AIR
COOLING SYSTEM-WATER
COOLING SYSTEM EXPANS.VESSEL
ENGINE COVER
ENGINE HOOD ANCILLARY PARTS
SOUND PROTECTION
ENGINE HOOD UP/DOWN
ENGINE COVER, REAR
COVER BOTTOM
FCS COVERS BOTTOM FB1200
COVERS BOTTOM FB1500-2200
ENGINE DIAGNOSTIC CONTR. PANEL
DIESEL FILLER PUMP
PUMP SPLITTER GEARBOX / CLUTCH
PUMP SPLITTER GEARBOX
FUNCTIONAL OVERVIEW - HYDR. PUMPS
PUMP STATION
CYL.FUNCTIONS-PUMP CONNECTORS
CYL.FUNCT./VALVE BLOCKS FRONT
CYL.FUNCT./VALVE BLOCKS REAR
HYDRAULIC AGGREGAT
RETURN FLOWS
HYDRAULIC OIL TANK
MAINTENANCE
VOLTAGE SUPPLY
JUMP-START CONNECTION POINT
CONTROL UNIT BRACKET
CONTROL UNIT
CONTROL UNIT / EMERGENCY STOP
ELECTRICAL CABINET ANC.PARTS
CENTRAL BOARD
ELECTR.CAB. MICRO CONTROLLER
ELECTRICAL CABINET COVER
GENERATOR DRIVE
COVER GENERATOR
CABLE HARNESSES
CHASSIS, FRONT LEFT
CHASSIS, FRONT RIGHT 1
CHASSIS, FRONT RIGHT 2
CHASSIS, REAR
CHASSIS, REAR LEFT
CHASSIS, REAR RIGHT
OPERATORВґS STAND
MAIN CONTROL PANEL, CENTRE
MAIN CONTROL PANEL, LEFT
MAIN CONTROL PANEL, RIGHT
OPERATOR'S STAND - FOOTSTEP LIGHTING
CABIN LIGHTING FOOTSTEP
MILLING UNIT
DRUM ROTATION DEVICE
MOTOR
ENGINE COVER
PUMP SPLITTER GEARBOX
CONTROL 1
CONTROL 2
BATTERY
TCU
STARTER PLUGGABLE
SERVICE INTERFACE
UNDERCARRIAGE, RH
UNDERCARRIAGE, LH
DISCHARGE CONVEYOR
DISCHARGE CONVEYOR, FRONT RIGHT
LEVEL PRO 2S
LEVEL PRO - SUPPLY LINE OPERATOR'S STAND
LEVEL PRO, FRONT
LEVEL PRO, CENTRE
LEVEL PRO, REAR
LEVEL PRO - OPERATORВґS STAND
HEIGHT ADJ. CRAWLERS FRONT
HEIGHT ADJUST.-CRAWLER REAR
HEIGHT ADJUSTMENT FRONT
HEIGHT ADJUSTMENT REAR
VALVE BLOCK
CRAWLER UNIT FRONT
CRAWLER UNIT REAR
CRAWLER-UNIT
PUMP CONNECTORS
ADVANCE DRIVE SYSTEM, FRONT
ADVANCE DRIVE SYSTEM, REAR
BRAKE SYSTEM
CHAIN TENSIONER
STEERING FRONT
STEERING REAR
STEERING SYSTEM, FRONT
STEERING SYSTEM REAR
PRIMARY CONVEYOR SUSPENSION
PRIMARY CONVEYOR ANCILL.PARTS
PRIMARY CONVEYOR - SIDE PARTS
PRIM.CONVEYOR MATERIAL GUIDING
PRIMARY CONVEYOR - UP / DOWN
DISCHARGE CONVEYOR - SUPPORT
DISCHARGE CONVEYOR ANCILL. PTS
DISCHARGE CONVEYOR SEALINGS
DISCHARGE CONVEYOR CHUTE
PUMP CONNECTORS
CONVEYOR DRIVE
DISCHARGE CONVEYOR - UP / DOWN
DISCHARGE CONVEYOR, SLEW
FOLDING CONVEYOR I
FOLDING CONVEYOR II
FOLDING CONVEYOR SEALINGS
FOLDING CONVEYOR FOLDING
VCS DISCHARGE CONVEYOR
VCS VENTILATOR DRIVE
VCS SPRINKLING
CONVEYOR SUPPORT
AUTO. GRADE & SLOPE CONTROL
SCANNER MILLING DRUM
SONIC-SKI SCANNING
MULTIPLEX UNIT
LEVELLING ARM
LEVELING BOOM, SHIFTING
LEVELLING ARM TERMINAL BOX
LEVELLING LASER/3D
LEVELLING 3D CONTROL UNIT
LATERAL TILT
WATER TANK
WATER PUMP
WATER PUMP - DRIVE
SPRINKLING DR.UNIT FB2000/2200
SPRINKLING MILL.DR.UNIT FB1500
SPRINKLING - PRIMARY CONVEYOR
SPRINKLING - DISCHARGE CONVEYOR
WATER FILLING REAR
WATER FILLING PUMP
WATER FILLER PUMP - DRIVE
FCS-SPRINKLER DRUM FB600-1200
HIGH-PRESSURE CLEANER
HIGH - PRESSURE CLEANER - DRIVE
COMPRESSED AIR SYSTEM
FILTER ELEMENTS-ENGINE (500H,..)
FILTER INSERTS-HYDR. (500H,..)
FILTER INSERTS-HYDR.(1000H,..)
FILTER ELEMENTS - CABIN (1000H,...)
TOOLS
KEYS SET
DRESSER UNIT-MOVABLE BEARING
HYDRAULIC ACCESSORIES
O-RING SET
OIL DIAGNOSTIC SET NO.3
HYDRAULIC INSTRUMENT CASE
SERVICE MASTER TEST KIT
VACUUM-PUMP
EMERGENCY KIT
ELECTRICAL SERVICE CASE
ELECTR.MEASURING/TOOLS CASE
SERVICE SET - BELT REPAIR
1
2
3
4
4
5
6
7
7
8
9
10
11

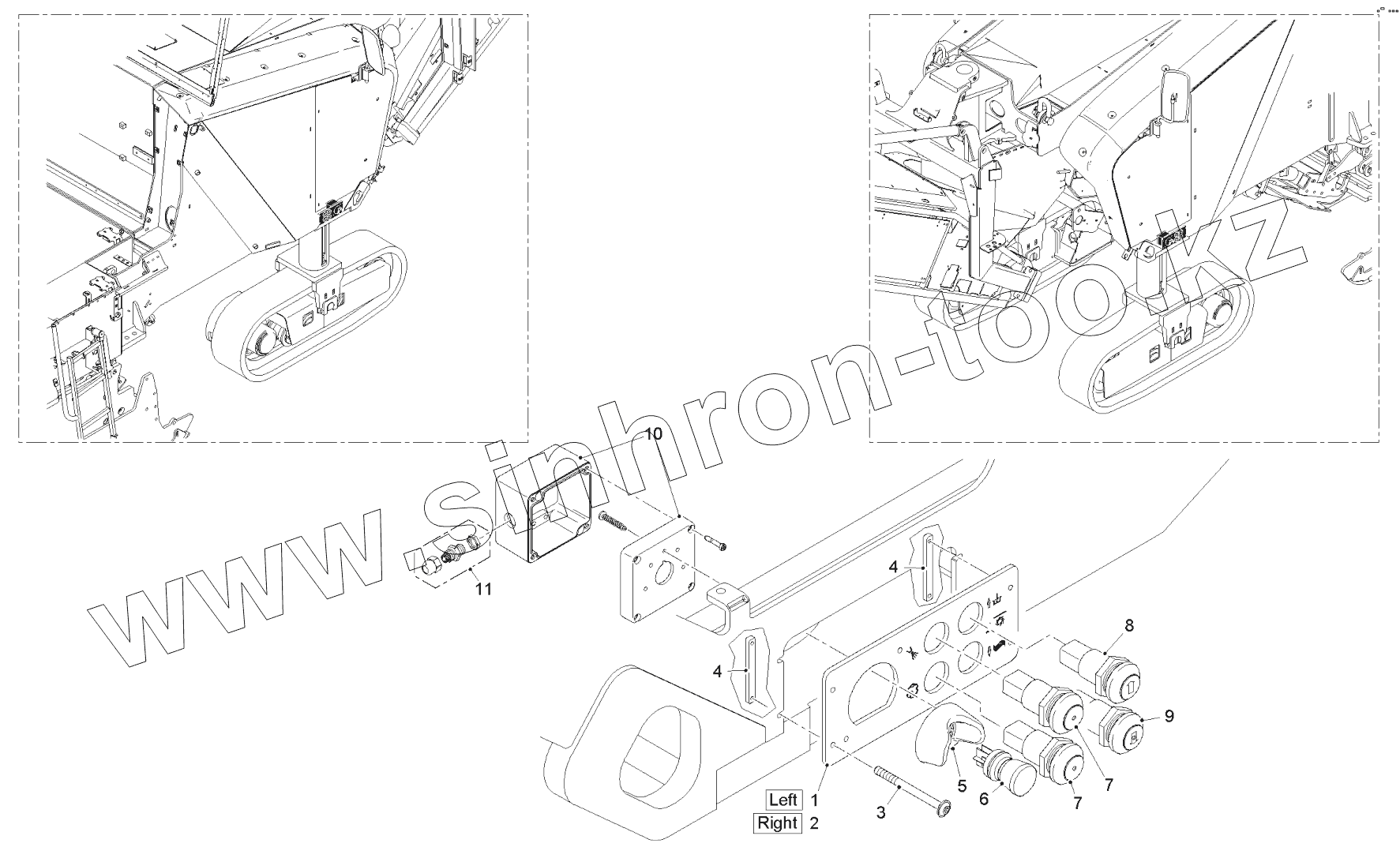

Позиция на иллюстрации
Заводской номер детали
Название детали
1
2232490
INSTRUMENT BOARD
2
2213830
INSTRUMENT BOARD
3
2236226
SCREW
4
2221183
STRIP
5
2221006
PROTECTION
6
2141682
EMERGENCY STOP SWITCH
7
2100335
PUSH-BUTTON
8
2100337
PUSH-BUTTON
9
2100336
PUSH-BUTTON
10
2220481
HOUSING
11
137395
CABLE JOINT
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
