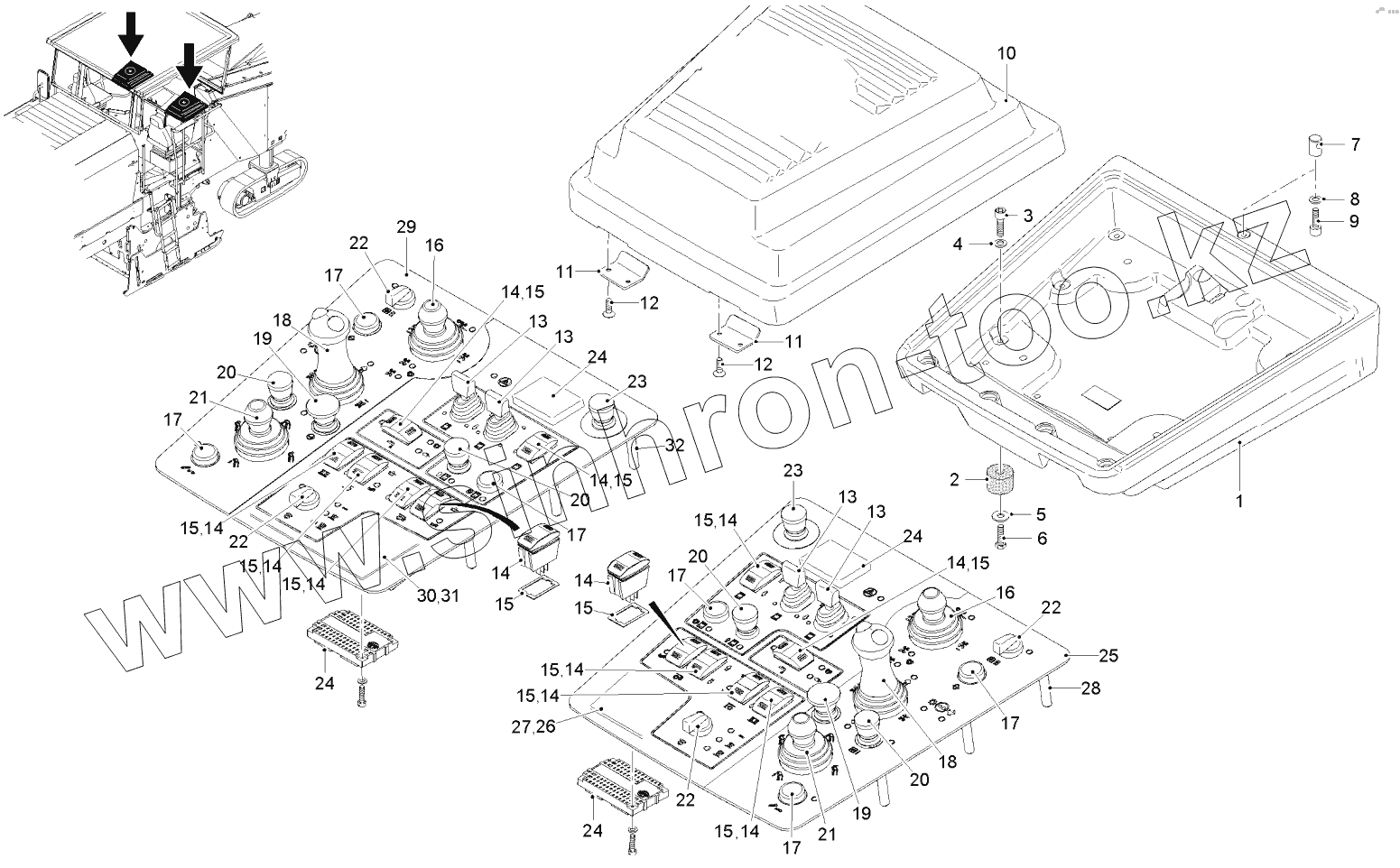

Каталог запасных частей к технике: WIRTGEN W200. CONTROL PANELS LEFT AND RIGHT
1
2
3
4
5
6
7
8
9
10
11
11
12
12
13
13
13
13
14
14
14
14
14
14
14
14
14
14
14
14
15
15
15
15
15
15
15
15
15
15
15
15
16
16
17
17
17
17
17
17
18
18
19
19
20
20
20
20
21
21
22
22
22
22
23
23
24
24
24
24
25
26
27
28
29
30
31
32
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 2129131 | HOUSING | |
| 2 | 2119976 | RUBBER BUFFER | |
| 3 | 36394 | SCREW | |
| 4 | 5206 | WASHER | |
| 5 | 51957 | WASHER | |
| 6 | 4178 | SCREW | |
| 7 | 2131135 | TENON | |
| 8 | 5800 | WASHER | |
| 9 | 6076 | SCREW | |
| 10 | 2129134 | VANDALISM PROTECTION | |
| 11 | 2131126 | LOCKING DEVICE | |
| 12 | 6068 | SCREW | |
| 13 | 194444 | CONTROL STICK | |
| 14 | 2093466 | BUTTON | |
| 15 | 2416489 | SEALING | |
| 16 | 2137091 | CONTROL STICK | |
| 17 | 2099844 | PUSH BUTTON | |
| 18 | 2289521 | CONTROL STICK | |
| 19 | 2112464 | MUSHROOM-HEAD BUTTON | |
| 20 | 2099852 | PUSH BUTTON | |
| 21 | 2141676 | CONTROL STICK | |
| 22 | 2470410 | BUTTON | |
| 23 | 2141682 | EMERGENCY STOP SWITCH | |
| 24 | 2172113 | CAN NODE | |
| 25 | 2200061 | INSTRUMENT BOARD | |
| 26 | 2200066 | PRINTED CIRCUIT BOARD | |
| 27 | 2200069 | SET OF CABLES | |
| 28 | 2200075 | INSTALLATION PARTS | |
| 29 | 2200060 | INSTRUMENT BOARD | |
| 30 | 2200065 | PRINTED CIRCUIT BOARD | |
| 31 | 2200068 | SET OF CABLES | |
| 32 | 2200074 | INSTALLATION PARTS |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
