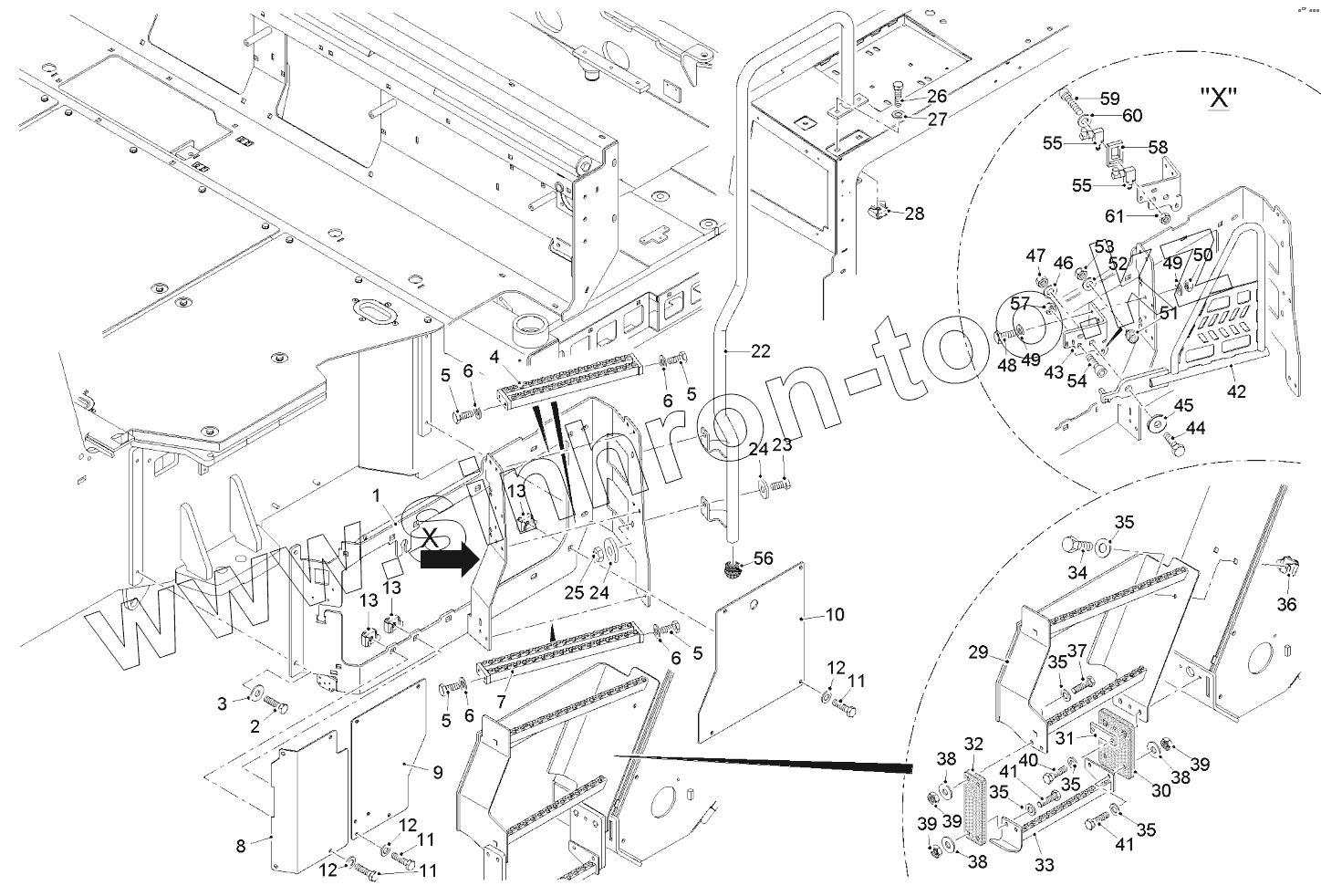

Каталог запасных частей к технике: WIRTGEN W200. CABIN LADDER LEFT
1
2
3
4
5
5
5
5
6
6
6
6
7
8
9
10
11
11
11
12
12
12
13
13
13
22
23
24
24
25
26
27
28
29
30
31
32
33
34
35
35
35
35
35
36
37
38
38
38
39
39
39
40
41
41
42
43
44
45
46
47
48
49
49
50
51
52
53
54
55
55
56
57
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 2154557 | HOLDER | |
| 2 | 4218 | SCREW | |
| 3 | 51958 | WASHER | |
| 4 | 2133335 | STEP | |
| 5 | 4218 | SCREW | |
| 6 | 5274 | WASHER | |
| 7 | 2133333 | STEP | |
| 8 | 2154571 | COVER | |
| 9 | 2145151 | COVER | |
| 10 | 2127342 | COVER | |
| 11 | 4219 | SCREW | |
| 12 | 5274 | WASHER | |
| 13 | 2112628 | NUT | |
| 22 | 2160919 | HANDRAIL REAR | |
| 23 | 4220 | SCREW | |
| 24 | 51958 | WASHER | |
| 25 | 5269 | HEXAGON NUT | |
| 26 | 4220 | SCREW | |
| 27 | 5274 | WASHER | |
| 28 | 2112628 | NUT | |
| 29 | 2122504 | TREAD PLATE | |
| 30 | 2118197 | RUBBER | |
| 31 | 30253 | STRIP | |
| 32 | 2118196 | RUBBER | |
| 33 | 2118192 | STEP | |
| 34 | 4219 | SCREW | |
| 35 | 5274 | WASHER | |
| 36 | 2112628 | NUT | |
| 37 | 4221 | SCREW | |
| 38 | 5275 | WASHER | |
| 39 | 5269 | HEXAGON NUT | |
| 40 | 4222 | SCREW | |
| 41 | 4221 | SCREW | |
| 42 | 2161254 | BARRIER | |
| 43 | 2163461 | CONSOLE | |
| 44 | 4362 | SCREW | |
| 45 | 2101361 | WASHER | |
| 46 | 4815 | WASHER | |
| 47 | 36105 | HEXAGONAL NUT | |
| 48 | 4181 | SCREW | |
| 49 | 5206 | WASHER | |
| 50 | 12247 | HEXAGON NUT | |
| 51 | 120710 | RUBBER BUFFER | |
| 52 | 5206 | WASHER | |
| 53 | 12247 | HEXAGON NUT | |
| 54 | 4416 | SCREW | |
| 55 | 118459 | POSITION SWITCH | |
| 56 | 183110 | LAMELLAR PLUG | |
| 57 | 5269 | HEXAGON NUT |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
