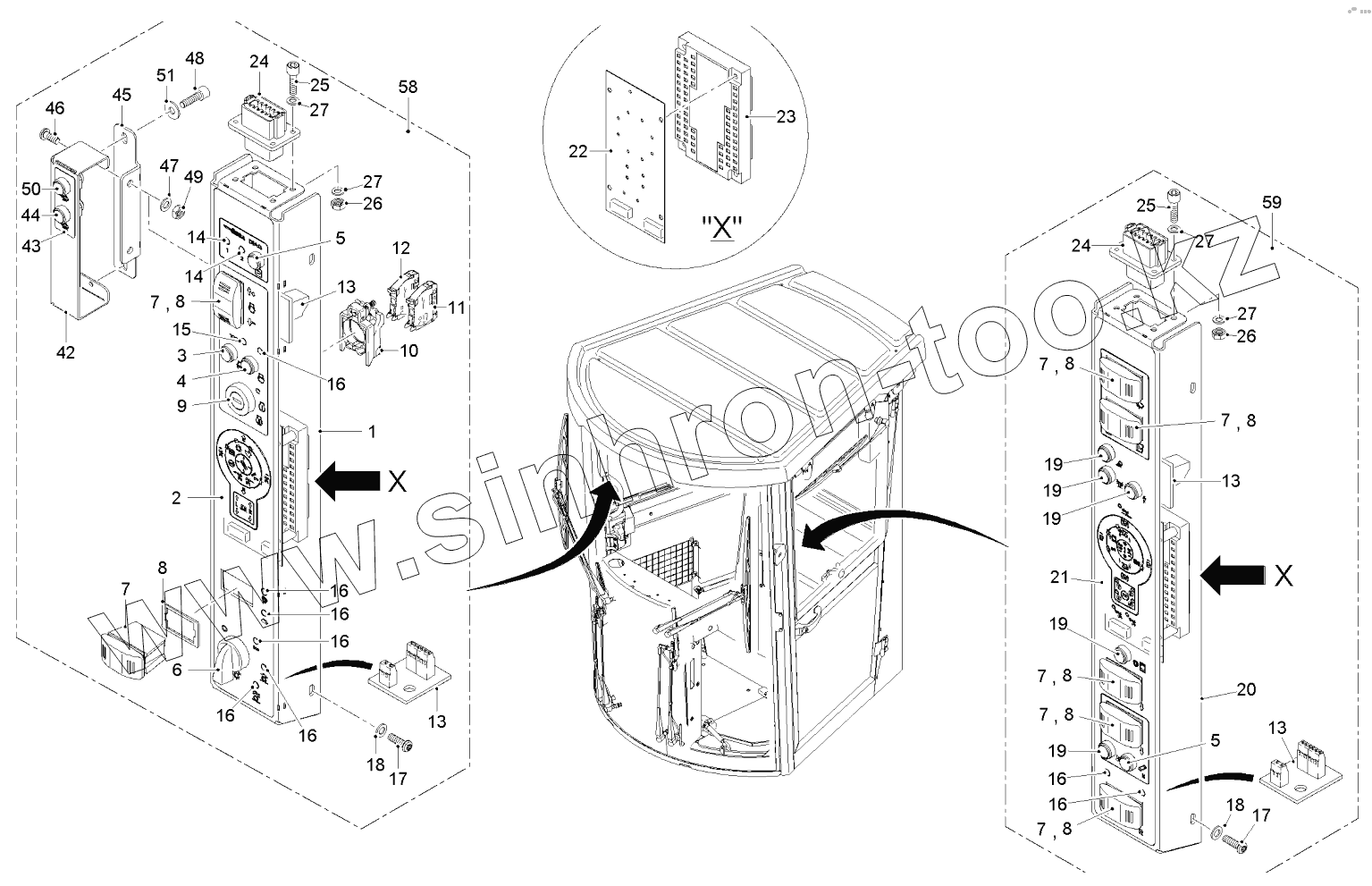

Каталог запасных частей к технике: WIRTGEN W200. CABIN CONTROL PANELS
1
2
3
4
5
5
6
7
7
7
7
7
7
7
8
8
8
8
8
8
8
9
10
11
12
13
13
13
13
14
14
15
16
16
16
16
16
16
16
16
17
17
18
18
19
19
19
19
19
20
21
22
23
24
24
25
25
26
26
27
27
27
27
42
43
44
45
46
47
48
49
50
51
58
59
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 2153502 | OPERATING PANEL | |
| 2 | 2152169 | STICKER | |
| 3 | 2168467 | PUSHBUTTON | |
| 4 | 2168468 | PUSHBUTTON | |
| 5 | 2168462 | PUSHBUTTON | |
| 6 | 2470410 | BUTTON | |
| 7 | 2093466 | BUTTON | |
| 8 | 2093471 | SEALING | |
| 9 | 144265 | FRONT ELEMENT | |
| 10 | 144288 | FLANGE | |
| 11 | 144287 | AUXILIARY SWITCH | |
| 12 | 144286 | AUXILIARY SWITCH | |
| 13 | 2162818 | CIRCUIT BOARD | |
| 14 | 117531 | LED-INDICATOR | |
| 15 | 117533 | LED-INDICATOR | |
| 16 | 117534 | LED-INDICATOR | |
| 17 | 176493 | SCREW | |
| 18 | 5801 | WASHER | |
| 19 | 2168464 | PUSHBUTTON | |
| 20 | 2153501 | OPERATING PANEL | |
| 21 | 2152176 | STICKER | |
| 22 | 2154176 | CIRCUIT BOARD | |
| 23 | 2172113 | CAN NODE | |
| 24 | 2132507 | CONNECTOR SHELL | |
| 25 | 138270 | SCREW | |
| 26 | 141948 | HEXAGONAL NUT | |
| 27 | 31632 | WASHER | |
| 42 | 2184519 | OPERATING PANEL | |
| 43 | 2184532 | STICKER | |
| 44 | 2181296 | PUSHBUTTON | |
| 45 | 2184516 | STRAP | |
| 46 | 176493 | SCREW | |
| 47 | 5801 | WASHER | |
| 48 | 5499 | SCREW | |
| 49 | 32783 | HEXAGON NUT | |
| 50 | 2168462 | PUSHBUTTON | |
| 51 | 170508 | WASHER | |
| 58 | 2150428 | ASSEMBLY GROUP | |
| 59 | 2150427 | ASSEMBLY GROUP |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
