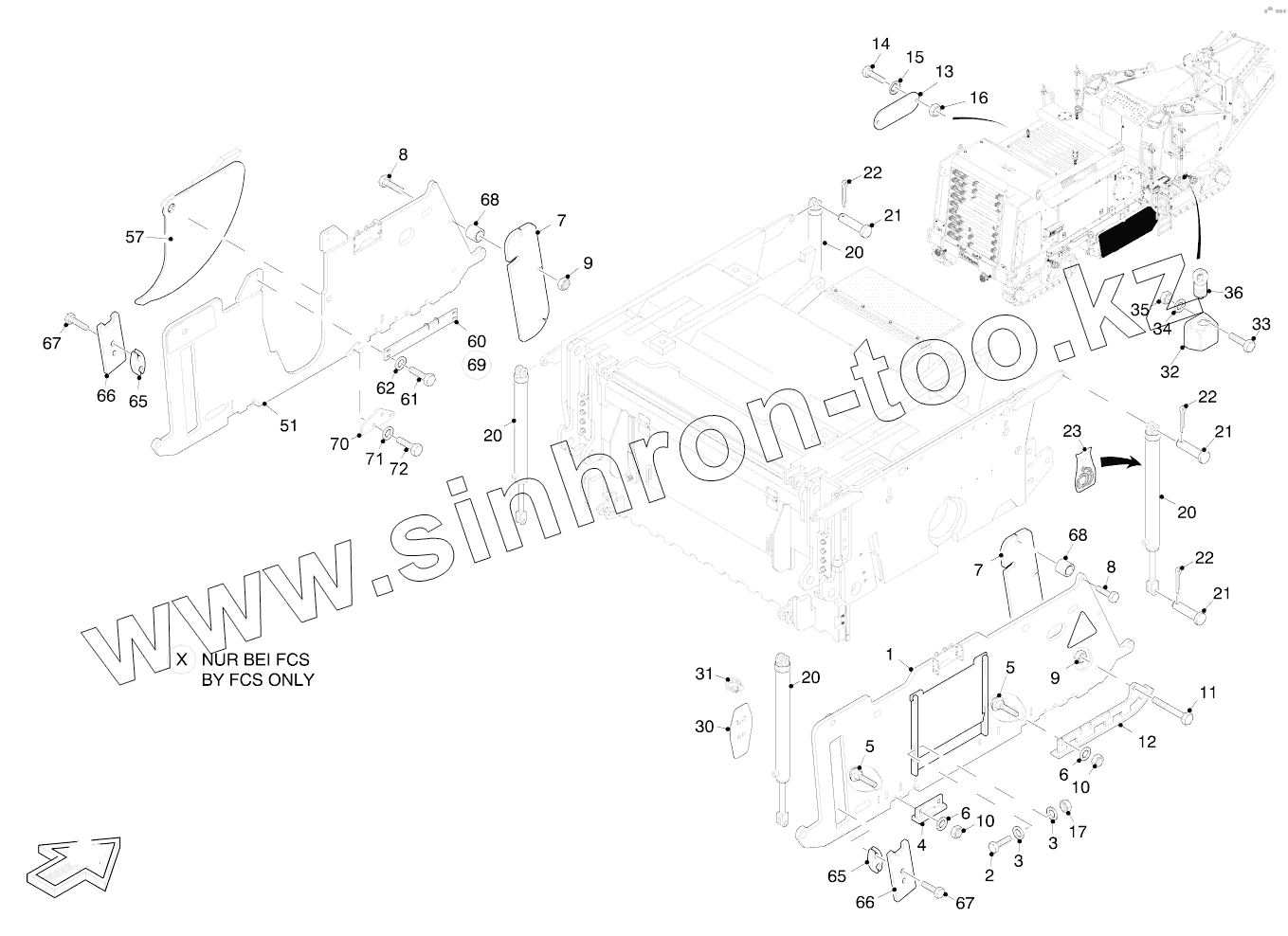

Каталог запасных частей к технике: WIRTGEN W1900. SIDE PLATE FB2000
1
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
12
13
14
15
16
17
20
20
20
20
21
21
21
22
22
22
23
30
31
32
33
34
35
36
51
51
57
60
61
62
65
65
66
66
67
67
68
68
69
70
71
72
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 183910 | SIDE PLATE | |
| 2 | 4220 | SCREW | |
| 3 | 5274 | WASHER | |
| 4 | 113001 | PROTECTOR SKID 40X180 | |
| 4 | 2069177 | PROTECTOR SKID | |
| 5 | 148982 | SCREW | |
| 6 | 39994 | WASHER | |
| 7 | 141749 | WEAR PLATE | |
| 8 | 4314 | SCREW | |
| 9 | 5151 | HEXAGON NUT | |
| 10 | 5192 | HEXAGON NUT | |
| 11 | 4316 | SCREW | |
| 12 | 155630 | PROTECTOR SKID 50X625 | |
| 13 | 146384 | COVER | |
| 14 | 5941 | SCREW | |
| 15 | 5803 | WASHER | |
| 16 | 5810 | HEXAGON NUT | |
| 17 | 5269 | HEXAGON NUT | |
| 20 | 163871 | HYDRAULIC CYLINDER | |
| 21 | 1322 | BOLT | |
| 22 | 9855 | SPLIT PIN | |
| 23 | 55812 | SET OF SEALS | |
| 30 | 155720 | COVER | |
| 31 | 148157 | HOSE CLAMP | |
| 32 | 35436 | FLASHLIGHT | |
| 33 | 19168 | SCREW | |
| 34 | 31632 | WASHER | |
| 35 | 20431 | HEXAGON NUT | |
| 36 | 10183 | BULB | |
| 51 | 184106 | SIDE PLATE | |
| 51 | 2064178 | SIDE PLATE | |
| 57 | 141888 | SLIDE | |
| 60 | 58436 | REINFORCEMENT | |
| 61 | 4219 | SCREW | |
| 62 | 5275 | WASHER | |
| 65 | 57718 | SPACER PLATE | |
| 66 | 57719 | COVER PLATE | |
| 67 | 4618 | SCREW | |
| 68 | 183370 | BUSHING | |
| 69 | 183128 | REINFORCEMENT | |
| 70 | 2064258 | BURNT PART | |
| 71 | 5274 | WASHER | |
| 72 | 4219 | SCREW |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
