Каталог запасных частей к технике: WIRTGEN W1900. DRUM TURNING JIG
1
2
3
3
4
5
6
7
8
9
10
10
11
12
13
13
14
14
15
16
17
18
19
20
21
21
22
23
23
24
24
24
25
25
26
26
27
28
29
30
30
30
31
32
32
33
34
35
36
37
38
40
41
41
42
43
46
47
48
49
50
51
51
52
53
54
55
56
57
58
58
59
59
60
60
61
61
62
63
64
65
66
66
67
68
69
70
71
72
73
74
75

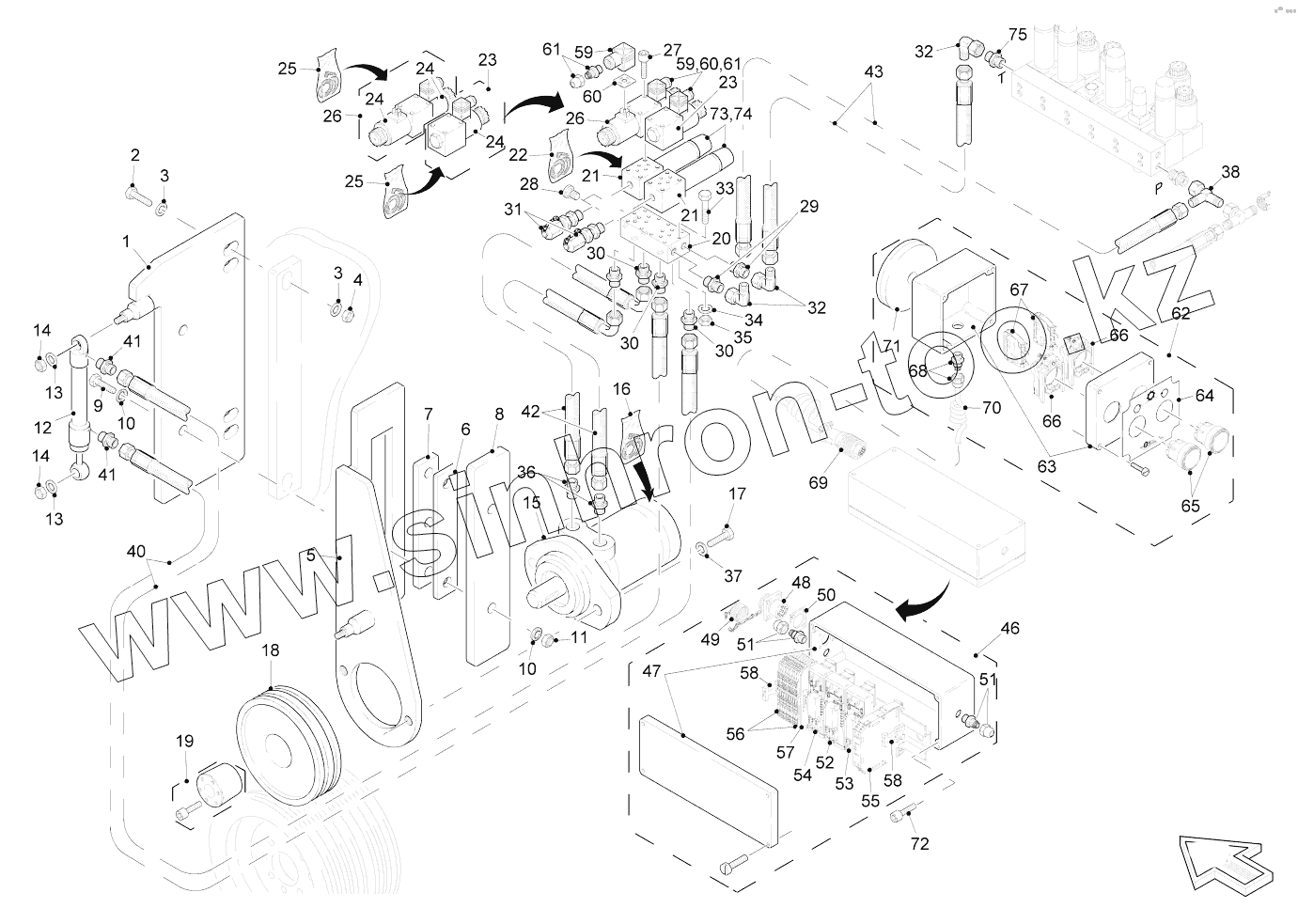

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 144661 | SUPPORT | |
| 2 | 4266 | SCREW | |
| 3 | 39994 | WASHER | |
| 4 | 5192 | HEXAGON NUT | |
| 5 | 144657 | CONSOLE | |
| 6 | 144760 | RAIL | |
| 7 | 144761 | RAIL | |
| 8 | 144660 | RAIL | |
| 9 | 4225 | SCREW | |
| 10 | 5271 | WASHER | |
| 11 | 5269 | HEXAGON NUT | |
| 12 | 85844 | HYDRAULIC CYLINDER | |
| 13 | 5206 | WASHER | |
| 14 | 12247 | HEXAGON NUT | |
| 15 | 1781 | HYDRAULIC MOTOR | |
| 16 | 18253 | SET OF SEALS | |
| 17 | 4262 | SCREW | |
| 18 | 136836 | WHEEL OF BROACH | |
| 19 | 136835 | TENSIONING ASSEMBLY | |
| 20 | 31087 | MANIFOLD PLATE | |
| 21 | 114158 | PRESSURE REDUCTION VALVE | |
| 22 | 14747 | SET OF SEALS | |
| 23 | 114135 | DIRECTIONAL VALVE | |
| 24 | 114160 | SOLENOID | |
| 25 | 114161 | SET OF SEALS | |
| 26 | 114131 | DIRECTIONAL VALVE | |
| 27 | 5491 | SCREW | |
| 28 | 7164 | SCREWED SEALING PLUG | |
| 29 | 1499 | MALE STUD COUPLING | |
| 30 | 30243 | MALE STUD COUPLING | |
| 31 | 4643 | SCREWED JOINT | |
| 32 | 31428 | ADJUSTABLE MALE STUD ELBOW | |
| 33 | 6067 | SCREW | |
| 34 | 5800 | WASHER | |
| 35 | 46115 | HEXAGON NUT | |
| 36 | 133548 | MALE STUD COUPLING | |
| 37 | 5195 | WASHER | |
| 38 | 3929 | ADJ.MALE STUD TEE-STUD BARREL | |
| 40 | 92442 | HYDRAULIC HOSE | |
| 41 | 5930 | MALE STUD COUPLING | |
| 42 | 96199 | HYDRAULIC HOSE | |
| 43 | 15603 | HYDRAULIC HOSE | |
| 46 | 136258 | PLUG BOX | |
| 47 | 137064 | HOUSING | |
| 48 | 24064 | PLUG SOCKET | |
| 49 | 24065 | DUST CAP | |
| 50 | 24066 | SEAL | |
| 51 | 21989 | CABLE JOINT | |
| 52 | 136831 | TIMER RELAY | |
| 53 | 35212 | TIMER RELAY | |
| 54 | 29023 | RELAY | |
| 55 | 22500 | TERMINAL BLOCK | |
| 56 | 117286 | TERMINAL BLOCK | |
| 57 | 117287 | PLATE | |
| 58 | 22954 | END STOP BRACKET | |
| 59 | 131097 | FEMALE PLUG | |
| 60 | 21041 | SEAL | |
| 61 | 6912 | CABLE JOINT | |
| 62 | 136260 | REMOTE CONTROL | |
| 63 | 137063 | HOUSING | |
| 64 | 137062 | INSTRUMENT BOARD | |
| 65 | 144274 | FRONT ELEMENT | |
| 66 | 144288 | FLANGE | |
| 67 | 144286 | AUXILIARY SWITCH | |
| 68 | 21989 | CABLE JOINT | |
| 69 | 24063 | PLUG | |
| 70 | 6402 | SPIRAL CABLE | |
| 71 | 117675 | MAGNETIC BRACKET | |
| 72 | 6077 | SCREW | |
| 73 | 45207 | NUT | |
| 74 | 45209 | ADJUSTMENT | |
| 75 | 1499 | MALE STUD COUPLING |
