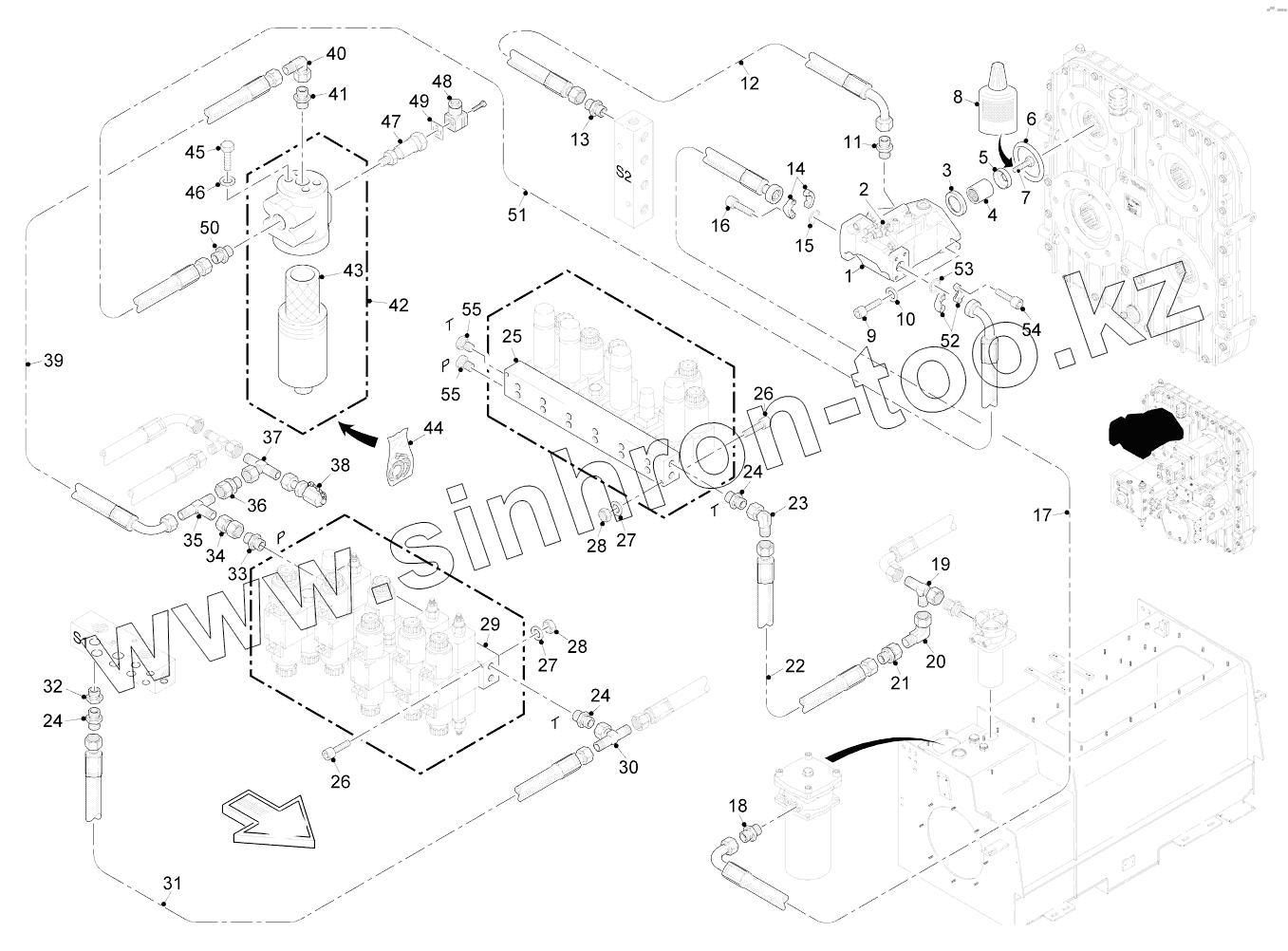

Каталог запасных частей к технике: WIRTGEN W1900. CYLINDER FUNCTIONS

Тип техники

Марка

Модель

Схема

1

2

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

24

24

25

26

26

27

27

28

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

55

Позиция на иллюстрации	Заводской номер детали		Название детали
1	123347		HYDRAULIC PUMP
2	129384		CONTROL VALVE
2	2081215		CONTROL VALVE
3	129382		SHAFT SEAL
4	50432		PROFILED BUSH
5	97214		WASHER
6	13391		O-RING SEAL
7	97218		SCREW
8	9995		ADHESIVE
9	4429		SCREW
10	16584		WASHER
11	2776		MALE STUD COUPLING
12	49474		HYDRAULIC HOSE
13	2762		MALE STUD COUPLING
14	4143		SAE FLANGE
15	42658		O-RING SEAL
16	7865		SCREW
17	144210		HYDRAULIC HOSE
18	2802		MALE STUD COUPLING
19	85965		ADJ.MALE STUD TEE-STUD BARREL
20	1119		ADJUSTABLE MALE STUD ELBOW
21	3368		REDUCING COUPLING
22	17401		HYDRAULIC HOSE
23	1116		ADJUSTABLE MALE STUD ELBOW
24	2766		MALE STUD COUPLING
25	35443		MANIFOLD PLATE
26	6117		SCREW
27	68267		WASHER
28	46115		HEXAGON NUT
29	124397		MANIFOLD PLATE
30	45205		ADJUSTABLE EQUAL TEE
31	80677		HYDRAULIC HOSE
32	3088		REDUCING ADAPTOR
33	10853		MALE STUD COUPLING
34	51007		STRAIGHT COUPLING
35	3363		EQUAL TEE
36	3940		REDUCING COUPLING
37	19567		ADJUSTABLE EQUAL TEE
38	4646		MEASURING CONNECTOR
39	10891		HYDRAULIC HOSE
40	3036		ADJUSTABLE MALE STUD ELBOW
41	2767		MALE STUD COUPLING
42	27841		OIL FILTER CPL.
43	30294		HYDRAULIC OIL FILTER
44	30892		SET OF SEALS
45	4219		SCREW
46	51958		WASHER
47	23888		DIFF.PRESSURE SWITCH
48	54379		FEMALE PLUG
49	21041		SEAL
50	2764		MALE STUD COUPLING
51	144206		HYDRAULIC HOSE
52	4142		SAE FLANGE
53	10018		O-RING SEAL
54	7866		SCREW
55	7164		SCREWED SEALING PLUG

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
