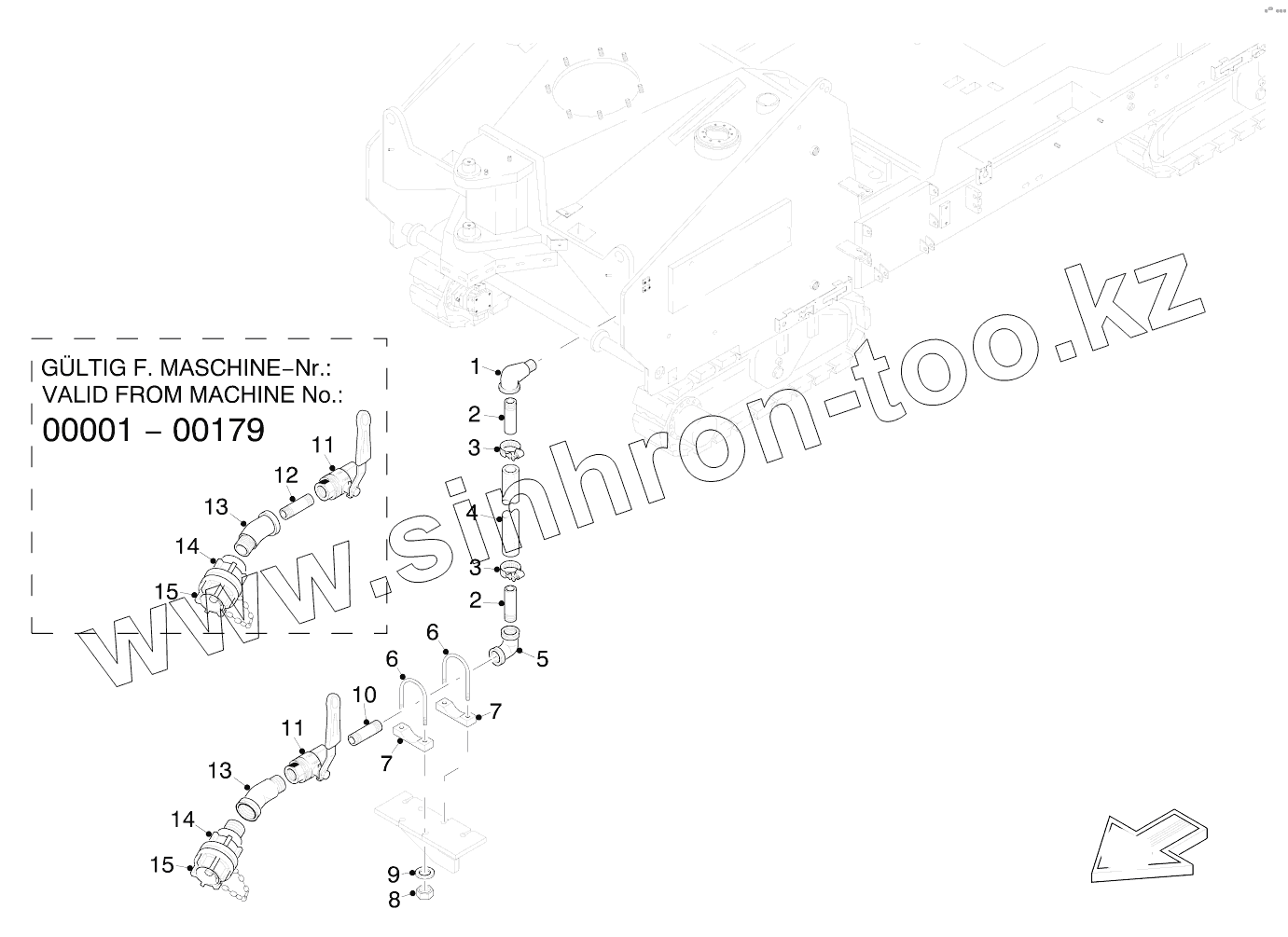

Каталог запасных частей к технике: WIRTGEN W1500. WATER FILLING FRONT
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
W1000L (2017)
W1500 (2008)
W1900 (2008)
W200 (2018)
W600DC (2017)
Схема
>
Не выбрано
LIGHTS/WARNINGS
CHASSIS/ANCILLARY PARTS
ELECTRICAL CABINET
ELECTRICAL CABINET
ELEC.CABINET-MOUNTING PLATE I
ELEC.CABINET-MOUNTING PLATE I
ELEC.CABINET-MOUNTING PLATE I
ELEC.CABINET-MOUNTING PLATE II
ELEC.CABINET-MOUNTING PLATE II
ELEC.CABINET-MOUNTING PLATE II
CONTROL PANEL I
CONTROL PANEL I
CONTROL PANEL II
CONTROL PANEL II
CONTROL PANEL III
CONTROL PANEL III
CONTROL PANEL IV
CONTROL PANEL IV
COVERS
OPERATOR'S STATION AND SEAT
LADDER LEFT/RIGHT
LADDER LEFT/RIGHT
CANOPY
CANOPY
CANOPY
CANOPY
CONOPY UP/DOWN
CONOPY UP/DOWN
MIRROR
ADDITIONAL MIRROR
MILLING DRUM SUSPENSION FB1300
MILLING DRUM SUSPENSION FB1500
MILLING DRUM SUSPENSION FB1500
MILLING DRUM SUSPENSION FB2000
MILLING DRUM SUSPENSION FB2000
DRUM FLAP UP/DOWN
DRUM BEARING FB1300/1500
DRUM BEARING FB2000
DRUM BEARING FB2000
FRONT BEARING FB1300
FRONT BEARING FB1500
FRONT BEARING FB2000
GEARBOX
GEARBOX
BELT-DRIVE CASE FB1300/1500
BELT-DRIVE CASE FB2000
DRIVE MILL.DRUM FB1300/1500
DRIVE MILL.DRUM FB1300/1500
DRIVE MILL.DRUM FB1300/1500
DRIVE MILL.DRUM FB2000
DRIVE MILL.DRUM FB2000
DRIVE MILL.DRUM FB2000
BELT TENSION.UNIT FB1300/1500
BELT TENSION.UNIT FB1300/1500
BELT TENSIONER UNIT FB2000
BELT TENSIONER UNIT FB2000
CLUTCH FB1300/1500
CLUTCH FB1300/1500
CLUTCH FB2000
CLUTCH FB2000
SIDE PLATE FB1300
SIDE PLATE FB1500
SIDE PLATE FB1500
SIDE PLATE FB2000
SIDE PLATE FB2000
SIDE PLATE LIFTING/LOWER
SIDE PLATE LIFTING/LOWER
DRUM FB1320 HT3 LA15 AW3
DRUM FB1320 HT3 LA8 AW3
DRUM FB1500 HT3 LA15 AW3
DRUM FB1500 HT11 LA15 AW3
DRUM FB2000 HT3 LA15 AW3
DRUM FB2000 HT11 LA15 AW3
DRUM FB2000 HT3 LA8 AW3
DRUM FB2000 HT11 LA8 AW3
DRUM FB2000 HT5 LA6X2 AW4
DEPRESSOR
MILLING DRUM SUSPENSION FCS
DRUM FLAP UP/DOWN FCS
MILLING UNIT FB600 FCS
MILLING UNIT FB900 FCS
MILLING UNIT FB1000 FCS
MILLING UNIT FB1200 FCS
MILLING UNIT FB1500 FCS
MILLING UNIT FB2000 HT3 LA15
MILL.UNIT FB2000 HT11 LA15
MILL.UNIT FB2000 HT11 LA8
DRUM BEARING FCS
DRUM BEARING FCS
SIDE PLATE FCS
MOUNTING TOOL FCS
DRUM TURNING JIG
AUXILIARY SEAT
LOCK BOX FOR BUCKET
POWER UNIT
FUEL SUPPLY
FUEL SUPPLY
EXHAUST SILENCER + AIR FILTER
COMBINED COOLER
AIR COOLING
COOLING SYSTEM
SOUNDPROOFING UPPER PART/REAR
SOUNDPROOFING RIGHT / LEFT
DIESEL-FUEL FILLING PUMP
CYCLONE DUST PRECIPITATOR
PUMP SPLITTER GEARB./CLUTCH
PUMP SPLITTER GEARBOX
CYLINDER FUNCTIONS
FAN DRIVE
ADVANCE DRIVE
CONVEYOR DRIVE
WATER PUMP
RETURN LINES
RETURN LINES
BATTERY/STARTER/ALTERNATOR
BRACKET CONTR.UNITS/TERM.BOXES
BRACKET CONTR.UNITS/TERM.BOXES
CONTROL UNIT FRONT LEFT
CONTROL UNIT FRONT RIGHT
CONTROL UNIT REAR LEFT
CONTROL UNIT REAR RIGHT
HEIGHT ADJUSTMENT FRONT
HEIGHT ADJUSTMENT REAR
CRAWLERS
ADVANCE DRIVE
CRAWLER UNIT
ADVANCE DRIVE - LEAKAGE
SWITCHING SYSTEM
BRAKE SYS./EMERG.TOWING DEVICE
BRAKE SYS./EMERG.TOWING DEVICE
STEERING UNIT
STEERING, FRONT
STEERING, REAR
STEERING, REAR
PRIMARY CONVEYOR
PRIMARY CONVEYOR - COVERS
DISCHARGE CONVEYOR
DISCHARGE CONVEYOR - COVERS
CONVEYOR DRIVE
CONVEYOR DRIVE
DISCHARGE CONVEYOR RAISE/LOWER
DISCHARGE CONVEYOR - SLEWING
FOLDING CONVEYOR
FOLDING CONVEYOR - COVERS
FOLDING THE HYDR.FOLDING CONV.
CONVEYOR SUPPORT
CONVEYOR SUPPORT
MILLING DEPTH REGULATOR
MILLING DEPTH REGULATOR
PLUG BOX SENSOR FCS
TRACER MILLING WIDTH 1300/1500
TRACER MILLING WIDTH 2000MM
TRACER MILLING WIDTH FB2000 LH
ULTRASONICS
MULTIPLEX UNIT
LEVEL PALPATER
SONIC-SKI SCANNING
SLOPE SENSOR
LASER CONTROL
WATER TANK
DRIVE - WATER PUMPР’
PUMP CONNECTORS
PUMP CONNECTORS
SPRINKLER SYSTEM FB1300/1500
SPRINKLER SYSTEM FB2000
SPRINKLER SYSTEM CONVEYOR UNIT
WATER FILLING FRONT
WATER FILLING REAR
WATER FILLING PUMP - HYDRAULIC
ADDITIONAL WATER TANK
ADDITIONAL WATER TANK-PIPEING
SPRINKLER SYSTEM FCS
JET CLEANER
DRIVE HIGH PRESSURE CLEANER
COMPRESSED AIR SYSTEM
COMPRESSOR RESISTECE
PNEUMATIC PUNCH
1
2
2
3
3
4
5
6
6
7
7
8
9
10
11
11
12
13
13
14
14
14
14
15
15
Позиция на иллюстрации
Заводской номер детали
Название детали
1
8099
ANGLE
2
17405
CONNECTION PIECE
3
53780
HOSE CLAMP
4
4949
COOLING-WATER HOSE
5
8100
ANGLE
6
17283
PIPE CLIP
7
41697
PIPE BASE PLATE
8
5192
HEXAGON NUT
9
4828
WASHER
10
8044
TWIN NIPPLE
11
36988
BALL-CLOSURE COCK
12
10841
TWIN NIPPLE
13
15515
ANGLE
14
13001
HOSE COUPLING
14
37907
COUPLING
15
15526
COUPLING
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
