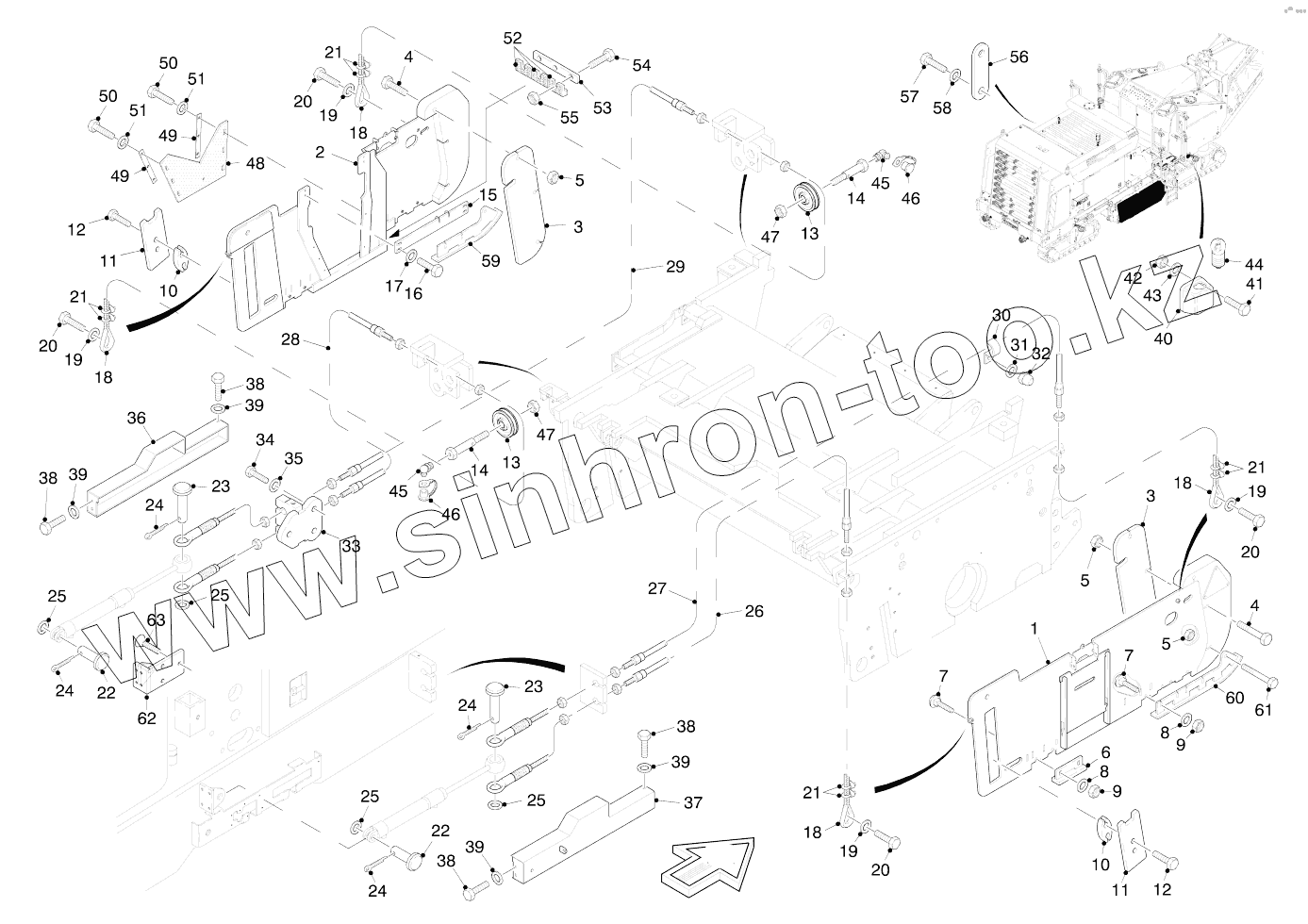

Каталог запасных частей к технике: WIRTGEN W1500. SIDE PLATE FB1500
1
2
3
3
4
4
5
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
16
17
18
18
18
18
19
19
19
19
20
20
20
20
21
21
21
21
22
22
23
23
24
24
24
24
25
25
25
25
26
27
28
29
30
31
32
33
34
35
36
37
38
38
38
38
39
39
39
39
40
41
42
43
44
45
45
46
46
47
47
48
49
49
50
50
51
51
52
53
54
55
56
57
58
59
60
61
62
63
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 145351 | SIDE PLATE | |
| 2 | 143639 | EDGE PROTECTION | |
| 3 | 141749 | WEAR PLATE | |
| 4 | 4314 | SCREW | |
| 5 | 5151 | HEXAGON NUT | |
| 6 | 113001 | PROTECTOR SKID 40X180 | |
| 6 | 113001 | PROTECTOR SKID 40X180 | |
| 7 | 148982 | SCREW | |
| 8 | 39994 | WASHER | |
| 9 | 5192 | HEXAGON NUT | |
| 10 | 57718 | SPACER PLATE | |
| 11 | 57719 | COVER PLATE | |
| 12 | 4618 | SCREW | |
| 13 | 82610 | ROPE PULLEY | |
| 14 | 74582 | RETAINER SCREW | |
| 15 | 58436 | REINFORCEMENT | |
| 16 | 4219 | SCREW | |
| 17 | 5275 | WASHER | |
| 18 | 69522 | ROPE EYE | |
| 19 | 4091 | WASHER | |
| 20 | 4219 | SCREW | |
| 21 | 8026 | WIRE CLIP | |
| 22 | 34465 | BOLT | |
| 23 | 104971 | BOLT | |
| 24 | 9851 | SPLIT PIN | |
| 25 | 5158 | WASHER | |
| 26 | 145469 | BOWDEN CABLE | |
| 27 | 145470 | BOWDEN CABLE | |
| 28 | 142246 | BOWDEN CABLE | |
| 29 | 142241 | BOWDEN CABLE | |
| 30 | 58605 | PIPE CLIP | |
| 31 | 5274 | WASHER | |
| 32 | 6219 | CAP NUT | |
| 33 | 146336 | MOUNTING DEVICE | |
| 34 | 5201 | SCREW | |
| 35 | 5195 | WASHER | |
| 36 | 146371 | COVER | |
| 37 | 144626 | COVER | |
| 38 | 4218 | SCREW | |
| 39 | 5274 | WASHER | |
| 40 | 35436 | FLASHLIGHT | |
| 41 | 19168 | SCREW | |
| 42 | 20431 | HEXAGON NUT | |
| 43 | 31632 | WASHER | |
| 44 | 10183 | BULB | |
| 45 | 9062 | GREASING NIPPLE | |
| 46 | 11181 | CAP | |
| 47 | 20562 | HEXAGON NUT | |
| 48 | 112982 | SEALING RUBBER | |
| 49 | 53135 | RAIL | |
| 50 | 4181 | SCREW | |
| 51 | 5211 | WASHER | |
| 52 | 8838 | SCRAPER FB50 | |
| 53 | 114892 | RAIL | |
| 54 | 4220 | SCREW | |
| 55 | 5269 | HEXAGON NUT | |
| 56 | 147789 | FISHPLATE | |
| 57 | 4299 | SCREW | |
| 58 | 5131 | WASHER | |
| 59 | 157828 | PROTECTOR SKID 50X490 | |
| 60 | 155630 | PROTECTOR SKID 50X625 | |
| 61 | 4316 | SCREW | |
| 62 | 178424 | CYLINDER BRACKET | |
| 63 | 105870 | SCREW |
