Каталог запасных частей к технике: WIRTGEN W1500. MILLING DRUM SUSPENSION FCS
1
2
3
4
4
5
5
6
6
7
7
8
9
10
10
11
12
12
13
14
14
15
16
16
17
17
18
18
19
20
21
22
23
24
24
25
26
26
27
27
28
29
30
31
31
32
32
33
33
33
33
34
35
36
36
37
38
38
38
38
39
40
40
41
42
43

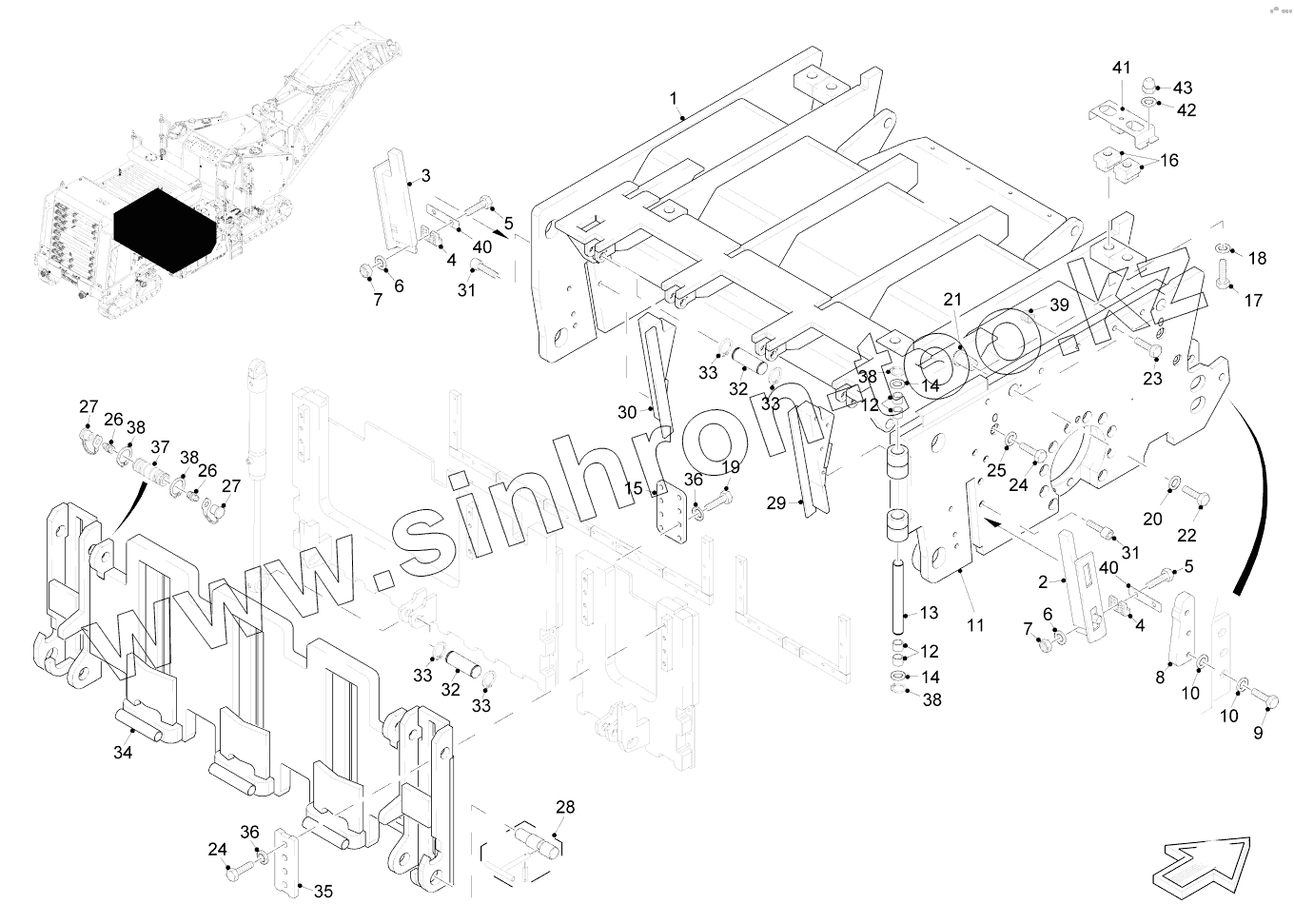

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 150035 | MILLING DRUM HOUSING | |
| 2 | 150375 | SEAL | |
| 3 | 113182 | SEAL | |
| 4 | 8838 | SCRAPER FB50 | |
| 5 | 4220 | SCREW | |
| 6 | 5274 | WASHER | |
| 7 | 5268 | HEXAGON NUT | |
| 8 | 113183 | GUIDE | |
| 9 | 20500 | SCREW | |
| 10 | 29798 | WASHER | |
| 11 | 152374 | SIDE PLATE | |
| 12 | 2870 | BUSHING | |
| 13 | 77108 | BOLT | |
| 14 | 18455 | WASHER | |
| 15 | 127969 | PLATE | |
| 16 | 57294 | T-SLOT NUT | |
| 16 | 57294 | T-SLOT NUT | |
| 17 | 18457 | SCREW | |
| 17 | 18457 | SCREW | |
| 18 | 32111 | WASHER | |
| 18 | 32111 | WASHER | |
| 19 | 4359 | SCREW | |
| 20 | 113099 | WASHER | |
| 21 | 135973 | ALIGNMENT BOLT | |
| 22 | 4438 | SCREW | |
| 23 | 5623 | SCREW | |
| 24 | 4433 | SCREW | |
| 25 | 23935 | WASHER | |
| 26 | 1105 | GREASING NIPPLE | |
| 27 | 11181 | CAP | |
| 28 | 129545 | BOLT | |
| 29 | 128103 | HOUSING | |
| 30 | 128098 | HOUSING | |
| 31 | 4576 | SCREW | |
| 32 | 134626 | BOLT | |
| 33 | 10331 | LOCKING RING | |
| 34 | 127435 | SCRAPER BLADE,TOP PART | |
| 35 | 112556 | RETAINING PLATE | |
| 36 | 5160 | WASHER | |
| 37 | 126213 | BOLT | |
| 38 | 8319 | LOCKING RING | |
| 39 | 132109 | THREADED INSERT | |
| 40 | 155640 | RAIL | |
| 41 | 160793 | SUPPORT | |
| 42 | 5206 | WASHER | |
| 43 | 6683 | CAP NUT |
