Каталог запасных частей к технике: WIRTGEN W1500. FOLDING CONVEYOR

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
3
3
3
4
4
5
6
7
7
8
8
8
9
9
9
9
10
11
12
13
13
13
14
15
15
16
17
17
18
18
18
19
20
20
21
21
22
23
24
25
26
27
28
29
30
30
31
31
32
32
33
34
35
36
37
38
39
40
41
41
42
42
42
42
42
43
44
45
46
47
48
48
49
49
49
49
50
50
50
50
51
51
52
53
54
55
56
57
57
58
58
59
59
60
61
61
62
62
63
64
64
65
65
66
66
67
67
68
68
69
69
70
70
71
71
72
72
73
74
75
76
76
77
77
78
78
79
79
80
80
80
80
81
81
81
82
82
83
83
84
85
86
87
88
89
90
91
92
96
97
98
98
99

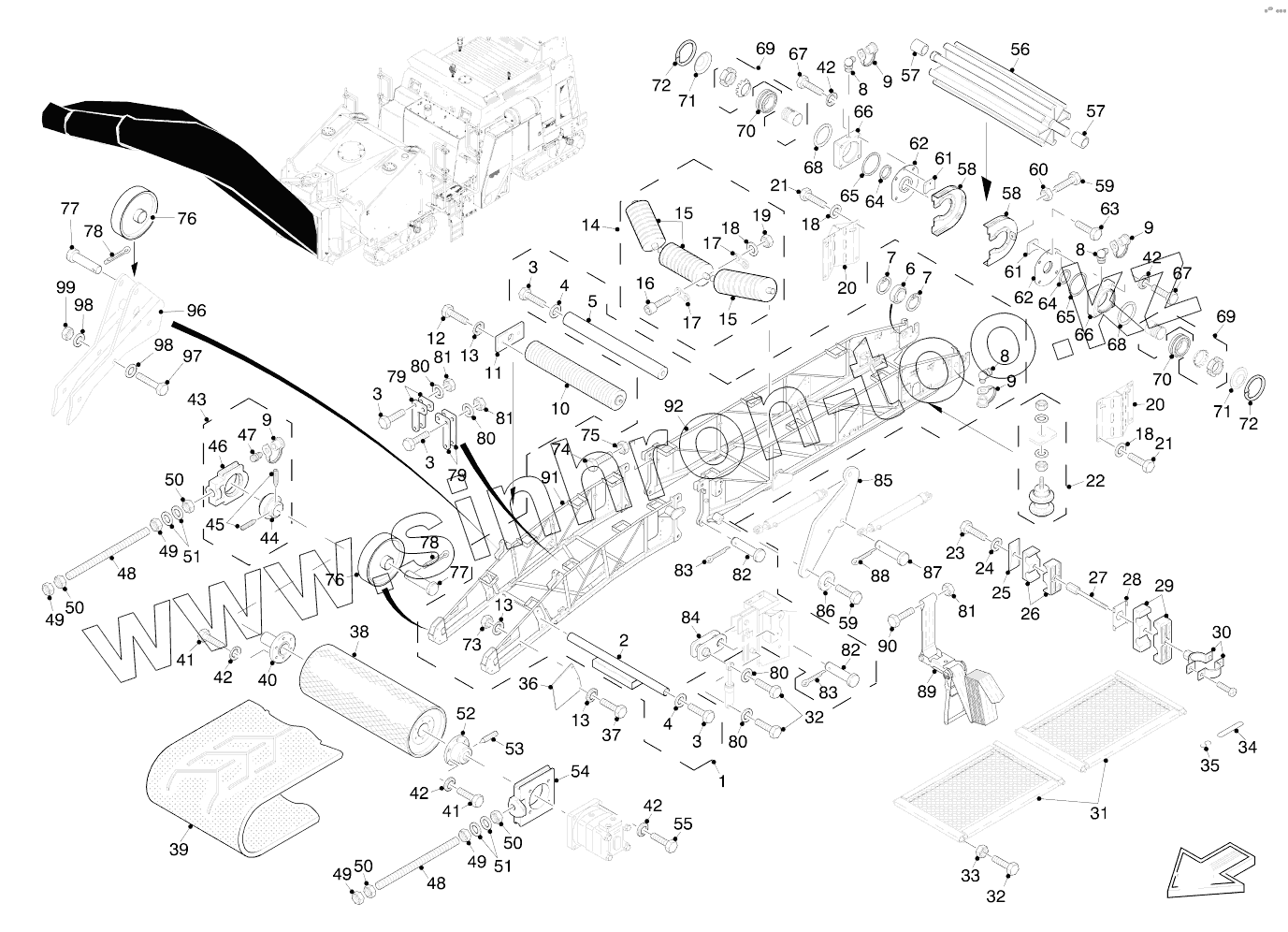

Позиция на иллюстрации Заводской номер детали Название детали
1 120057 FOLDING CONVEYOR FRAME
2 121911 BRACING
3 10359 SCREW
4 36126 WASHER
5 113363 BRACING
6 18503 PIVOTING BEARING
7 10453 LOCKING RING
8 8688 GREASING NIPPLE
9 11181 CAP
10 111348 BELT ROLLER B800
11 72055 ROLLER SUPPORT
12 4179 SCREW
13 5208 WASHER
14 111363 ROLLER B800
15 117972 ROPE PULLEY
16 108289 SCREW
17 117971 CHAIN LINK
18 5206 WASHER
19 12247 HEXAGON NUT
20 135218 GRID
21 4180 SCREW
22 54954 GUIDE ROLLER
23 4184 SCREW
24 5211 WASHER
25 115791 COVER PLATE
26 115792 PIPE CLIP
27 115794 SCREW
28 115790 LOCKING PLATE
29 115793 PIPE CLIP
30 30259 PIPE CLIP
30 2053124 PIPE CLIP
31 112971 GRID
31 164847 GRID
32 5941 SCREW
33 5810 HEXAGON NUT
34 70203 RUBBER ENDLESS
35 70204 HOOK
36 121801 COVER
37 4181 SCREW
38 95865 DRIVE PULLEY B800
39 57482 CONVEYOR BELT B800
40 112980 BOLT-ON PIN
41 4263 SCREW
42 5197 WASHER
43 1765 TENSIONER BEARING
44 18332 BEARING INSERT
45 10188 THREADED PIN
46 18333 BEARING HOUSING
47 8588 GREASING NIPPLE
48 52116 THREADED ROD
49 42186 HEXAGON NUT
50 4817 HEXAGON NUT
51 4822 WASHER
52 38601 DRIVE FLANGE
53 10367 THREADED PIN
54 14864 GUIDING PLATE
55 4264 SCREW
56 110871 RETURN PULLEY B800
57 145073 INNER RING
58 113596 ROLLER PROTECTION
59 75899 SCREW
60 5134 HEXAGON NUT
61 144465 BURNT PART
62 144466 INTERMEDIATE RING
63 4178 SCREW
64 145072 SEAL
65 144467 SPACER RING
66 110873 HOUSING
67 4272 SCREW
68 26460 O-RING SEAL
69 1395 TENSIONER BUSH, COMPL.
70 1387 SPHERICAL ROLLER BEARING
71 110868 COVER
72 45402 LOCKING RING
73 5210 HEXAGON NUT
74 4363 SCREW
75 5156 HEXAGON NUT
76 113671 WHEEL
77 44145 BOLT
78 5849 SPLIT PIN
79 131133 BURNT PART
80 5799 WASHER
81 5151 HEXAGON NUT
82 38795 BOLT
83 5854 SPLIT PIN
84 126299 LATCH
85 120006 LEVER ARM
86 4084 WASHER
87 1322 BOLT
88 9855 SPLIT PIN
89 131117 TENSIONER BELT
90 5636 SCREW
91 160746 FRAME UPPER PART
92 160748 FRAME LOWER PART
96 188284 CONSOLE
97 4310 SCREW
98 36333 WASHER
99 5134 HEXAGON NUT
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
