Каталог запасных частей к технике: WIRTGEN W1500. DRUM FLAP UP/DOWN FCS
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
9
9
9
9
9
9
9
9
9
9
10
10
10
10
11
11
12
12
12
12
13
13
15
15
15
15
16
16
17
18
19
19
20
20
20
21
21
21
22
22
22
23
23
24
24
25
26
27
28
28
29
30
31
32
33
34

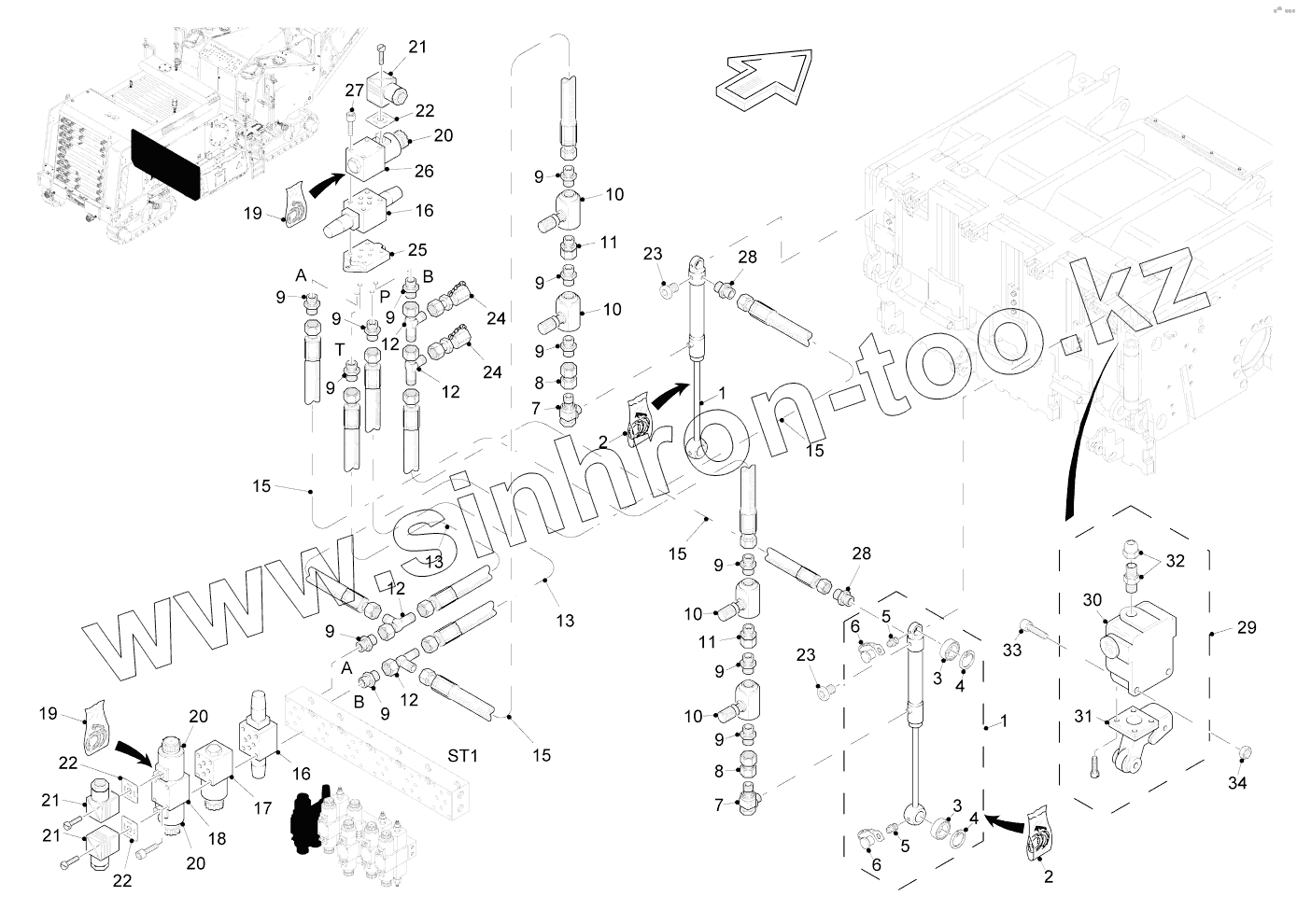

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 113317 | HYDRAULIC CYLINDER | |
| 2 | 106530 | SET OF SEALS | |
| 3 | 61960 | PIVOTING BEARING | |
| 4 | 61961 | LOCKING RING | |
| 5 | 9065 | GREASING NIPPLE | |
| 6 | 11181 | CAP | |
| 7 | 3794 | BANJO COUPLING,ONE-PIECE BOLT | |
| 8 | 51005 | STRAIGHT COUPLING | |
| 9 | 1126 | MALE STUD COUPLING | |
| 10 | 4453 | ORIFICE CHECK VALVE | |
| 11 | 90680 | STUD STANDPIPE ADAPTOR | |
| 12 | 3929 | ADJ.MALE STUD TEE-STUD BARREL | |
| 13 | 1623 | HYDRAULIC HOSE | |
| 15 | 15603 | HYDRAULIC HOSE | |
| 16 | 114162 | PRESSURE-RELIEF VALVE | |
| 17 | 137261 | DIRECTIONAL VALVE | |
| 18 | 114131 | DIRECTIONAL VALVE | |
| 19 | 114161 | SET OF SEALS | |
| 20 | 114160 | SOLENOID | |
| 21 | 131097 | FEMALE PLUG | |
| 22 | 21041 | SEAL | |
| 23 | 10189 | SCREWED SEALING PLUG | |
| 24 | 4646 | MEASURING CONNECTOR | |
| 25 | 3406 | CONNECTION PLATE | |
| 26 | 134528 | DIRECTIONAL VALVE | |
| 27 | 5491 | SCREW | |
| 28 | 1114 | MALE STUD COUPLING | |
| 29 | 7173 | SAFETY LIMIT SWITCH | |
| 30 | 7175 | SAFETY LIMIT SWITCH | |
| 31 | 7178 | ROLLER LEVER | |
| 32 | 21990 | CABLE JOINT | |
| 33 | 5497 | SCREW | |
| 34 | 5809 | HEXAGON NUT |
