Каталог запасных частей к технике: WIRTGEN W1500. DRUM FLAP UP/DOWN

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
9
9
9
9
9
9
9
9
9
10
10
10
10
11
11
12
12
12
13
13
14
14
15
15
15
15
16
17
18
19
20
20
21
21
22
22
23
24
25
26
27
28
29
30
31
32
33
34
35
35
36
37
38
39
40
41
42
43
43
44
45
46
47
48
48
49
50
51
52
53

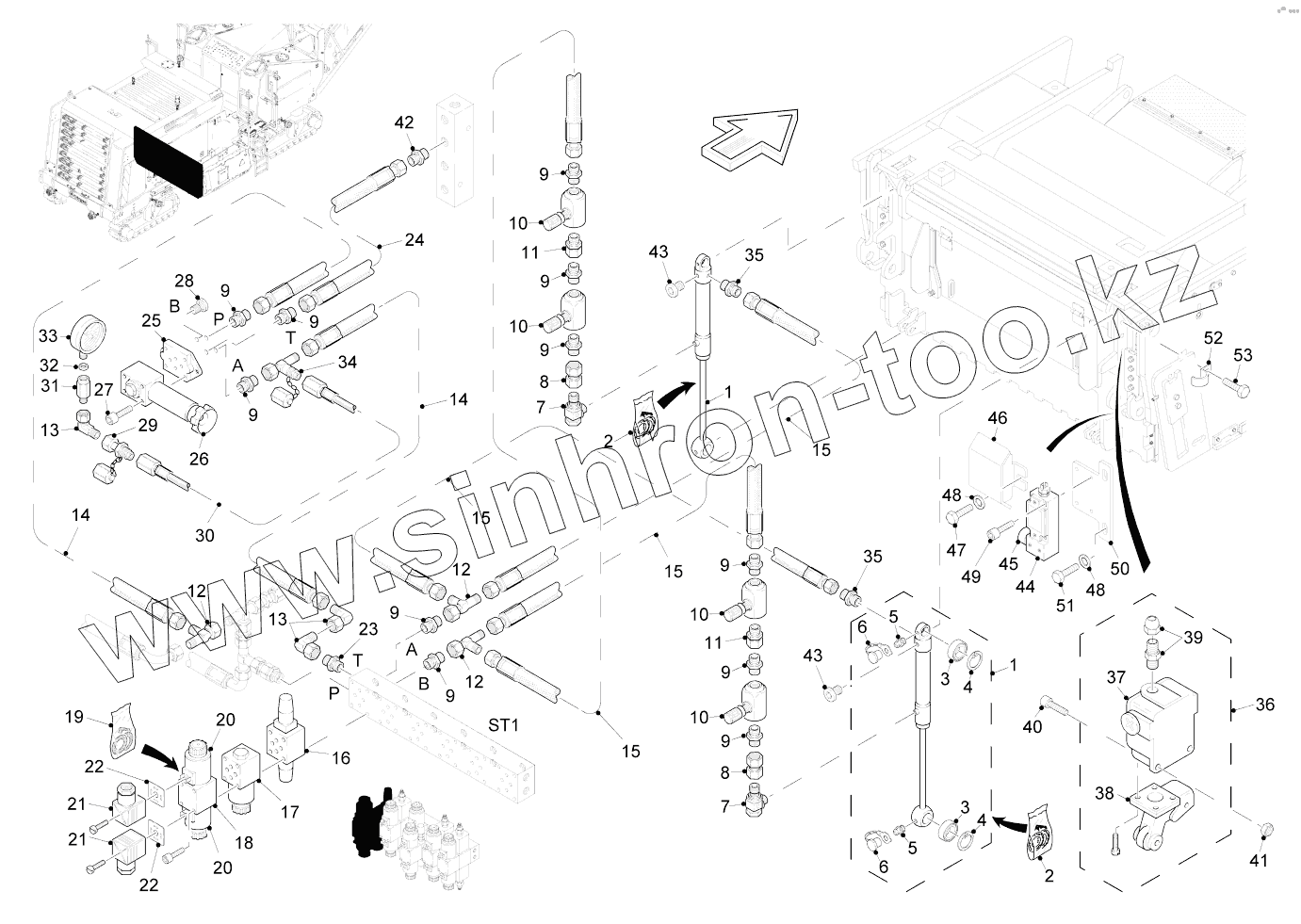

Позиция на иллюстрации Заводской номер детали Название детали
1 113317 HYDRAULIC CYLINDER
2 106530 SET OF SEALS
3 61960 PIVOTING BEARING
4 61961 LOCKING RING
5 9065 GREASING NIPPLE
6 11181 CAP
7 3794 BANJO COUPLING,ONE-PIECE BOLT
8 51005 STRAIGHT COUPLING
9 1126 MALE STUD COUPLING
10 4453 ORIFICE CHECK VALVE
11 90680 STUD STANDPIPE ADAPTOR
12 3929 ADJ.MALE STUD TEE-STUD BARREL
13 31428 ADJUSTABLE MALE STUD ELBOW
14 16032 HYDRAULIC HOSE
15 15603 HYDRAULIC HOSE
16 114162 PRESSURE-RELIEF VALVE
17 137261 DIRECTIONAL VALVE
18 114131 DIRECTIONAL VALVE
19 114161 SET OF SEALS
20 114160 SOLENOID
21 131097 FEMALE PLUG
22 21041 SEAL
23 1499 MALE STUD COUPLING
24 20980 HYDRAULIC HOSE
25 3406 CONNECTION PLATE
26 110346 PRESSURE REDUCTION VALVE
27 5492 SCREW
28 9922 SCREWED SEALING PLUG
29 4646 MEASURING CONNECTOR
30 116680 MEASURING HOSE
31 4959 PARALLE FEMALE STUD COUPLING
32 11179 SEALING RING
33 140080 PRESSURE GAUGE
34 98686 ADJ.MALE STUD TEE-STUD BARREL
35 1114 MALE STUD COUPLING
36 7173 SAFETY LIMIT SWITCH
37 7175 SAFETY LIMIT SWITCH
38 7178 ROLLER LEVER
39 21990 CABLE JOINT
40 5497 SCREW
41 5809 HEXAGON NUT
42 3934 MALE STUD COUPLING
43 10189 SCREWED SEALING PLUG
44 137941 LIMIT SWITCH
45 17000 ROLLER LEVER
46 2070706 LIMIT SWITCH ACTUATION
47 4180 SCREW
48 5206 WASHER
49 5494 SCREW
50 2070622 PLATE
51 4179 SCREW
52 158125 PIPE CLIP
53 4178 SCREW
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
