Каталог запасных частей к технике: WIRTGEN W1500. CANOPY
1
2
3
4
5
6
6
6
7
7
7
7
7
7
8
8
8
9
9
10
11
11
11
11
11
12
12
13
14
15
16
17
17
18
19
20
21
21
21
21
22
22
22
22
23
23
23
23
24
25
25
27
28
28
29
29
30
30
31
32
33
34
35
35
36
37
38
38
39
39
40
41
42
43
43
44
45
45
46
47
48
48
49
49
50
51
52
53
54
55
56
57
58
58
59
60
61
62
62
63
64
65
66
66
66
66
66
67
68
68
69
69
70
71
72
73
74
75
76
77
78
79
80
81
81
82
83
84
84
84
85
85
86

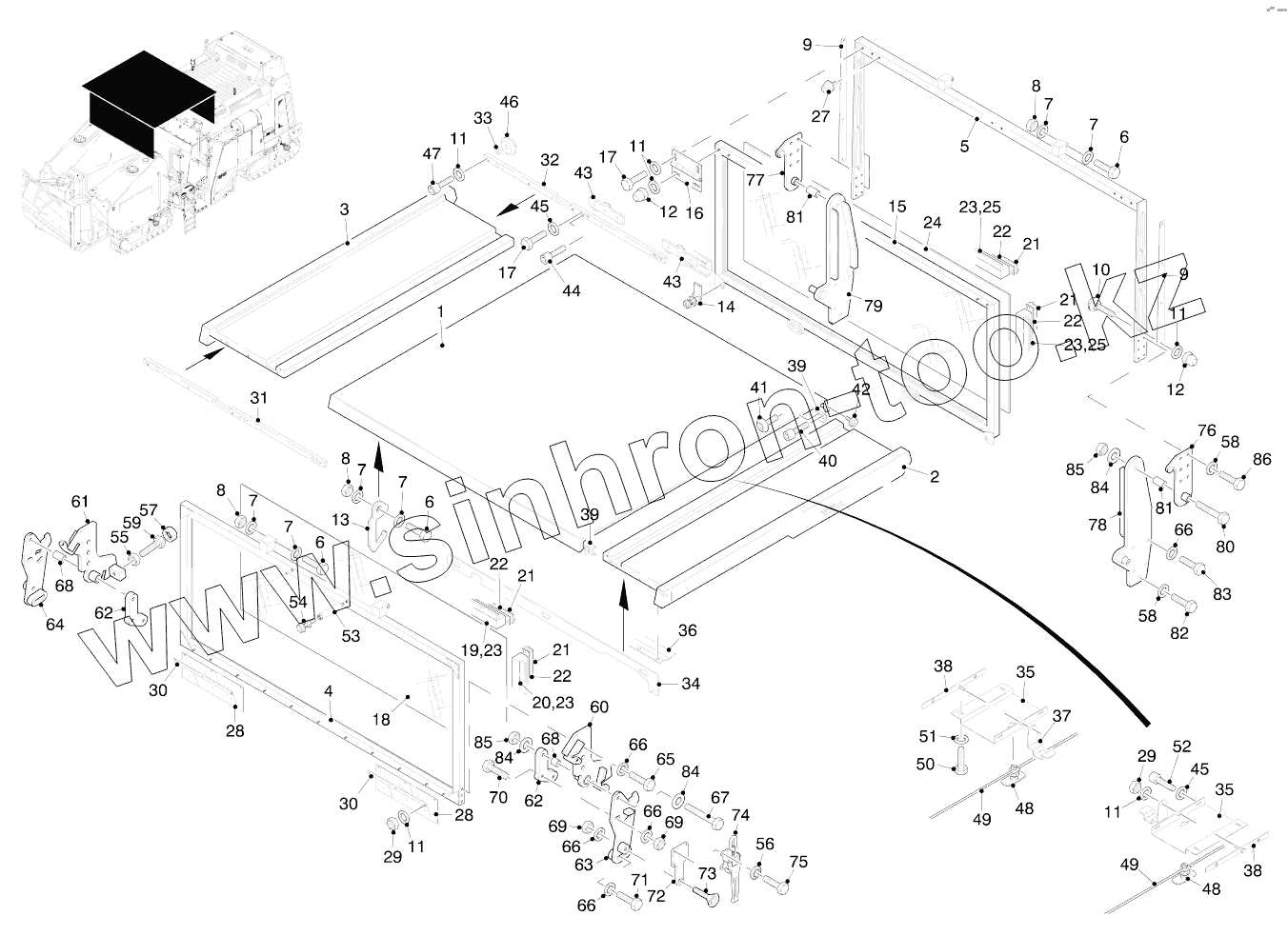

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 170392 | CENTRAL SECTION | |
| 2 | 170393 | SIDE PART | |
| 3 | 170394 | SIDE PART | |
| 4 | 172571 | WINDOW FRAME | |
| 5 | 172605 | BOW | |
| 6 | 4237 | SCREW | |
| 7 | 5274 | WASHER | |
| 8 | 5269 | HEXAGON NUT | |
| 9 | 172607 | BURNT PART | |
| 10 | 131753 | SCREW | |
| 11 | 5206 | WASHER | |
| 12 | 6683 | CAP NUT | |
| 13 | 174009 | HOOK | |
| 14 | 109218 | LATCH CLOSING | |
| 15 | 172584 | FRAME | |
| 16 | 37220 | HINGE | |
| 17 | 4178 | SCREW | |
| 18 | 172650 | ACRYLIC GLASS SCREEN | |
| 19 | 172656 | PROFILED STEEL | |
| 20 | 172657 | PROFILED STEEL | |
| 21 | 115766 | SEALING PROFILE | |
| 22 | 115768 | SEALING PROFILE | |
| 23 | 118429 | PLUG | |
| 24 | 172653 | ACRYLIC GLASS SCREEN | |
| 25 | 172658 | PROFILED STEEL | |
| 26 | 172660 | PROFILED STEEL | |
| 27 | 17439 | SILENTBLOC | |
| 28 | 147713 | SEALING RUBBER | |
| 29 | 12247 | HEXAGON NUT | |
| 30 | 147732 | RAIL | |
| 31 | 170388 | BURNT PART | |
| 32 | 170389 | BURNT PART | |
| 33 | 170391 | WASHER | |
| 34 | 170386 | BURNT PART | |
| 35 | 170387 | BENT PART | |
| 36 | 170385 | BENT PART | |
| 37 | 173551 | BENT PART | |
| 38 | 173959 | RETAINER STRIP | |
| 39 | 170096 | GUIDE RAIL | |
| 40 | 4368 | SCREW | |
| 41 | 131621 | SCREW | |
| 42 | 133137 | SILENTBLOC | |
| 43 | 170097 | RUNNER | |
| 44 | 6074 | SCREW | |
| 45 | 5800 | WASHER | |
| 46 | 170098 | ROLLER | |
| 47 | 5497 | SCREW | |
| 48 | 170091 | LATCH CLOSING | |
| 49 | 170093 | FASTENER | |
| 50 | 5940 | SCREW | |
| 51 | 5799 | WASHER | |
| 52 | 6073 | SCREW | |
| 53 | 165933 | REST | |
| 54 | 165948 | SCREW | |
| 55 | 5269 | HEXAGON NUT | |
| 56 | 5208 | WASHER | |
| 57 | 115828 | PROTECTING CAP | |
| 58 | 5274 | WASHER | |
| 59 | 5617 | SCREW | |
| 60 | 165811 | SUPPORT | |
| 61 | 165818 | SUPPORT | |
| 62 | 165783 | SUPPORT | |
| 63 | 165775 | SUPPORT | |
| 64 | 165782 | SUPPORT | |
| 65 | 4261 | SCREW | |
| 66 | 5195 | WASHER | |
| 67 | 4314 | SCREW | |
| 68 | 165820 | SPACER BUSH | |
| 69 | 5192 | HEXAGON NUT | |
| 70 | 1072 | SCREW | |
| 71 | 4272 | SCREW | |
| 72 | 115753 | SUPPORT | |
| 73 | 147106 | SCREW | |
| 74 | 74218 | FASTENING | |
| 75 | 4177 | SCREW | |
| 76 | 165685 | SUPPORT | |
| 77 | 165681 | SUPPORT | |
| 78 | 165614 | SUPPORT | |
| 79 | 165672 | SUPPORT | |
| 80 | 4279 | SCREW | |
| 81 | 163792 | SPACER BUSH | |
| 82 | 4220 | SCREW | |
| 83 | 4262 | SCREW | |
| 84 | 36126 | WASHER | |
| 85 | 5151 | HEXAGON NUT | |
| 86 | 4219 | SCREW |
