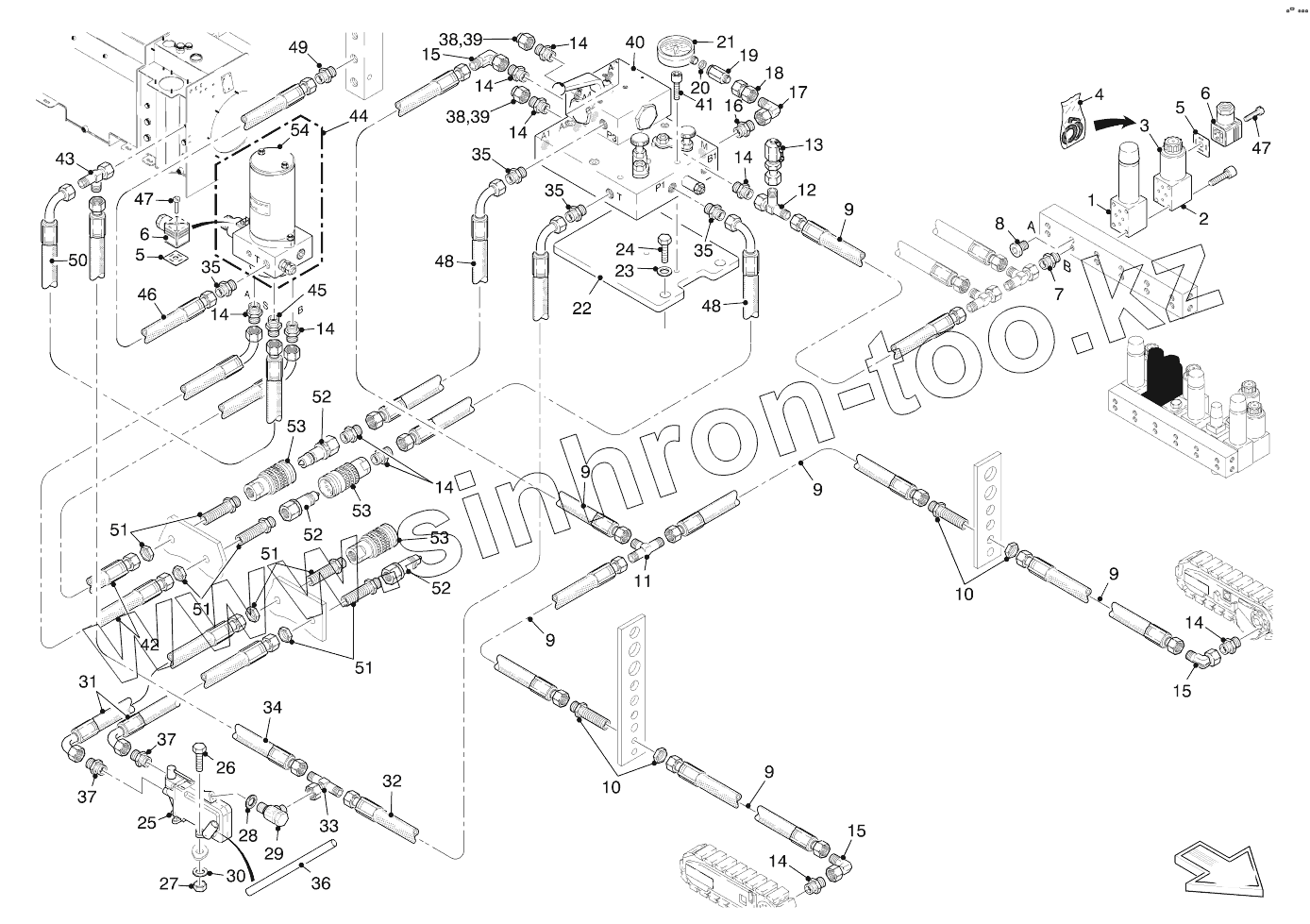

Каталог запасных частей к технике: WIRTGEN W1500. BRAKE SYS./EMERG.TOWING DEVICE
1
2
3
4
5
5
6
6
7
8
9
9
9
9
9
9
10
10
11
12
13
14
14
14
14
14
14
14
14
14
15
15
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
35
35
35
36
37
37
38
38
39
39
40
41
42
43
44
44
45
45
46
47
47
48
48
49
50
51
51
51
51
52
52
52
52
52
52
53
53
53
53
53
53
54
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 35321 | PRESSURE REDUCTION VALVE | |
| 2 | 114135 | DIRECTIONAL VALVE | |
| 3 | 114160 | SOLENOID | |
| 4 | 114161 | SET OF SEALS | |
| 5 | 21041 | SEAL | |
| 6 | 131097 | FEMALE PLUG | |
| 7 | 30243 | MALE STUD COUPLING | |
| 8 | 9922 | SCREWED SEALING PLUG | |
| 9 | 104265 | HYDRAULIC HOSE | |
| 10 | 2884 | BULKHEAD COUPLING | |
| 11 | 2882 | EQUAL TEE | |
| 12 | 2887 | ADJ.MALE STUD TEE-STUD BARREL | |
| 13 | 148777 | MEASURING CONNECTOR | |
| 14 | 5930 | MALE STUD COUPLING | |
| 15 | 2888 | ADJUSTABLE MALE STUD ELBOW | |
| 16 | 3622 | MALE STUD COUPLING | |
| 17 | 31428 | ADJUSTABLE MALE STUD ELBOW | |
| 18 | 51005 | STRAIGHT COUPLING | |
| 19 | 4959 | PARALLE FEMALE STUD COUPLING | |
| 20 | 11179 | SEALING RING | |
| 21 | 5025 | PRESSURE GAUGE | |
| 22 | 144729 | RETAINING PLATE | |
| 23 | 5274 | WASHER | |
| 24 | 4218 | SCREW | |
| 25 | 124157 | MANUAL PUMP | |
| 26 | 4220 | SCREW | |
| 27 | 5268 | HEXAGON NUT | |
| 28 | 7242 | COPPER RING | |
| 29 | 3794 | BANJO COUPLING,ONE-PIECE BOLT | |
| 30 | 5274 | WASHER | |
| 31 | 145669 | HYDRAULIC HOSE | |
| 32 | 49470 | HYDRAULIC HOSE | |
| 33 | 19567 | ADJUSTABLE EQUAL TEE | |
| 34 | 1627 | HYDRAULIC HOSE | |
| 35 | 38476 | THROTTLE CONNECTOR | |
| 36 | 121362 | PIPE | |
| 37 | 4941 | MALE STUD COUPLING | |
| 38 | 5048 | DUMMY PLUG | |
| 39 | 5000 | CAP NUT | |
| 40 | 157254 | CONTROL BLOCK | |
| 41 | 6112 | SCREW | |
| 42 | 80670 | HYDRAULIC HOSE | |
| 43 | 3929 | ADJ.MALE STUD TEE-STUD BARREL | |
| 44 | 2082216 | HYDRAULIC AGGREGAT | |
| 44 | 165887 | HYDRAULIC AGGREGAT | |
| 45 | 169394 | MALE STUD COUPLING | |
| 45 | 3622 | MALE STUD COUPLING | |
| 46 | 68177 | HYDRAULIC HOSE | |
| 47 | 22790 | KNURLED HEAD SCREW | |
| 48 | 98876 | HYDRAULIC HOSE | |
| 49 | 3934 | MALE STUD COUPLING | |
| 50 | 54372 | HYDRAULIC HOSE | |
| 51 | 166345 | ADAPTER | |
| 52 | 166341 | COUPLING PLUG | |
| 52 | 2071407 | COUPLING PLUG | |
| 53 | 166342 | COUPLING SLEEVE | |
| 53 | 2071408 | COUPLING SLEEVE | |
| 54 | 2066651 | ELECTROMOTOR |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
