Каталог запасных частей к технике: WIRTGEN W1500. BELT-DRIVE CASE FB2000
1
2
3
4
5
6
7
8
9
10
10
10
11
12
12
13
14
15
16
17
18
18
19
19
19
19
20
20
21
22
23
24
24
25
26
26
27
27
27
28
29
30
31
32
33
34
34
35

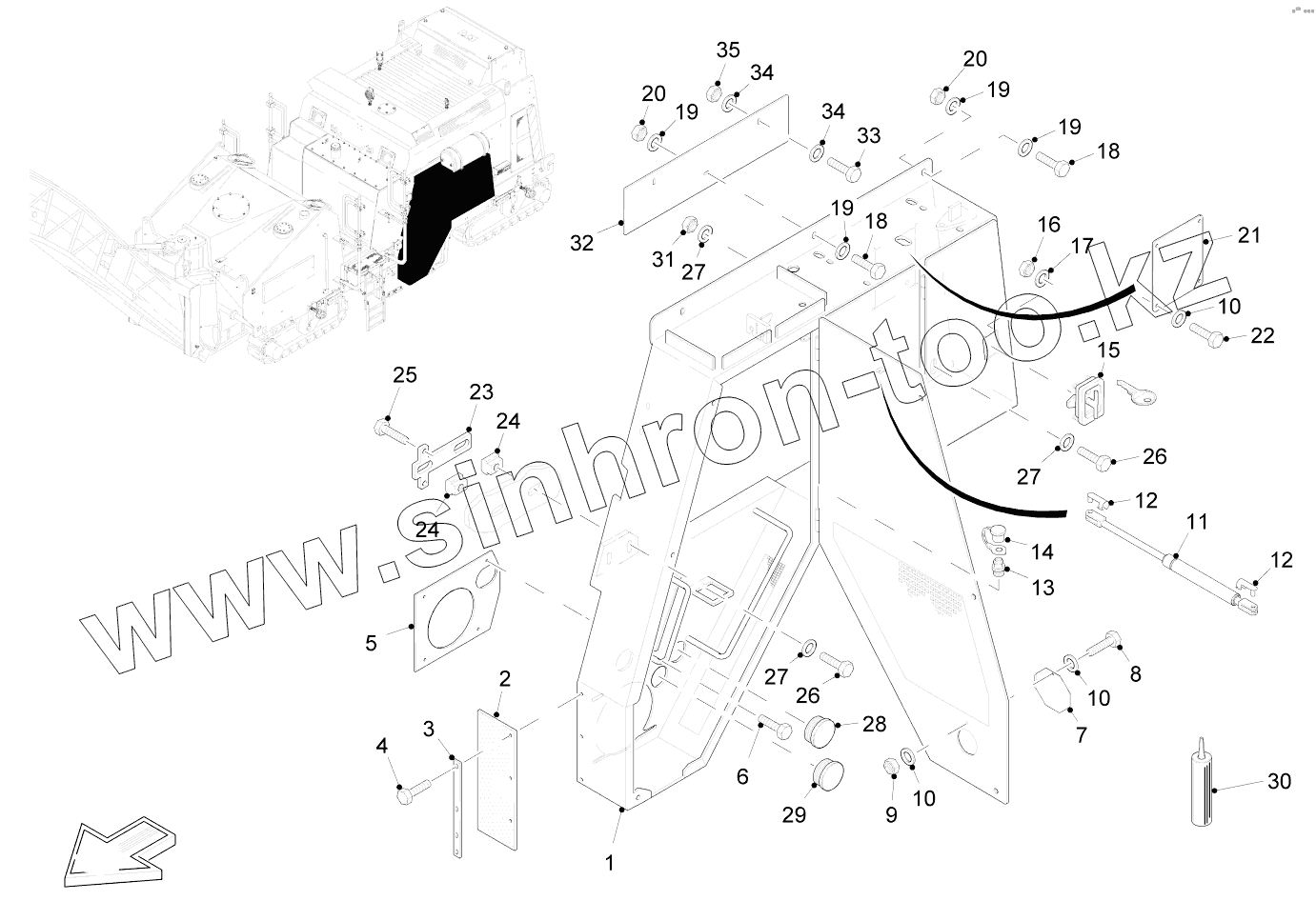

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 144131 | BELT-DRIVE CASE | |
| 2 | 61613 | DEFLECTOR | |
| 3 | 17311 | RAIL | |
| 4 | 4182 | SCREW | |
| 5 | 57791 | BACKPLATE | |
| 6 | 4221 | SCREW | |
| 7 | 57793 | COVER | |
| 8 | 4180 | SCREW | |
| 9 | 5209 | HEXAGON NUT | |
| 10 | 5206 | WASHER | |
| 11 | 112458 | GAS SPRING | |
| 12 | 3281 | PIN CLIP | |
| 13 | 9065 | GREASING NIPPLE | |
| 14 | 11181 | CAP | |
| 15 | 34867 | LATCH CLOSING | |
| 16 | 48710 | HEXAGON NUT | |
| 17 | 5801 | WASHER | |
| 18 | 4264 | SCREW | |
| 19 | 5195 | WASHER | |
| 20 | 5192 | HEXAGON NUT | |
| 21 | 145361 | COVER | |
| 22 | 57940 | SCREW | |
| 23 | 145311 | MOUNTING DEVICE | |
| 24 | 48763 | T-SLOT NUT | |
| 25 | 4178 | SCREW | |
| 26 | 33981 | SCREW | |
| 27 | 5131 | WASHER | |
| 28 | 53108 | CONE PLUG | |
| 29 | 53109 | CONE PLUG | |
| 30 | 23667 | BONDING AGENT | |
| 31 | 5151 | HEXAGON NUT | |
| 32 | 57845 | COVER PLATE | |
| 33 | 4263 | SCREW | |
| 34 | 4828 | WASHER | |
| 35 | 5192 | HEXAGON NUT |
