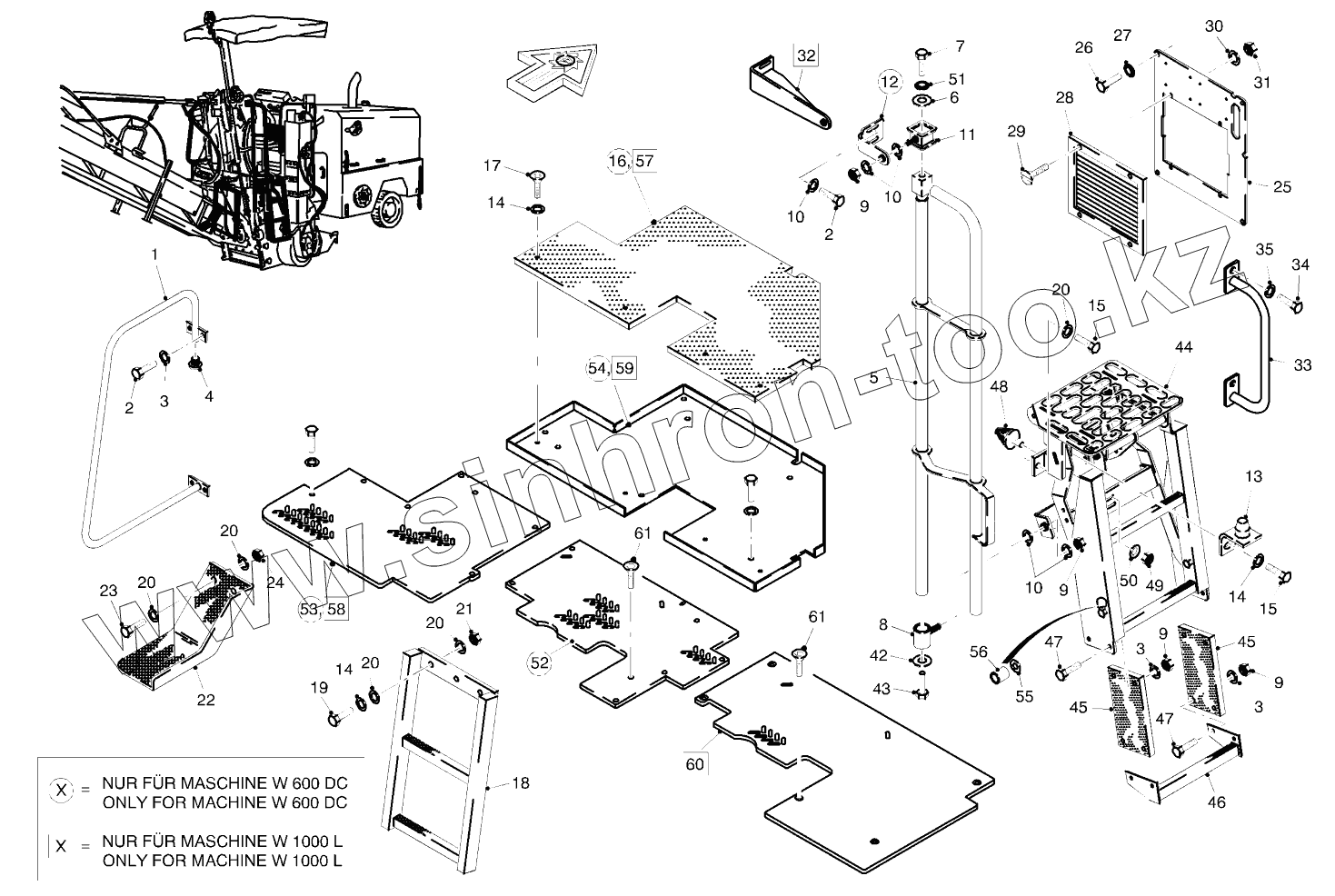

Каталог запасных частей к технике: WIRTGEN W1000L. OPERATOR'S STATION WITH LADDER
1
2
2
3
3
3
4
5
6
7
8
9
9
9
9
10
10
10
11
12
13
14
14
14
15
15
16
17
18
19
20
20
20
20
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
42
43
44
45
45
46
47
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
61
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 102096 | HANDRAIL | |
| 2 | 4219 | SCREW | |
| 3 | 5275 | WASHER | |
| 4 | 78045 | LAMELLAR PLUG | |
| 5 | 101355 | HAND-RAIL | |
| 6 | 107266 | WASHER | |
| 7 | 4300 | SCREW | |
| 8 | 101303 | PIPE BRACKET | |
| 9 | 5269 | HEXAGON NUT | |
| 10 | 5274 | WASHER | |
| 11 | 101250 | RETAINING PIPE | |
| 12 | 101275 | HOLDER | |
| 13 | 101308 | SUPPORT BRACKET | |
| 14 | 4828 | WASHER | |
| 15 | 4261 | SCREW | |
| 16 | 98465 | FOOT MAT | |
| 17 | 12242 | SCREW | |
| 18 | 51569 | LADDER | |
| 19 | 4263 | SCREW | |
| 20 | 5195 | WASHER | |
| 21 | 5192 | HEXAGON NUT | |
| 22 | 51570 | FOOTSTEP | |
| 23 | 4268 | SCREW | |
| 24 | 5193 | HEXAGON NUT | |
| 25 | 102101 | LID | |
| 26 | 4179 | SCREW | |
| 27 | 5208 | WASHER | |
| 28 | 68769 | FAN COVER | |
| 29 | 6070 | SCREW | |
| 30 | 5800 | WASHER | |
| 31 | 5810 | HEXAGON NUT | |
| 32 | 170176 | HOLDER | |
| 33 | 166530 | BRACKET | |
| 34 | 4219 | SCREW | |
| 35 | 51958 | WASHER | |
| 42 | 4829 | WASHER | |
| 43 | 4299 | SCREW | |
| 44 | 99562 | FOLDING LADDER | |
| 45 | 99552 | PLATE | |
| 46 | 80978 | STEP | |
| 47 | 4221 | SCREW | |
| 48 | 17439 | SILENTBLOC | |
| 49 | 5209 | HEXAGON NUT | |
| 50 | 5211 | WASHER | |
| 51 | 5129 | WASHER | |
| 52 | 98443 | TREAD PLATE | |
| 53 | 98444 | TREAD PLATE | |
| 54 | 98441 | PAN | |
| 55 | 5275 | WASHER | |
| 56 | 112404 | PIPE | |
| 57 | 170455 | FOOT MAT | |
| 58 | 167254 | TREAD PLATE | |
| 59 | 167255 | PAN | |
| 60 | 167253 | TREAD PLATE | |
| 61 | 8913 | SCREW |
