Каталог запасных частей к технике: WIRTGEN W1000L. FUEL SUPPLY
1
2
3
3
4
5
6
6
7
7
8
8
9
9
10
11
12
13
14
15
16
17
18
19
20
22
24
25
25
26
26
26
26
27
27
28
29
30
31
32
32
33
34
35
37
41
42
45
46
50
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
92
93
95
96
97
98
98
99

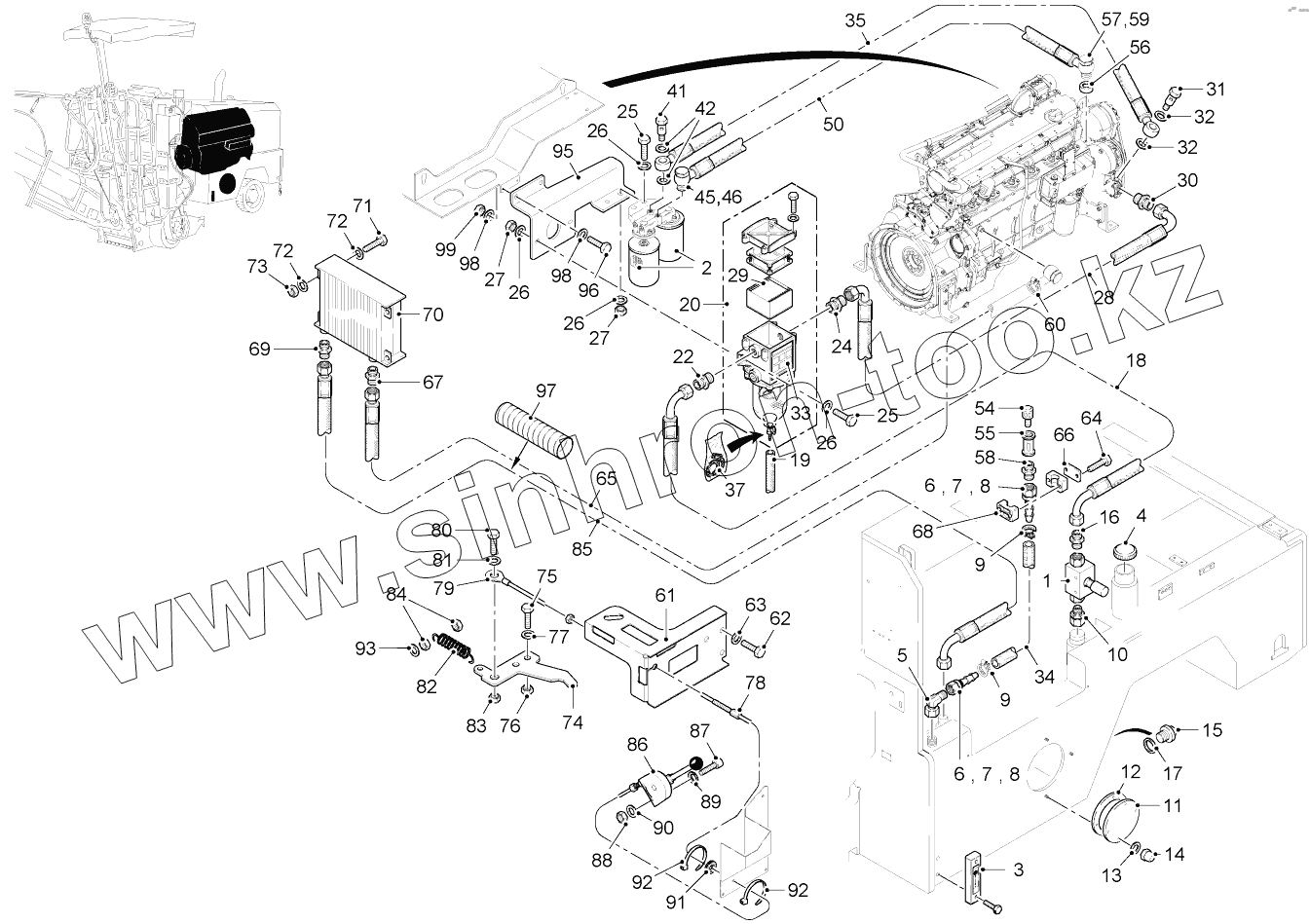

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 122335 | FUEL PUMP | |
| 2 | 1940 | FILTER INSERT | |
| 3 | 2896 | LEVEL INDICATOR | |
| 4 | 7485 | TANK CAP | |
| 5 | 31428 | ADJUSTABLE MALE STUD ELBOW | |
| 6 | 3800 | CUTTING RING | |
| 7 | 31446 | CAP NUT | |
| 8 | 12419 | HOSE SUPPORT | |
| 9 | 3286 | HOSE CLAMP | |
| 10 | 122900 | STUD STANDPIPE ADAPTOR | |
| 11 | 2000 | CONTAINER SEAL | |
| 12 | 6336 | PROFILED SEAL | |
| 13 | 5274 | WASHER | |
| 14 | 6219 | CAP NUT | |
| 15 | 133304 | LOCKING SCREW | |
| 16 | 4960 | MALE STUD COUPLING | |
| 17 | 19171 | COPPER RING | |
| 18 | 175473 | FUEL HOSE | |
| 19 | 10222 | FUEL HOSE | |
| 20 | 122647 | FUEL FILTER | |
| 22 | 153102 | MALE STUD COUPLING | |
| 24 | 153102 | MALE STUD COUPLING | |
| 25 | 4181 | SCREW | |
| 26 | 5211 | WASHER | |
| 27 | 12247 | HEXAGON NUT | |
| 28 | 175474 | FUEL HOSE | |
| 29 | 122648 | FUEL PREFILTER/WATER SEPARATOR | |
| 30 | 118613 | MALE STUD COUPLING | |
| 31 | 175380 | SCREW | |
| 32 | 7240 | COPPER RING | |
| 33 | 165550 | STICKERS | |
| 34 | 10100 | PVC HOSE | |
| 35 | 175475 | FUEL HOSE | |
| 37 | 151552 | SET OF SEALS | |
| 41 | 175380 | SCREW | |
| 42 | 7240 | COPPER RING | |
| 45 | 175380 | SCREW | |
| 46 | 7240 | COPPER RING | |
| 50 | 175476 | FUEL HOSE | |
| 54 | 56824 | BREATHER FILTER | |
| 55 | 14977 | PIPE FITTING | |
| 56 | 175608 | DISTANCE TUBE | |
| 57 | 8615 | SCREW | |
| 58 | 1499 | MALE STUD COUPLING | |
| 59 | 7240 | COPPER RING | |
| 60 | 3286 | HOSE CLAMP | |
| 61 | 95692 | HOLDER | |
| 62 | 4179 | SCREW | |
| 63 | 5208 | WASHER | |
| 64 | 5944 | SCREW | |
| 65 | 175478 | FUEL HOSE | |
| 66 | 4127 | COVER PLATE | |
| 67 | 3927 | MALE STUD COUPLING | |
| 68 | 4122 | PIPE CLIP | |
| 69 | 20930 | MALE STUD COUPLING | |
| 70 | 72371 | OIL COOLER ELEMENT | |
| 71 | 5948 | SCREW | |
| 72 | 5800 | WASHER | |
| 73 | 46115 | HEXAGON NUT | |
| 74 | 95693 | HOLDER | |
| 75 | 5940 | SCREW | |
| 76 | 46115 | HEXAGON NUT | |
| 77 | 5803 | WASHER | |
| 78 | 104596 | BOWDEN CABLE | |
| 79 | 81259 | JOINT HEAD | |
| 80 | 4179 | SCREW | |
| 81 | 5206 | WASHER | |
| 82 | 39813 | TENSION SPRING | |
| 83 | 5210 | HEXAGON NUT | |
| 84 | 46115 | HEXAGON NUT | |
| 85 | 175477 | FUEL HOSE | |
| 86 | 128058 | CONTROL LEVER | |
| 87 | 6078 | SCREW | |
| 88 | 5810 | HEXAGON NUT | |
| 89 | 5803 | WASHER | |
| 90 | 5800 | WASHER | |
| 91 | 54206 | CABLE BUSH | |
| 92 | 9612 | WIRE FASTENER | |
| 93 | 5803 | WASHER | |
| 95 | 173791 | HOLDER | |
| 96 | 4182 | SCREW | |
| 97 | 55036 | PROTECTOR (HOSE) | |
| 98 | 5211 | WASHER | |
| 99 | 12247 | HEXAGON NUT |
