Каталог запасных частей к технике: WIRTGEN W1000L. FOLDING CONVEYOR
1
2
3
4
5
5
5
5
5
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21
21
22
22
22
22
22
22
22
23
23
23
23
23
23
23
24
25
25
25
26
26
26
26
27
28
28
29
29
30
31
32
32
33
33
34
34
34
34
35
35
35
35
36
36
37
38
39
40
40
40
41
42
43
44
45
45
46
47
48
48
49
50
52
54
55
56
57
58
63
63
64
64
65
66
67
67
68
69
70
71
72
73
73
74
74
75
76
77
78
79
80

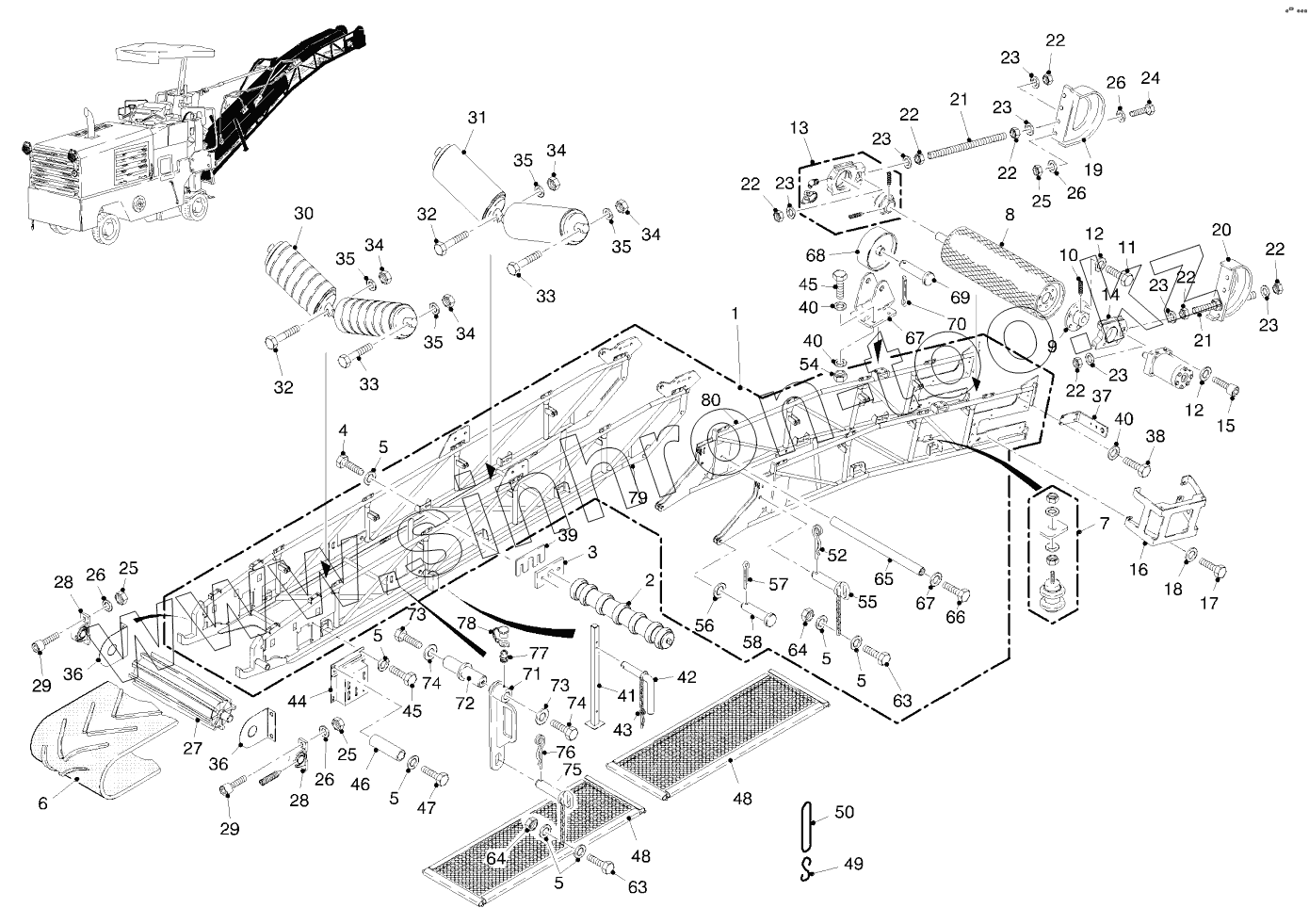

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 105189 | FOLDING CONVEYOR FRAME | |
| 2 | 71844 | BELT ROLLER B400 | |
| 3 | 72055 | ROLLER SUPPORT | |
| 4 | 4181 | SCREW | |
| 5 | 5211 | WASHER | |
| 6 | 97243 | CONVEYOR BELT B400 | |
| 7 | 54954 | GUIDE ROLLER | |
| 8 | 43231 | DRIVE PULLEY B400 | |
| 9 | 43240 | FLANGE | |
| 10 | 142808 | THREADED PIN | |
| 11 | 4265 | SCREW | |
| 12 | 5195 | WASHER | |
| 13 | 56293 | TENSIONER BEARING | |
| 14 | 43994 | GUIDE ELEMENT | |
| 15 | 4472 | SCREW | |
| 16 | 90173 | ENGINE PROTECTION | |
| 17 | 4219 | SCREW | |
| 18 | 5275 | WASHER | |
| 19 | 131700 | ROLL OVER PROTECTION | |
| 20 | 131714 | ROLL OVER PROTECTION | |
| 21 | 51277 | THREADED ROD | |
| 22 | 5156 | HEXAGON NUT | |
| 23 | 5158 | WASHER | |
| 24 | 4301 | SCREW | |
| 25 | 5134 | HEXAGON NUT | |
| 26 | 5131 | WASHER | |
| 27 | 7654 | RETURN PULLEY B400 | |
| 28 | 38571 | PEDESTAL BEARING | |
| 29 | 4581 | SCREW | |
| 30 | 99285 | SUPPORTING ROLLER CONVEYOR B400 | |
| 31 | 99286 | SUPPORTING ROLLER CONVEYOR B400 | |
| 32 | 108283 | SCREW | |
| 33 | 108284 | SCREW | |
| 34 | 46115 | HEXAGON NUT | |
| 35 | 5800 | WASHER | |
| 36 | 104327 | PROTECTING SHEET | |
| 37 | 102536 | HOLDER | |
| 38 | 4178 | SCREW | |
| 39 | 181239 | SPACER BLOCK | |
| 40 | 5206 | WASHER | |
| 41 | 40183 | SUPPORT | |
| 42 | 8280 | BOLT | |
| 43 | 7889 | SPRING PIN | |
| 44 | 69665 | COVER | |
| 45 | 4179 | SCREW | |
| 46 | 104292 | PIPE | |
| 47 | 4175 | SCREW | |
| 48 | 164851 | PROTECTIVE GRID | |
| 49 | 70204 | HOOK | |
| 50 | 70203 | RUBBER ENDLESS | |
| 52 | 7535 | SPRING PIN | |
| 54 | 5210 | HEXAGON NUT | |
| 55 | 16349 | BOLT | |
| 56 | 4822 | WASHER | |
| 57 | 9851 | SPLIT PIN | |
| 58 | 1322 | BOLT | |
| 63 | 4183 | SCREW | |
| 64 | 5209 | HEXAGON NUT | |
| 65 | 123261 | BRACE | |
| 66 | 10359 | SCREW | |
| 67 | 147284 | WHEEL BRACKET | |
| 68 | 113671 | WHEEL | |
| 69 | 44145 | BOLT | |
| 70 | 5849 | SPLIT PIN | |
| 71 | 160706 | LEVER | |
| 72 | 160676 | BOLT | |
| 73 | 4219 | SCREW | |
| 74 | 4091 | WASHER | |
| 75 | 16349 | BOLT | |
| 76 | 7535 | SPRING PIN | |
| 77 | 9065 | GREASING NIPPLE | |
| 78 | 11181 | CAP | |
| 79 | 174966 | FRAME LOWER PART | |
| 80 | 174965 | FRAME UPPER PART |
