Каталог запасных частей к технике: WIRTGEN W1000L. CUTTING DRUM UNIT-BASIC
1
3
4
5
6
7
7
7
7
8
9
10
11
12
12
12
12
13
13
13
14
15
15
15
15
16
17
17
17
18
19
20
21
22
23
24
25
25
26
27
28
29
30
31
32
32
33
34
35
35
35
36
37
38
39
39
39
40
41
42
43
44
45
46
47
48
49
50

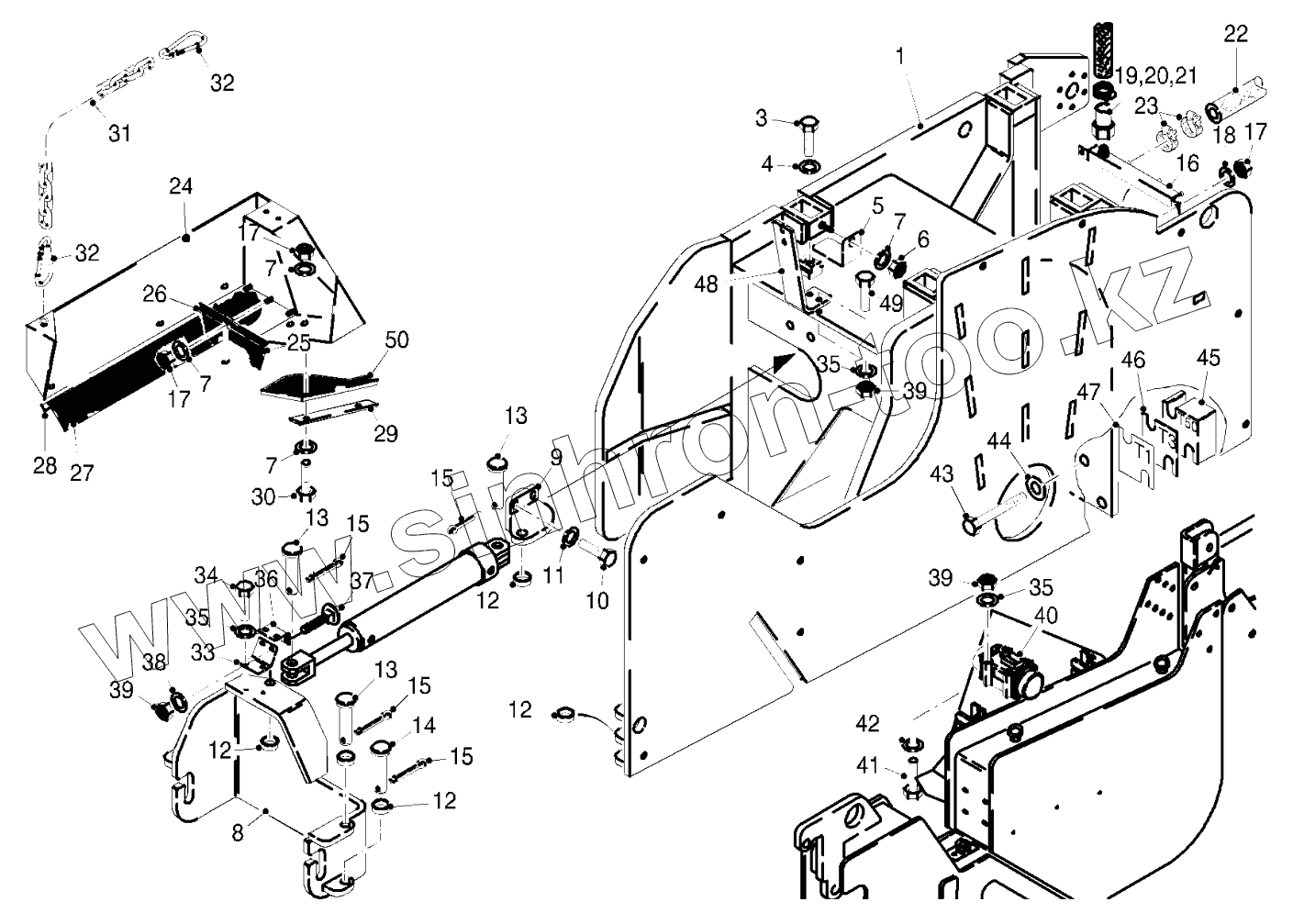

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 127880 | FRAME | |
| 2 | 57294 | T-SLOT NUT | |
| 3 | 38470 | SCREW | |
| 4 | 32111 | WASHER | |
| 5 | 123614 | BENT PART | |
| 6 | 12247 | HEXAGON NUT | |
| 7 | 5211 | WASHER | |
| 8 | 128720 | CONVEYOR SUSPENSION | |
| 9 | 134486 | CYLINDRICAL HOLDING | |
| 10 | 15717 | SCREW | |
| 11 | 4829 | WASHER | |
| 12 | 44693 | BUSHING | |
| 13 | 8939 | BOLT | |
| 14 | 14286 | BOLT | |
| 15 | 9853 | SPLIT PIN | |
| 16 | 26763 | DISTRIBUTOR PIPE | |
| 17 | 5209 | HEXAGON NUT | |
| 18 | 5207 | WASHER | |
| 19 | 9080 | PIPE | |
| 20 | 3367 | CAP NUT | |
| 21 | 3342 | CUTTING RING | |
| 22 | 39826 | PVC HOSE | |
| 23 | 3287 | HOSE CLAMP | |
| 24 | 129060 | FUNNEL | |
| 25 | 133685 | RUBBER | |
| 26 | 38613 | RAIL | |
| 27 | 133684 | RUBBER | |
| 28 | 37573 | RAIL | |
| 29 | 106922 | STRIP | |
| 30 | 4182 | SCREW | |
| 31 | 110278 | CHAIN | |
| 32 | 10745 | SPRING HOOK | |
| 33 | 130535 | HOLDER | |
| 34 | 4218 | SCREW | |
| 35 | 5274 | WASHER | |
| 36 | 110626 | HINGE | |
| 37 | 24156 | SCREW | |
| 38 | 5275 | WASHER | |
| 39 | 5269 | HEXAGON NUT | |
| 40 | 105361 | EXTERNAL VIBRATOR | |
| 41 | 4225 | SCREW | |
| 42 | 51958 | WASHER | |
| 43 | 4314 | SCREW | |
| 44 | 36126 | WASHER | |
| 45 | 128062 | DISTANCE PLATE | |
| 46 | 128063 | DISTANCE PLATE | |
| 47 | 128064 | DISTANCE PLATE | |
| 48 | 132874 | HOLDER | |
| 49 | 4223 | SCREW | |
| 50 | 147363 | RUBBER |
