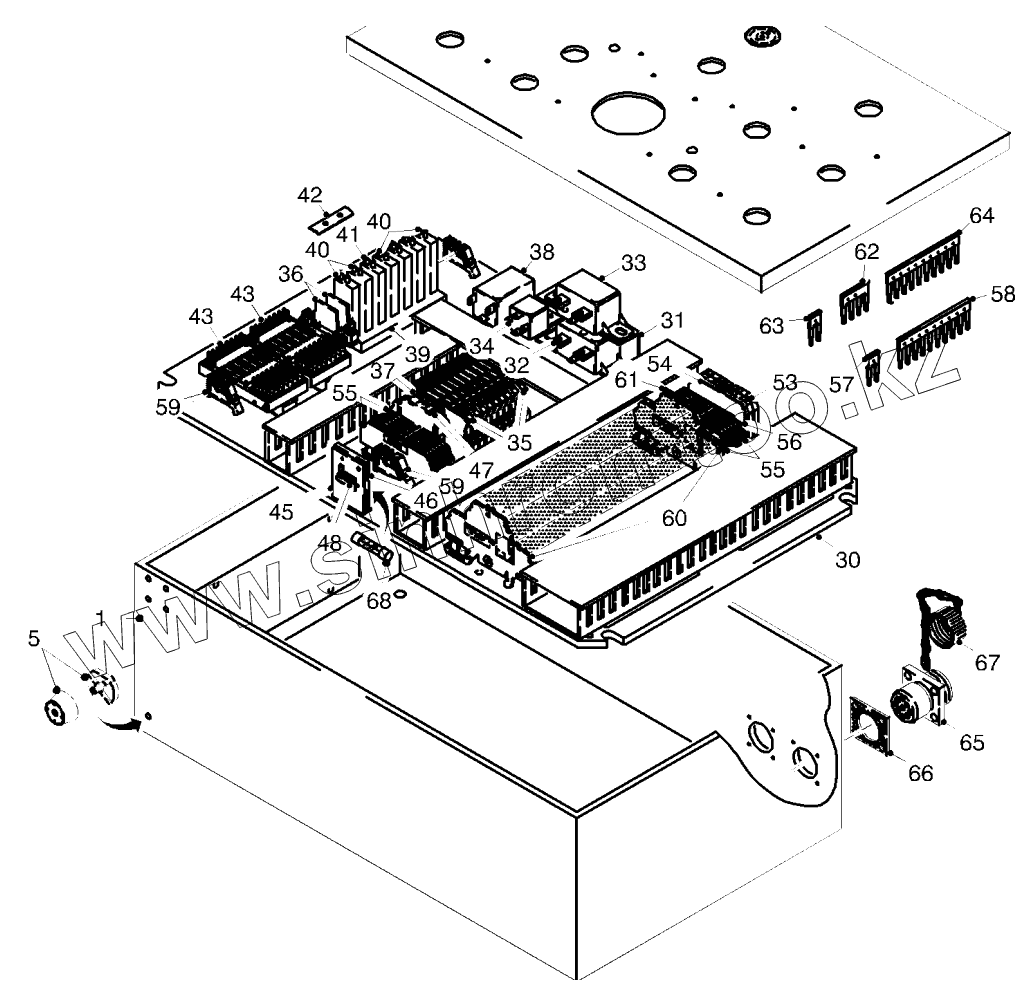

Каталог запасных частей к технике: WIRTGEN W1000L. CONTROL UNIT MOUNTING PLATE
1
5
30
31
32
33
34
35
36
37
38
39
40
40
41
42
43
43
45
46
47
48
53
54
55
55
56
57
58
59
59
60
61
62
63
64
65
66
67
68
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 170975 | ELECTRICAL CABINET PRE-DRILLED | |
| 5 | 144396 | DRAIN | |
| 30 | 174361 | CONNECTING PLATE | |
| 31 | 72949 | HOLDER | |
| 32 | 7990 | RELAY | |
| 33 | 152015 | RELAY | |
| 34 | 7993 | RELAY | |
| 35 | 115899 | RELAY COUPLING | |
| 36 | 71355 | RELAY | |
| 37 | 162499 | TIMER RELAY | |
| 38 | 11159 | BLINKER RELAY | |
| 39 | 172542 | HEADER | |
| 40 | 172548 | FUSE AUTOMAT | |
| 41 | 172549 | FUSE AUTOMAT | |
| 42 | 172543 | CONNECTING BAR | |
| 43 | 79364 | DIODE RAILING | |
| 45 | 29597 | SUPPORT | |
| 46 | 104756 | PROPORTIONAL AMPLIFIER | |
| 47 | 21465 | TERMINAL BLOCK | |
| 48 | 53863 | RESISTOR | |
| 53 | 133448 | SERIES TERMINAL | |
| 54 | 133449 | END PLATE | |
| 55 | 117286 | TERMINAL BLOCK | |
| 56 | 117287 | PLATE | |
| 57 | 117294 | JOINING ELEMENT | |
| 58 | 117295 | JOINING ELEMENT | |
| 59 | 22954 | END STOP BRACKET | |
| 60 | 117298 | TERMINAL BLOCK | |
| 61 | 117297 | PLATE | |
| 62 | 117292 | JOINING ELEMENT | |
| 63 | 117288 | JOINING ELEMENT | |
| 64 | 165397 | JOINING ELEMENT | |
| 65 | 7194 | PLUG | |
| 66 | 18641 | SEAL | |
| 67 | 7196 | DUST CAP | |
| 68 | 45996 | GLASS-FUSE |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
