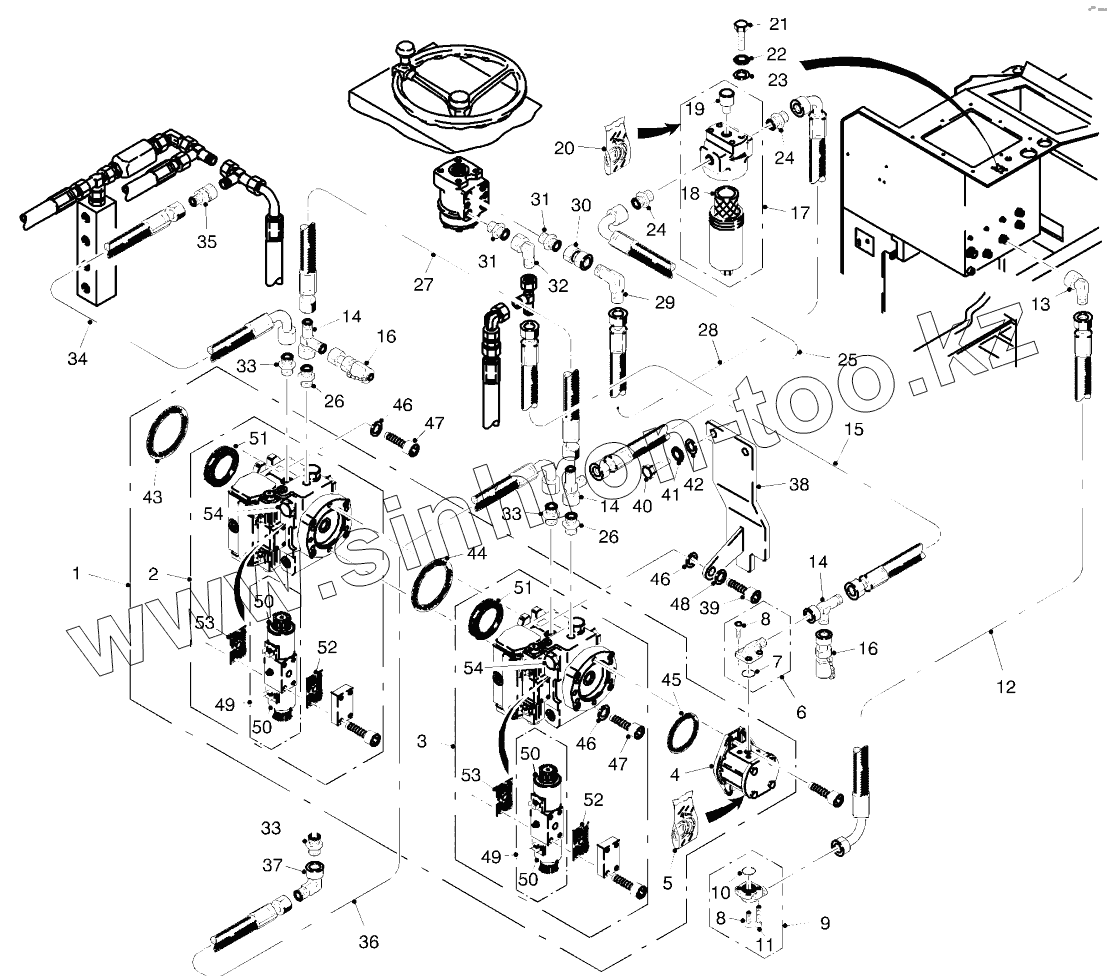

Каталог запасных частей к технике: WIRTGEN W1000L. ADVANCE DRIVE - OIL SUPPLY

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
8
9
10
11
12
13
14
14
14
15
16
16
17
18
19
20
21
22
23
24
24
25
26
26
27
28
29
30
31
31
32
33
33
33
34
35
36
37
38
39
40
41
42
43
44
45
46
46
46
47
47
48
49
49
50
50
50
50
51
51
52
52
53
53
54
54
Позиция на иллюстрации Заводской номер детали Название детали
1 146991 HYDRAULIC PUMPS
2 138837 HYDRAULIC PUMP
3 138840 HYDRAULIC PUMP
4 14975 HYDRAULIC PUMP
5 23589 SEALING KIT CPL.
6 7257 ANGLE FLANGE SCREWING
7 10917 O-RING SEAL
8 10895 SCREW
9 6405 ANGLE FLANGE SCREWING
10 10894 O-RING SEAL
11 6078 SCREW
12 10891 HYDRAULIC HOSE
13 3036 ADJUSTABLE MALE STUD ELBOW
14 3929 ADJ.MALE STUD TEE-STUD BARREL
15 16032 HYDRAULIC HOSE
16 4646 MEASURING CONNECTOR
17 68503 PRESSURE OIL-FILTER
18 74332 HYDRAULIC OIL FILTER
19 72424 CONTAMINATION INDICATOR
20 88532 SET OF SEALS
21 5940 SCREW
22 5803 WASHER
23 5800 WASHER
24 3934 MALE STUD COUPLING
25 53465 HYDRAULIC HOSE
26 3551 MALE STUD COUPLING
27 1645 HYDRAULIC HOSE
28 1705 HYDRAULIC HOSE
29 31500 EQUAL ELBOW
30 51005 STRAIGHT COUPLING
31 1499 MALE STUD COUPLING
32 31428 ADJUSTABLE MALE STUD ELBOW
33 9087 MALE STUD COUPLING
34 104263 HYDRAULIC HOSE
35 3368 REDUCING COUPLING
36 4038 HYDRAULIC HOSE
37 1116 ADJUSTABLE MALE STUD ELBOW
38 103666 SUPPORT
39 4470 SCREW
40 4179 SCREW
41 5208 WASHER
42 5206 WASHER
43 11006 O-RING SEAL
44 63608 O-RING SEAL
45 83499 O-RING SEAL
46 122019 WASHER
47 4468 SCREW
48 5195 WASHER
49 138915 AUTOMATIC CONTROLLER
50 138888 SOLENOID
51 95832 SHAFT SEAL
52 30584 SEAL
53 30585 SEAL
54 92086 PRESSURE-RELIEF VALVE
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
