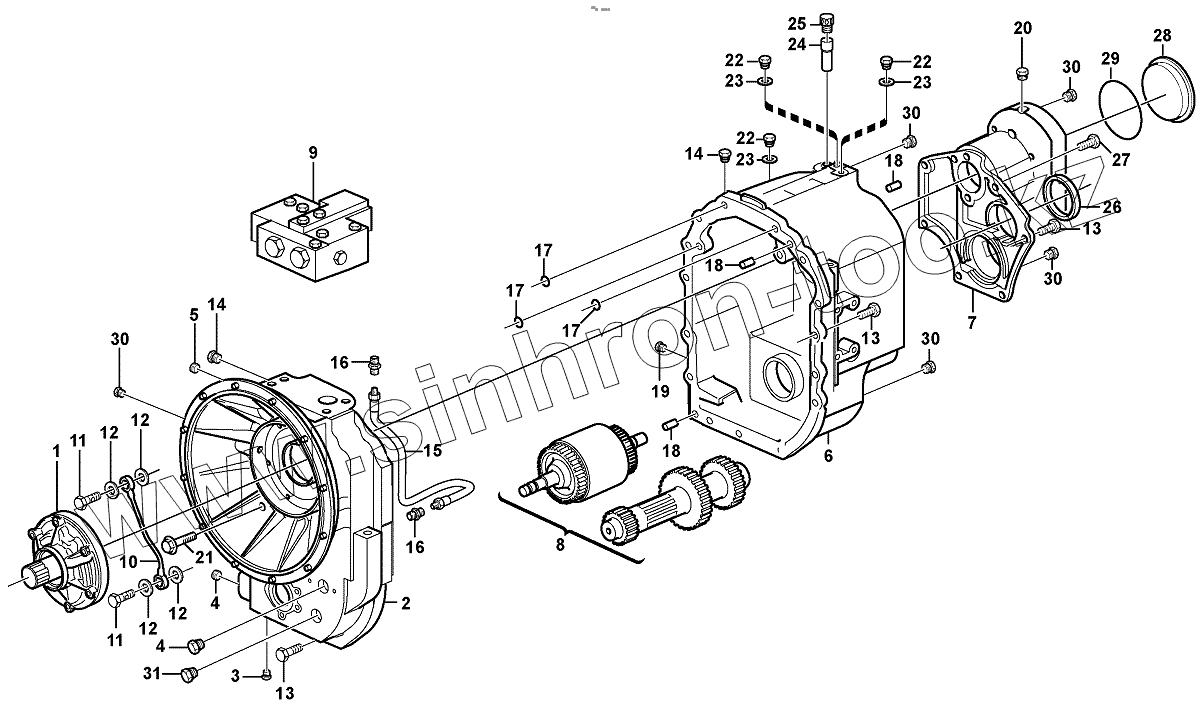

Каталог запасных частей к технике: Volvo BL71B. 16206725 Hydraulic transmission with fitting parts

Тип техники

Марка

Модель

Схема

1

2

3

4

4

5

6

7

8

8

8

8

8

9

10

11

11

12

12

12

12

13

13

13

14

14

15

16

16

17

17

17

18

18

18

19

20

21

22

22

22

23

23

23

24

25

26

27

28

29

30

30

30

30

30

Позиция на иллюстрации	Заводской номер детали		Название детали
VOE 16206725	VOE 16206725		Transmission
1	Oil pump		Oil pump
2	Housing		Housing
3	VOE 11709071		Plug
4	VOE 11712960		Rivet
5	VOE 11709070		Plug
6	Housing		Housing
7	VOE 11712463		End plate
8	Shaft with clutch		Shaft with clutch
8	Reverse Shaft		Reverse Shaft
8	Axle		Axle
8	Secondary Shaft		Secondary Shaft
8	Axle 4wd		Axle 4wd
9	Gear selector valve		Gear selector valve
10	VOE 11712465		Oil Pipe
11	VOE 11709066		Hollow screw
12	VOE 11709065		Copper Washer
13	VOE 13970948		Hexagon screw
14	VOE 11709055		Plug
15	VOE 11716784		Lub Pipe
16	VOE 11709056		Nipple
17	VOE 11709068		O-ring
18	VOE 950588		Pin
19	VOE 11709057		Plug
20	VOE 11712464		Plug
21	VOE 965225		Flange screw
22	VOE 11709061		Plug
23	VOE 11709199		Washer
24	VOE 11709063		Breather Pipe
25	VOE 11709060		Breather Cap
26	VOE 11709133		Seal
27	VOE 970809		Hexagon screw
28	VOE 11712462		Plug
29	VOE 11709074		O-ring
30	VOE 11709075		Plug
