Каталог запасных частей к технике: Volvo BL71B. 16205791 Hydraulic transmission with fitting parts

Тип техники

Марка

Модель

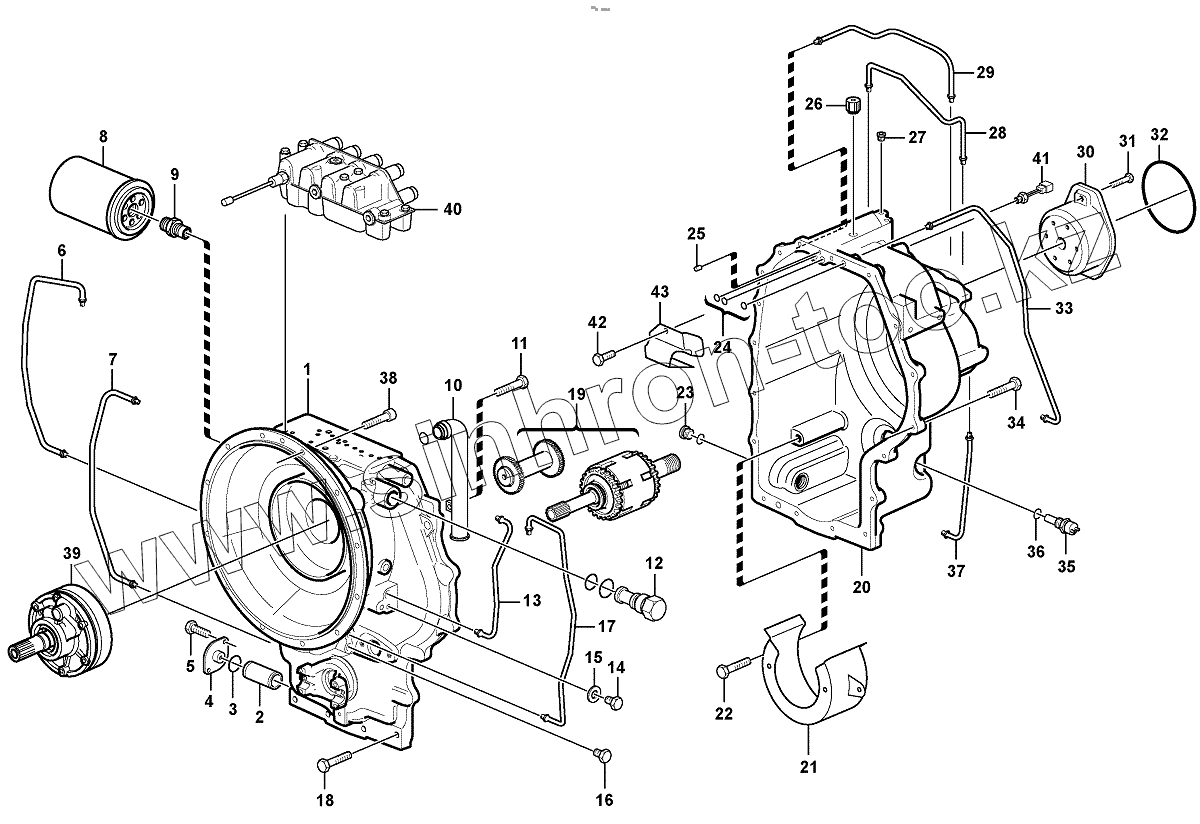

Схема

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

19

19

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

Позиция на иллюстрации	Заводской номер детали		Название детали
1	Housing		Housing
2	VOE 11709050		Oil Filter
3	VOE 11709051		O-ring
4	VOE 11709052		Cover
5	VOE 13955294		Screw
6	VOE 17200427		Pipe
7	VOE 17200433		Pipe
8	VOE 15186829		Oil filter
9	VOE 11709053		Nipple
10	VOE 11716635		Tube
11	VOE 970945		Hexagon screw
12	VOE 11712951		Valve
13	VOE 11716636		Tube
14	VOE 11709061		Plug
15	VOE 11709199		Washer
16	VOE 11709075		Plug
17	VOE 11716637		Tube
18	VOE 13970949		Hexagon screw
19	Input Shaft		Input Shaft
19	Reverse Shaft		Reverse Shaft
19	Secondary Shaft		Secondary Shaft
19	Output shaft		Output shaft
20	Housing		Housing
21	VOE 11716638		Protection
22	VOE 970945		Hexagon screw
23	VOE 11709057		Plug
24	VOE 11709068		O-ring
25	Pin		Pin
26	VOE 11709060		Breather Cap
27	VOE 11709075		Plug
28	VOE 11712950		Pipe
29	VOE 17200443		Pipe
30	VOE 11716640		Flange
31	VOE 13970947		Hexagon screw
32	VOE 11709074		O-ring
33	VOE 11716641		Tube
34	VOE 13970949		Hexagon screw
35	VOE 11716642		Sensor
36	VOE 11716643		Washer
37	VOE 11716644		Tube
38	VOE 13970947		Hexagon screw
39	Oil pump		Oil pump
40	Control valve		Control valve
41	VOE 17200758		Thermostat
42	VOE 13970943		Hexagon screw
43	VOE 17200466		Plate
