Каталог запасных частей к технике: Volvo BL71B. 11895294, 11895299. Dipper arm cylinder

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано BL60 BL61 BL61 Plus BL70 BL71 BL71 Plus BL71B

Схема > Не выбрано Repair kits for engine 11895378, 11895379 Engine 11895378, 11895379 Cylinder head 11895378, 11895379 Cylinder block 11895378, 11895379 Cylinder liner and piston 11895378, 11895379 Valve mechanism 11895378, 11895379 Timing gear casing 11895378, 11895379 Pump drive power take-off 11895378, 11895379 Crankshaft and related parts 11895378, 11895379 Flywheel housing 11895378, 11895379 Oil sump 11895347, 11895348 Engine mounting 11895378, 11895379 Engine mounting 11895378, 11895379 Lubricating oil system 11895378, 11895379 Oil filter 11895378, 11895379 Oil cooler 11895378, 11895379 Fuel pump 11895378, 11895379 Fuel filter Fuel tank with fitting parts Fuel tank Fuel system 11895378, 11895379 Fuel pipes, fuel pump 11895378, 11895379 Fuel injection pump with fitting parts 11895378, 11895379 Regulator 11895378, 11895379 Delivery pipe - injector 11895378, 11895379 Inlet manifold and exhaust manifold Exhaust system, silencer 11895378, 11895379 Turbocharger with fitting parts 11895354 Air filter 11895355 Air filter 11892012 Air filter with fitting parts 11895355 Air filter with fitting parts 11895378, 11895379 Crankcase ventilation 11892012 Radiator 11895390 Cooler protection 11892012 Expansion tank with fitting parts 11892012 Cooling system 11895390, 11895388 Cab heating 11895378, 11895379 Water pump and thermostat housing 11892012 Fan 11895382 Fan 11895378, 11895379 Belt transmission 11895361 Heater Throttle control 11895378, 11895379 Shutdown device 11895362, 11895363 Battery with assembling details 11895378, 11895379 Alternator with assembling details 11895378, 11895379 Starter motor with assembling details 11895453, 11895454, 11298357 Lighting Equipment excluding roadlight Lighting, rear Fog Support License plate lamp Interior lamp Horn 11298359, 11298360 Rotating beacon 11298303, 11298350 Windshield wiper, front 11298303 Windshield wiper, rear 11298303, 11298350 Windshield washer 11895362 Battery cable and main switch 11895363 Battery cable and main switch 11892012 Cable harness Front Cable harness between electrical distribution box, fuse box, and starter motor Fuse box 11892012 Cable Harness, return to dig Cable harness, headlight Cable harness, tail light Cable harness for transmission 11895349, 11895350 Cable harness, control panel, Rh 11895349, 11895350 Cable and wire harness, instrument panel 11298303 Cable Harness cab int. roof 11298303 Cable harness, wiper motor rear Safety valve on boom Cable harness, Loader Quick Attach 11895331,11895334, 11895335, 11895416,11895426, 11895420,11895425, Cable harness, horn for excav mechanical control Cable harness, hand tool hydraulic 11294033, 11298304 Electrical distribution box 11895364 Back-up warning unit Switch panel Switch panel Switch panel Foot switch, hammer hydraulics Stabilizer detection 11895358, 11895359 Instrument panel 11298361 Hour recorder 11298368, 11298369, 11298434 Radio kit 11298370 System for wireless electronic controlled communication (telematics) 11298371 System for wireless electronic controlled communication (telematics) Torque converter with fitting parts 16206725 Hydraulic transmission with fitting parts 16205791 Hydraulic transmission with fitting parts 16206725, 16205791 Oil filler and dipstick 16206725 Oil pump 16205791 Oil pump 16206725 Clutch shaft forward/reverse 16205791 Clutch shaft forward/reverse 16206725 Reverse and primary shaft 16205791 Reverse and primary shaft 16206725 Secondary shaft 16205791 Secondary shaft 16206725 Axle, four-wheel drive 16205791 Hydraulic clutch, 4wd 16206725 Gearshifting 16205791 Control valve 16206725 Range selector valve 16206725 Solenoid valve 4wd 16206725 Gear selector 11895349 4WD, 11895350 4WD Gear box housing with fitting parts 11895349, 11895350 Propeller shaft, mounting 11895349, 11895350 Propeller shaft, mounting 11887363, 11887362 Planet axles with fitting parts 11887362, 11895581 Planetary axle, front 11887362 Pinion 11887362 Differential , front axle 11887362 Drive axle 11887362 Wheel hub 11887362 Planetary gear 11887363 Planet shaft, rear 11887363 Pinion 11887363 Differential. Rear 11887363 Hub reduction, rear axle 11887363 Differential lock Differential lock 16206725, 16205791 Oil cooler, transmission 11887363 Multi-disc brake, rear Wheel brake, rear 11294033 Brake pedal 11887363 Parking brake 11892012, 11298303, 11294033 Parking brake Steering column with fitting parts Steering system 11887362 Steering system Frame 11895217, 11891515 Protecting plates 11895228, 11895227, 11895225, 11895224, 11895226 Counterweight 11895141, 11895143, 11895138, 11895142 Wheel 11298304, 11298303 Cab body: roof and floor panel. 11294033 Cab body: roof and floor panel. Cab mounting block 11895354, 11895355, 11895568, 11895569 Engine hood 11895568, 11895569, 11895355, 11895354 Lock device, engine hood Radiator casing Splashguards, protective plates 11298340, 11298433 Fenders 11891325 Fender, front 11294033, 11298304, 11298432 Step handle canopy LH, RH, 11298335 Door with fitting parts 11298381, LH, 11298381, RH, 11298334 11294033, 11298444, 11298355 Rear view mirror 11298350, 11298303 Glass panes 11298303 Windows LH, RH, 11298335, 11298381, 11298334 Windows Operator's seat 11895354,11895568, 11895355,11895569 Insulating matting. 11294033 Insulating matting. 11895388 Assembly hoses: Evaparator, receiver drier, condenser. 11298308, 11298307 Heater and air conditioning installation 11298308 Air conditioning unit, cooling and heater 11298307 Cab heater 11298349 Interior components 11294033 Instrument panel 11294033 Instrument panel 11298413, 11298416 Instrument panel 11298344, 11298383, 11298382, 11298345, 11298346 Instrument panel 11298417 Instrument panel 11298353, 11298354 Interior components 11298416 Cover for Pilot Excavator Controls 11298365 Interior components Toolbox 11891152 Tools 11892012, 11895511, 11895522, 11895512 Sign plates and decals 11895534 Sign plates and decals Sign plates and decals Hydraulic oil tank, with fitting parts Hydraulic system, return line 11895349, 11895350 Hydraulic system, suction line 11892012, 11895299 Hydraulic system, excavator Hydraulic oil cooler 11895413 Hydraulic system, hammer 11895412 Hydraulic system, hammer Hydraulic system, stabiliser legs 11895420, 11895423, 11895425. Hydraulic system, excavator 11895396, 11895400 Hydraulics loader (lift & tilt) 11895400 Hydraulic system, loader 11895466, 11895458, 11895459 Hydraulic system, loader 11895396, 11895400, 11895464 Hydraulic system, loader 11895473, 11895474, 11895458 Hydraulic system, boom 11895294, 11895469, STD DIPPER Hydraulic system, excavator 11895299, 11895469, 11895415, EXT DIPPER Hydraulic system, excavator Pressure limiting valve Pressure limiting valve Control valve with fitting parts. 11895309, 11895310, 11895311, 11895312. Valve body with fitting parts 11895309, 11895310, 11895311, 11895312. Control valve 11895325, 11895326. Valve body with fitting parts 11895325, 11895326. Control valve 11895396, 11895400 Automatic self-level function 11895459 Safety valve (dipper arm cylinder) 11895309, 11895310, 11895311, 11895312. Valve section 11895309, 11895310, 11895311, 11895312. Valve section 11895325, 11895326. Valve section 11895309, 11895310, 11895311, 11895312. Valve section 11895325, 11895326. Valve section 11895309, 11895310, 11895311, 11895312. Valve section 11895325, 11895326. Valve section 11895309, 11895310, 11895311, 11895312. Valve section 11895325, 11895326. Valve section 11895309, 11895310, 11895311, 11895312. Valve section 11895325, 11895326. Valve section 11895309, 11895310, 11895311, 11895312. Valve section 11895325, 11895326. Valve section 11895325, 11895326,11895309, 11895310, 11895311. Valve section 11895325, 11895326, 11895309, 11895310, 11895311. Valve section 11895325, 11895326, 11895309, 11895310, 11895311. Valve section 11895325, 11895326, 11895309, 11895310, 11895311. Valve section 11895349, 11895350 Hydraulic pump 11895325, 11895326. Joystick, incl. hoses and fittings 11895421, 11895325, 11895326, 11895423 Servo valve 11895309, 11895311, 11895310, 11895312., 11895325, 11895326 Loader controls 11895325, 11895310, 11895312, 11895338, 11895339, 11895326 Servo system, Excavator controls 11895341 Servo system, Excavator controls 11895326 Distribution valve 11895311, 11895312 Pedal 11298416 Excavator controls 11895331, 11895334, 11895335, 11895416, 11895426 Excavator controls 11895331, 11895334, 11895335 Excavator lock system Hydraulic system, sideshift 11895575 Optional hydraulic equipment 11895639 Boom suspension system 11895439 Hydraulic attachment bracket digger 11895440 Hydraulic attachment bracket digger 11895636 Hydraulic cylinder, quick attachment 11895636 Hydraulic attachment bracket 11895636 Hydraulic attachment bracket 11895294, 11895299. Bucket cylinder 11891563 Multi-purpose bucket 11895396, 11895400 Pins for mounting bucket 11895396, 11895400, 11895539 Lifting framework with assembly parts 11895396, 11895400 Mechanical self levelling tilt mechanism 11895396, 11895400 Hydraulic cylinder 11895396, 11895400 Hydraulic cylinder Boom swing system Swing cylinder Swing system Stabiliser cylinder Stabilisers 11895294, 11895299. Boom cylinder 11895294, 11895469, 11895473, 11895458, 11895474, 11895459, 11895477 Boom and dipper arm 11895299 Excavator boom, extendible dipper arm 11895294, 11895299. Dipper arm cylinder 11895299 Extendable dipper cylinder

1

1

2

3

4

5

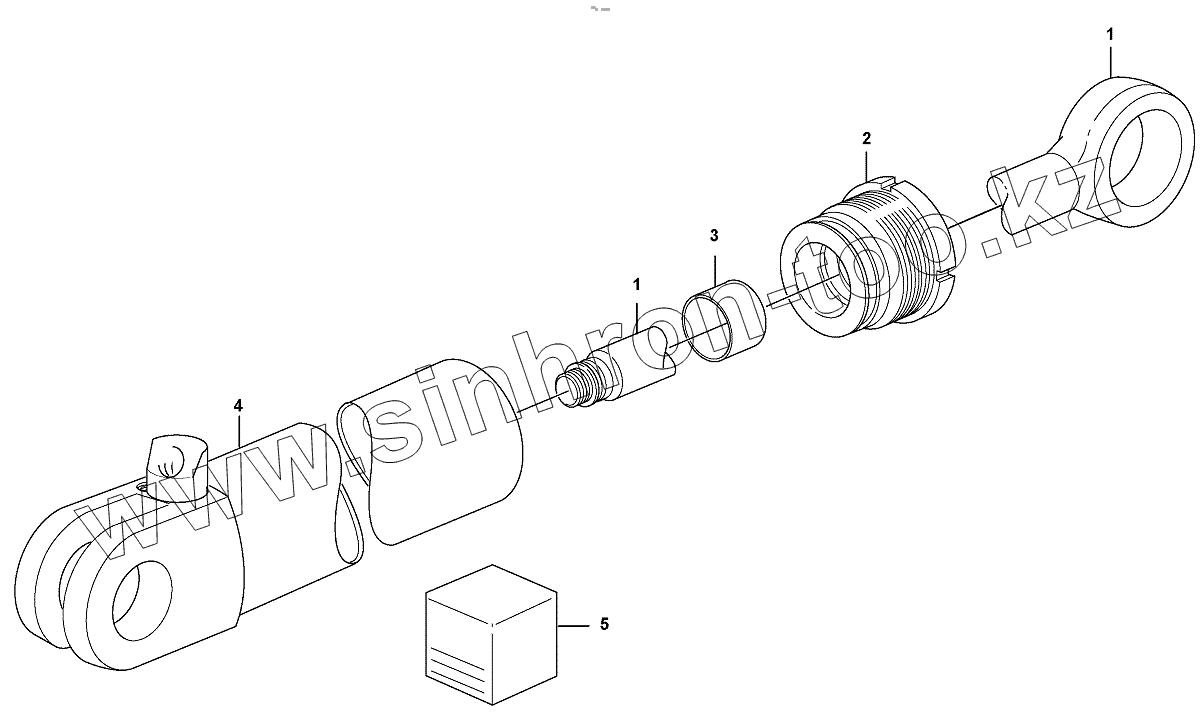

Позиция на иллюстрации	Заводской номер детали		Название детали
VOE 15649973	VOE 15649973		Hydraulic cylinder
1	VOE 15191706		Piston rod
2	VOE 15173496		Piston rod guide
3	VOE 15173330		Piston rod seal
4	Cylinder tube		Cylinder tube
5	VOE 15173332		Sealing kit

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
