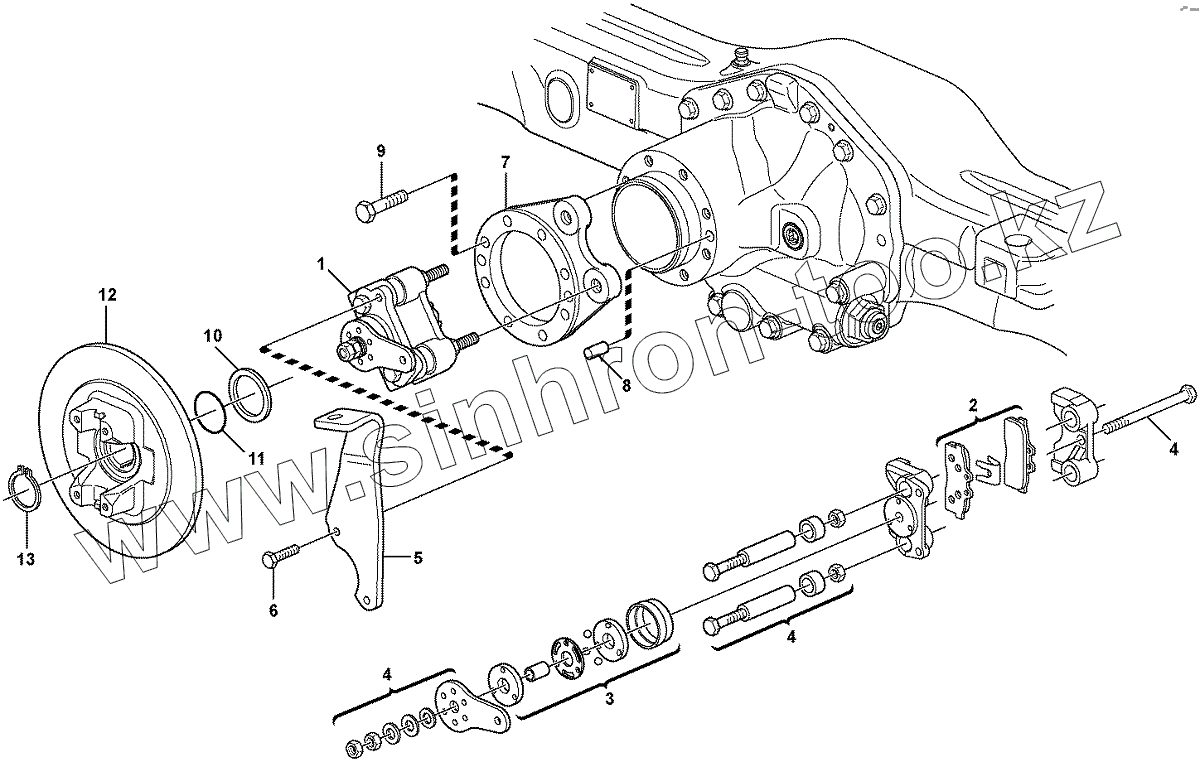

1
2
3
4
4
4
5
6
7
8
9
10
11
12
13
Позиция на иллюстрации
Заводской номер детали
Название детали
1
VOE 11716600
Brake Caliper
2
VOE 11716655
Repair Kit
3
VOE 11716654
Repair Kit
4
VOE 11716652
Repair Kit
5
VOE 11716604
Bracket
6
VOE 11716605
Screw
7
VOE 11716601
Anchorage
8
VOE 11716603
Pin
9
VOE 11716602
Screw
10
VOE 11709304
Washer
11
VOE 11709303
O-ring
12
VOE 11716606
Brake Disc
13
VOE 11709300
Lock Ring
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
Дополнительная информация
×
Название:
Номер:
Примечание:
