Каталог запасных частей к технике: Volvo BL71 Plus. Lubricating oil system

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано BL60 BL61 BL61 Plus BL70 BL71 BL71 Plus BL71B

Схема > Не выбрано PRODUCT SIGN PLATE Repair kits for engine Engine Cylinder head Cylinder block Crankcase ventilation Pistons Valve mechanism Timing gear casing and gears Crankshaft and related parts Flywheel housing Oil sump Engine mounting 11891209 Engine suspension. Lubricating oil system Oil filter Oil cooler Fuel tank with fitting parts 11891566 Fuel pump 11891566 Box Fuel system Fuel pump Fuel injection pump with fitting parts Regulator Fuel lines and injectors Inlet manifold and exhaust manifold Exhaust system, silencer Turbocharger with fitting parts Air filter with fitting parts Air filter 11891529 Air filter Radiator with fitting parts Expansion tank with fitting parts Cooling system Water pump and thermostat housing 11880104, 11891478 Fan Belt transmission 11891429, 11891430 Engine heater. 11880104, 11298197, 11298207 Regulator control 11298197, 11298207 Hand throttle Shutdown device Battery box with fitting parts 11888804 Alternator with assembling details 11888804 Starter motor with assembling details 11891002, 11891248, 11891249, 11891000, 11891050, 11890104 Lighting 11891291(REAR), 11891292(FORW) Work lights 11891002, 11891000, 11891248, 11891249, 11891050, 11298197, 11298204, 11298207, 11298208 Lighting, rear 11891001 License plate lamp 11298034 Position pointer and anchorage, license plate Inner lamp 11880104, 11891377 Horn 11891261, 11891262 Rotating beacon 11298197, 11298203 Windshield wiper, front 11298197, 11298203 Windshield wiper, rear 11298197, 11298203 Windshield washer 11891392 (SINGLE), 11891391 (DOUBLE), 11880104 Battery cable and main switch Cable harness, engine 11891209 Cable harness, transmission. 11891255 Cable harness, transmission. 11298197, 11298207, 11880104 Cable Harness Lighting Cab Ext. 11298197 Cable Harness cab int. roof Cable harness chassis Cable harness rear valve block 11880104, 11298197 Other cables 11891000, 11891002, 11891050, 11891248, 11891249 Cable harness, tail light 11891209 Cable harness, panel 11891255 Cable harness, panel 11891209 Cable harness, control panel right 11891255 Cable harness, control panel right 11298197 Cable harness heater and air conditioning 11891354 Wire harness 4 in 1 11891333 Cable harness, hand tool hydraulic 11891479, 11891480, 11891481, 11891482, 11891487, 11891409 Cable harness, Pilot Excavator Controls 11891238 Cable harness, Loader Quick Attach 11880104, 11298197, 11891255, 11891479 - 11891482, 11891487, 11891409 Electrical distribut.unit and control unit 11891278, 11891255, 11891280, 11891209, 11880104 Instrument panel Switch 11891332 Anti-theft Kit STD, 11891294 Foot switch and electric power outlet Torque converter with fitting parts 11887381, 11891255 Hydraulic transmission with fitting parts 11887380, 11891209 Hydraulic transmission with fitting parts 11887381, 11891255 Oil filler and dipstick 11891209 Oil filler and dipstick 11891255 Oil pump 11887380, 11891209 Oil pump 11887381, 11891255 Clutch shaft forward/reverse 11897380, 11891209 Clutch shaft forward/reverse 11897381, 11891255 Reverse and primary shaft 11887381, 11891255 Secondary shaft 11887380, 11891209 Secondary shaft 11887381. 11891255 Hydraulic clutch, 4wd 11887380, 11891209 Axle, four-wheel drive 11887381, 11891255 Control valve 11887380, 11891209 Gearshifting 11897380, 11891209 Range selector valve 11897380, 11891209 Solenoid valve 4wd 11891209 Gear selector, 4-wheel drive 11891209, 11891255 Gear box housing with fitting parts 11891209, 11891255 Propeller shaft, mounting 11891209, 11891255 Propeller shaft 11887363, 11887362 Planet axles with fitting parts 11887362 Planetary axle, front 11887362 Pinion 11887362 Differential , front axle 11887362 Drive axle 11887362 Wheel hub 11887362 Planetary gear 11887363 Planet shaft, rear 11887363 Pinion 11887363 Differential. Rear 11887363 Hub reduction, rear axle Differential lock Differential lock 11891209, 11891255 Oil cooler, transmission Multi-disc brake, rear 11880104, 11891209, 11891255 Wheel brake, rear 11298197, 11298207 Brake system Parking brake 11880104, 11298197, 11298207 Parking brake 11298009, 11298010, 11880104, 11298021 Steering column with fitting parts Steering system Control valve Frame 11891580 Protecting plates 11880104, 11891317, 11891358, 11891359 Counterweight 11891271 FRONT, 11891271 REAR, 11891474 FRONT, 11891474 REAR Wheel 11891477 FRONT, 11891477 REAR Wheel 11891313 FRONT, 11891313 REAR Wheel 11298197, 11298207, 11298160 Cab body: roof and floor panel FRONT, REAR Cab mounting block 11880104, 11298197, 11298207, 11298239 Engine hood Radiator casing Splashguards, protective plates 11891000, 11891325, 11891340 Fender, front 11298197, 11298207 Fenders 11891514 Small rear fender. Foot step 11298207 Step handle canopy 11298197 Door with fitting parts 11298164, 11298166, 11891000, 11891050, 11891248, 11891249, 11891002 Rear view mirror 11298197, 11298203 Glass panes 11298197 Windows 11298018 Interior components 11891216, 11891099, 11891217, 11891100, 11891314 Operator seat with fitting parts 11891376, 11891314 Operator's seat. 11891110, 11888868 Operator's seat 11298018 Air ducts 11298197 Air ducts 11298197 Cab heater 11298197, 11298018 Radiator and control 11298197 Cab heater with connectors 11298018 Air conditioning 11298018 Evaporator, assembly 11298018 Assembly hoses: Evaparator, receiver drier, condenser. 11298197, 11298207, 11880104, 11298032, 11298167 Instrument panel 11891303, 11891488 Radio bracket 11298032 Vandalism kit 11298197, 11298016, 11298207, 11298280, 11298168 Interior components Cover for servo valves 11891479, 11891480, 11891482, 11891487, 11891481, 11891409 Cover for Pilot Excavator Controls Toolbox 11891152 Tool 11891000, 11891050, 11891094 Stop block holder 11891584 Toolbox 11880104, 11891000, 11891050, 11891002, 11891249 Sign plates and decals WARNING Decals 11880104, 11891298, 11891324 Hydraulic oil tank Hydraulic system, suction line, filter Hydraulic system, return line Hydraulic oil cooler Hydraulic system, feed line 11891294 Hydraulic system, hammer 11891375 Pipes for hammer attachment Hydraulic system, stabiliser legs 11880104, 11891354 Hydraulics loader (lift & tilt) 11880104, 11891273, 11891354, 11891374 Hydraulic system, excavator 11880104, 11891354 Hydraulic system loader Hydraulic system, boom Hydraulic system dipper arm 11880104, 11891041, 11891524 Hydraulic system, bucket 11891273 Hydraulic system extendible dipper arm 11891326, 11891500 Hydraulic system safety valve boom and dipper arm cylinder 11891327,11891500 Hydraulic system loader safety valves Hydraulic system pilot excavator controls 11880104 SE- Loader controls with safety accumulator 11891479, 11891482 Excavator Controls ISO 11891480, 11891487 Excavator Controls SAE 11891481, 11891409 Excavator Controls SAE/ISO 11886145 Valve body Pressure limiting valve Automatic self-level function 11891326, 11891500 Safety valve boom and dipper arm cylinder 11891326, 11891327, 11891500 Safety valve loader Hydraulic pump with fitting parts Hydraulic pump 11880104, 11891354, 11891374, 11891499 Servo valve 11886631, 11886632, 11886633 Servo valve 11891273 Pedal Hydraulic system, sideshift 11891333 Optional hydraulic equipment 11891293 Boom suspension system 11891442 Optional hydraulic equipment 11891299 Attachment bracket, mechanical 11891323, 11891351, 11891362, 11891348 Hydraulic attachment bracket digger 11891351, 11891362 Hydraulic attachment bracket digger 11891323, 11891348 Hydraulic attachment bracket digger 11891323, 11891362 Hydraulic attachment bracket 11891238 Hydraulic attachment bracket 11891238 Hydraulic cylinder, quick attachment 11891238 Hydraulic attachment bracket 11891318, 11891320, 11891043, 11891321, 11891319 Bucket, straight with teeth 11891202, 11891091, 11891092, 11891192, 11891093 Bucket, straight with teeth 11891194, 11891265, 11891264 Bucket, straight with teeth 11891295, 11891296 Bucket, straight lip without teeth 11891540, 11891565 Bucket, straight lip without teeth 11891018, 11891265, 11891282, 11891015, 11891016 Multi-purpose bucket 11891002 Legal kit for Italy 11891541 Multi-purpose bucket 11891423 Multi-purpose bucket 11891018 Hydraulic cylinder 11891350 Transport bracket without front bucket 11891282, 11891176 Fork arm 11891017 Retainer for hammer 11891017 Hammer 11891498 1000 MM, 11891504 1200 MM, 2805036 1450 MM Forks (optional) 11845236, 11845237, 11845238, 11845239, 11845240 Hammer Lifting framework with assembly parts 11880104, 11891000, 11891050 Lifting framework with assembly parts 11891561, 11891539 Pins for mounting bucket 11883976, 11883975 Hydraulic cylinder, lifting. Hydraulic cylinder, tilt Swing system Boom swing system Swing cylinder Lock cylinder 11880104, 11891269 Stabilisers Stabiliser cylinder 11891273, 11891109, 11891061 Excavator boom, extendible dipper arm 11891041, 11891524, 11891109, 11891061 Boom and dipper arm Boom cylinder Dipper arm cylinder 11891273 Extendible dipper cylinder

1

2

3

4

5

6

7

8

9

10

11

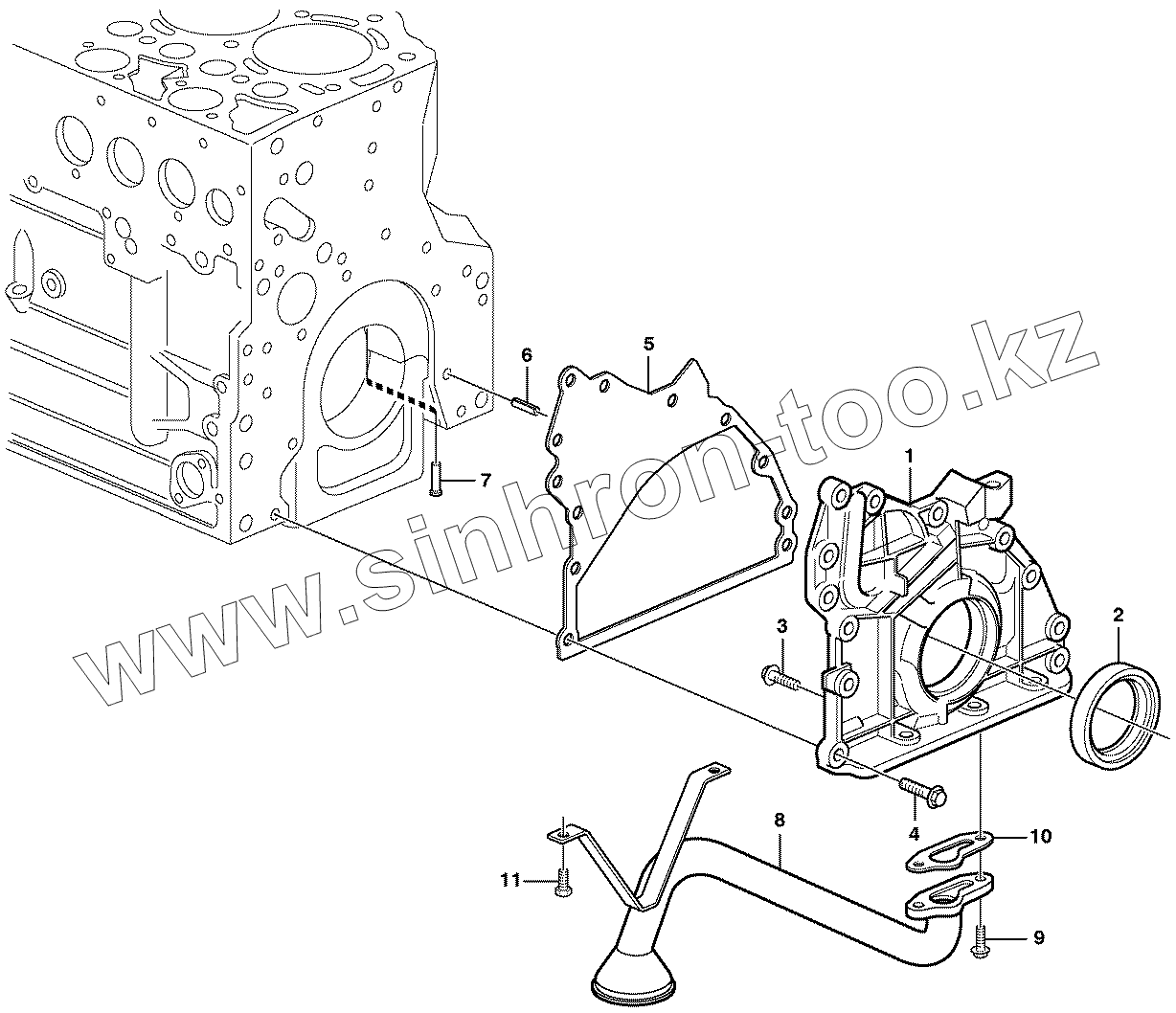

Позиция на иллюстрации	Заводской номер детали		Название детали
1	VOE 20726088		Lub Oil Pump
2	VOE 20459168		Crankshaft Seal
3	VOE 20451738		Screw
4	VOE 20412324		Screw
5	VOE 20537029		Gasket
6	VOE 20405603		Spring Pin
7	VOE 20405561		Pstn Cool Jet
8	VOE 20977068		Oil Pipe
9	VOE 13949578		Screw
10	VOE 20405888		Gasket
11	VOE 20405792		Screw

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
