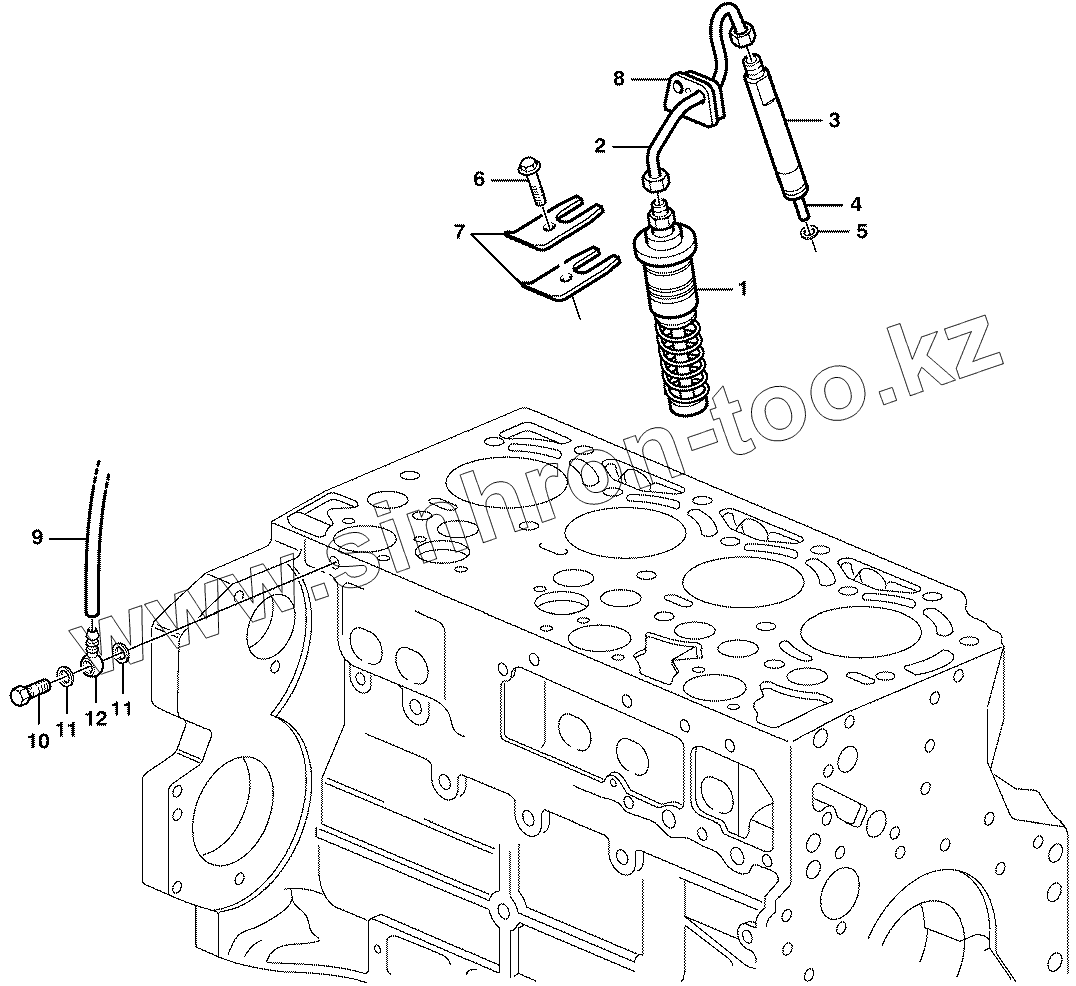

VOE 20729227
1
2
3
4
5
6
7
8
9
10
11
11
12
Позиция на иллюстрации
Заводской номер детали
Название детали
VOE 20729227
VOE 20729227
Sealing ring
1
Injection pump
Injection pump
2
VOE 20460095
Fuel pipe
3
VOE 24425916
Injector
4
VOE 24425919
Nozzle
5
VOE 11700426
Seal
6
VOE 20405559
Screw
7
VOE 11700424
Retainer
8
VOE 11700487
Rubber Seal
9
Fuel hose
Fuel hose
10
VOE 20405847
Valve
11
VOE 13969011
Gasket
12
VOE 20459906
Nipple
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
Дополнительная информация
×
Название:
Номер:
Примечание:
