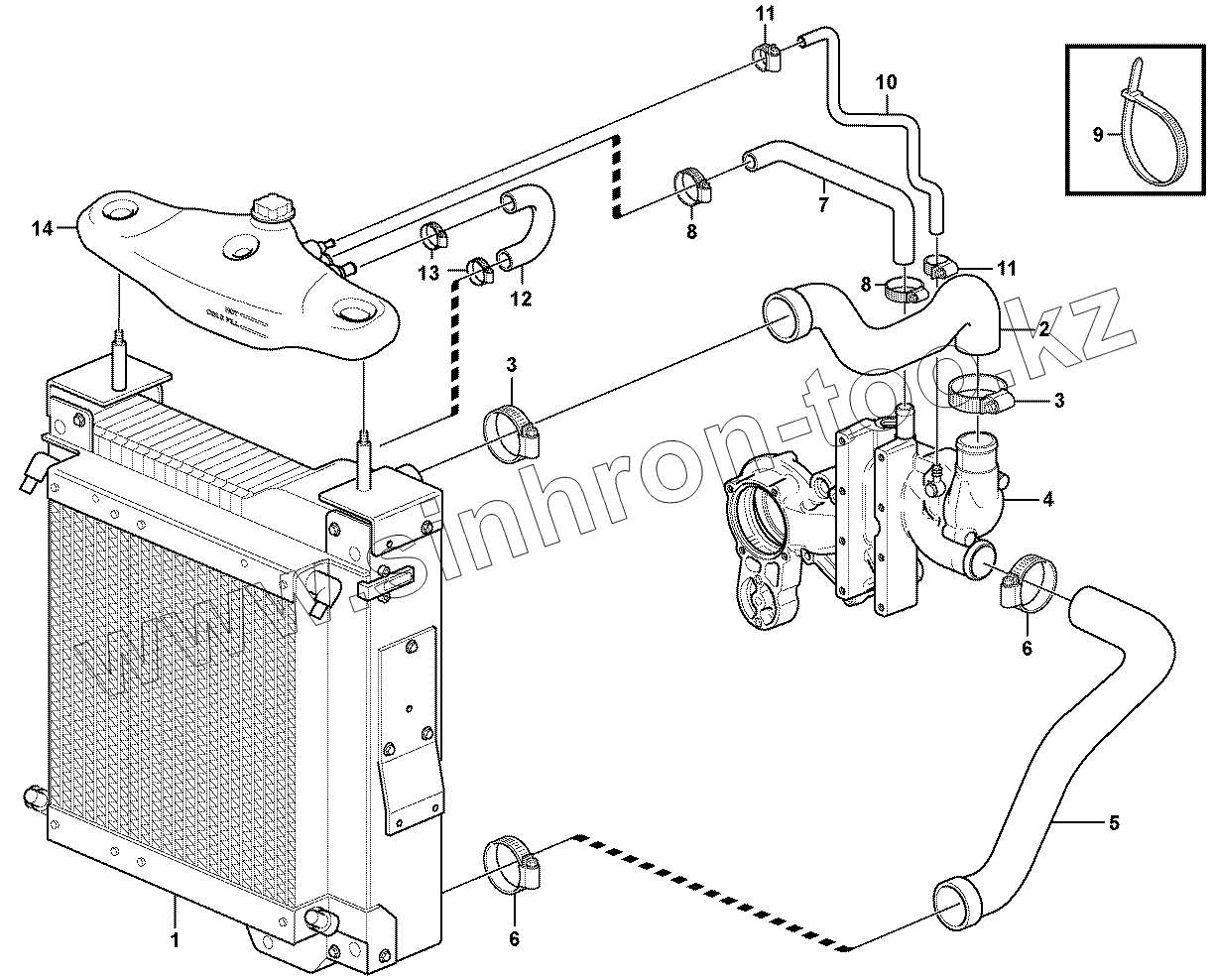

1
2
3
3
4
5
6
6
7
8
8
9
10
11
11
12
13
14
Позиция на иллюстрации
Заводской номер детали
Название детали
1
Radiator
Radiator
2
VOE 11881130
Radiator Hose
3
VOE 981604
Hose Clamp
4
Water Pump
Water Pump
5
VOE 11888695
Hose
6
VOE 981604
Hose Clamp
7
VOE 11882659
Hose
8
VOE 981708
Hose Clamp
9
VOE 14016673
Strip Clamp
10
VOE 11882757
Hose
11
VOE 943469
Hose Clamp
12
VOE 11882756
Hose
13
VOE 981705
Hose Clamp
14
Expansion Tank
Expansion Tank
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
Дополнительная информация
×
Название:
Номер:
Примечание:
