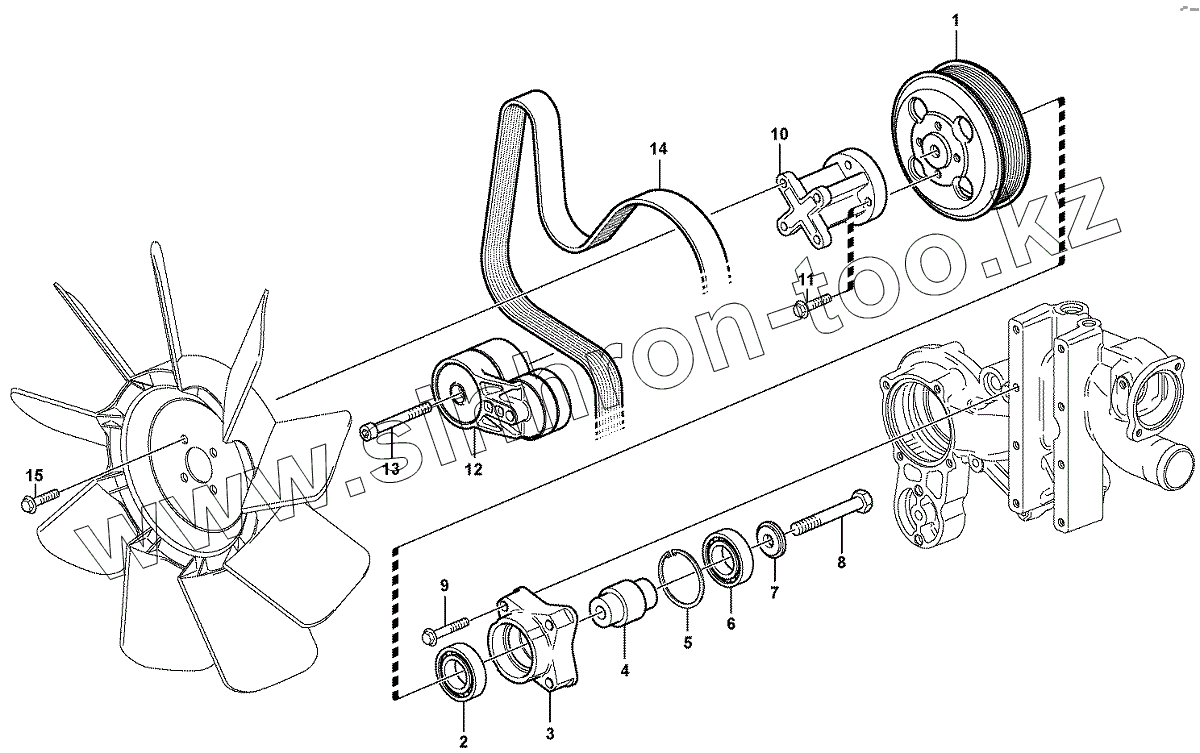

VOE 21018766
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Позиция на иллюстрации
Заводской номер детали
Название детали
VOE 21018766
VOE 21018766
Fan bracket
1
VOE 20459864
Pulley
2
VOE 20450749
Ball Bearing
3
VOE 21009704
Bearing Bracket
4
VOE 21009699
Shaft
5
VOE 20459025
Retaining ring
6
VOE 20450750
Ball Bearing
7
VOE 20999732
Washer
8
VOE 20450754
Screw
9
VOE 20459263
Screw
10
VOE 20405988
Adapter
11
VOE 20405504
Screw
12
VOE 20909227
Belt Tensioner
13
VOE 20555065
Screw
14
VOE 11709636
V-belt
15
VOE 20405885
Screw
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
Дополнительная информация
×
Название:
Номер:
Примечание:
