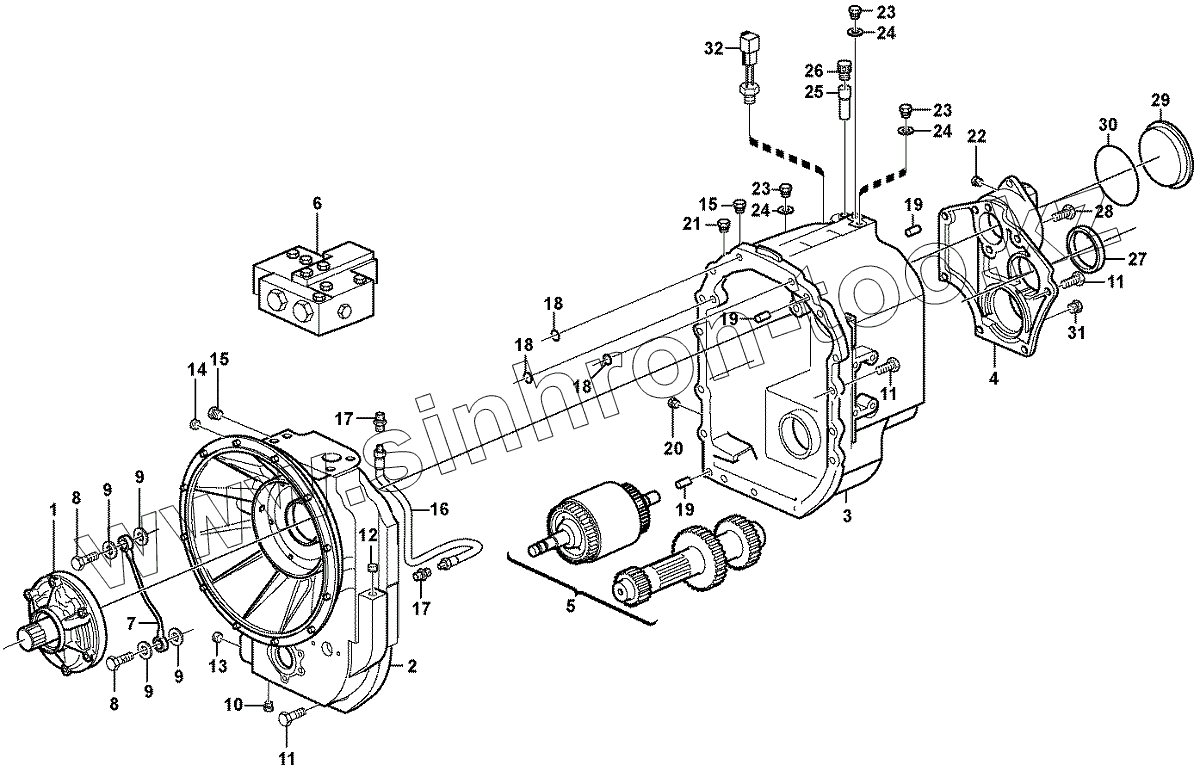

Каталог запасных частей к технике: Volvo BL71 Plus. 11887380, 11891209 Hydraulic transmission with fitting parts

Тип техники

Марка

Модель

Схема

Reverse Shaft

1

2

3

4

5

6

7

8

8

9

9

9

9

10

11

11

11

12

13

14

15

15

16

17

17

18

18

18

19

19

19

20

21

22

23

23

23

24

24

24

25

26

27

28

29

30

31

32

Позиция на иллюстрации	Заводской номер детали		Название детали
VOE 11887380	VOE 11887380		Transmission
Secondary Shaft	Secondary Shaft		Secondary Shaft
Axle	Axle		Axle
Reverse Shaft	Reverse Shaft		Reverse Shaft
1	Oil pump		Oil pump
2	VOE 11716782		Housing
3	VOE 11716783		Housing
4	VOE 11712463		End plate
5	Shaft with clutch		Shaft with clutch
6	Gear selector valve.		Gear selector valve.
7	VOE 11712465		Oil Pipe
8	VOE 11709066		Hollow screw
9	VOE 11709065		Copper Washer
10	VOE 11709071		Plug
11	VOE 13970948		Hexagon screw
12	VOE 11709200		Plug
13	VOE 11712960		Rivet
14	VOE 11709070		Plug
15	VOE 11709055		Plug
16	VOE 11716784		Lub Pipe
17	VOE 11709056		Nipple
18	VOE 11709068		O-ring
19	VOE 950588		Pin
20	VOE 11709057		Plug
21	VOE 11716639		Plug
22	VOE 11709200		Plug
23	VOE 11709061		Plug
24	VOE 11709199		Washer
25	VOE 11709063		Breather Pipe
26	VOE 11709060		Breather Cap
27	VOE 11709133		Seal
28	VOE 13970951		Hexagon screw
29	VOE 11712462		Plug
30	VOE 11709074		O-ring
31	VOE 11709075		Plug
32	VOE 11881160		Temp Sensor

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
