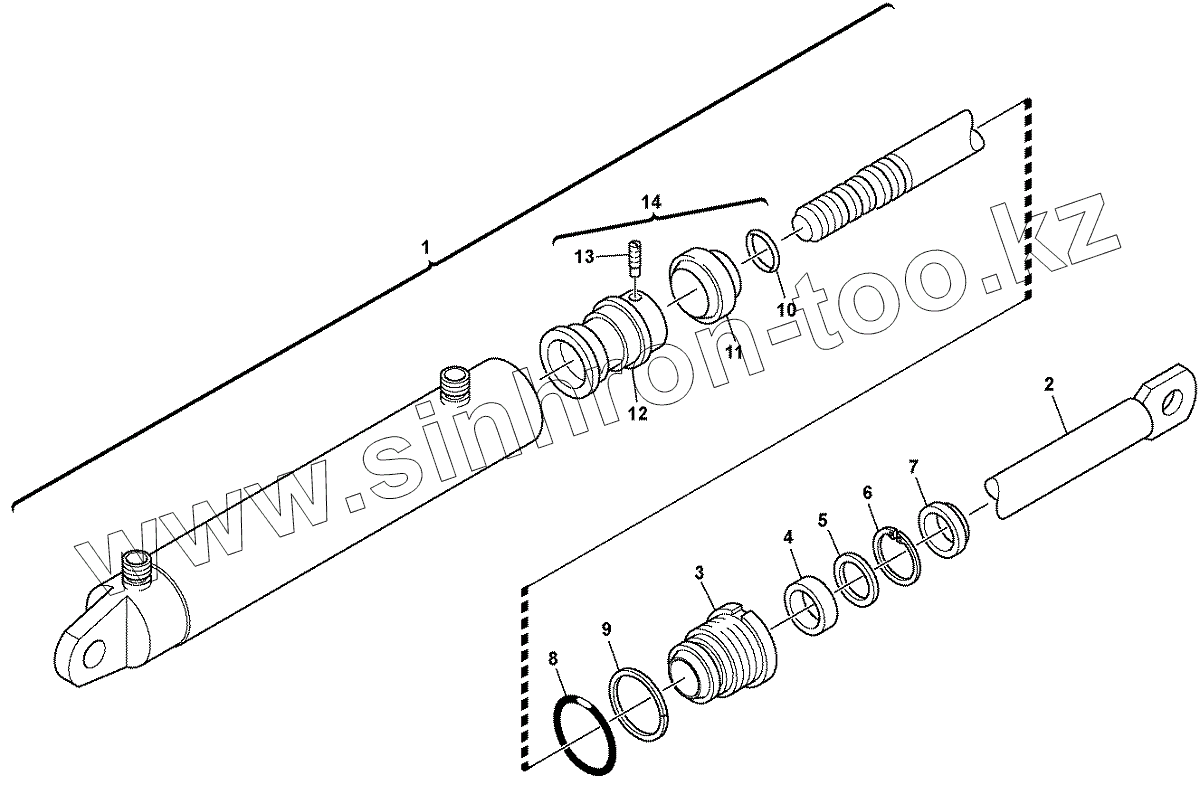

Каталог запасных частей к технике: Volvo BL71. 11891238 Hydraulic cylinder, quick attachment

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано BL60 BL61 BL61 Plus BL70 BL71 BL71 Plus BL71B

Схема > Не выбрано PRODUCT SIGN PLATE Repair kits for engine Engine 11883246, 11885148, 11887322 Cylinder head 11883246, 11885148, 11887322 Cylinder block 11883246, 11885148, 11887322 Crankcase ventilation Pistons 11883246, 11885148, 11887322 Valve mechanism 11883246, 11885148, 11887322 Timing gear casing and gears 11883246, 11885148, 11887322 Crankshaft and related parts 11883246, 11885148, 11887322 Flywheel housing 11883246, 11885148, 11887322 Oil sump 11883246, 11885148, 11887322 Engine mounting Engine mounting 11883246, 11885148, 11887322 Lubricating oil system 11883246, 11885148, 11887322 Oil filter 11883246, 11885148, 11887322 Oil cooler 11883246, 11885148, 11887322 Fuel pump 11883246, 11885148, 11887322 Fuel tank, fuel pipes 11883246, 11885148, 11887322 Fuel injection pump with fitting parts 11883246, 11885148, 11887322 Regulator 11883246, 11885148, 11887322 Fuel lines and injectors 11883246, 11885148, 11887322 Inlet manifold and exhaust manifold Exhaust system, silencer 11883246, 11885148, 11887322 Turbocharger with fitting parts Air filter with fitting parts Air filter Cooling system Cooling system incl. expansion tank Radiator with fitting parts 11883246, 11885148, 11887322 Water pump and thermostat housing Fan and installation components 11883246, 11885148, 11887322 Belt transmission 11891429, 11891430 Engine oil preheating 11880002, 11294005 E PROD, 11294005 L PROD, 11298197 Regulator control 11294005, 11298197 Hand throttle 11883246, 11885148 Shutdown device 11882593, 11891392, 11882594, 11891391 Battery box with fitting parts Alternator with assembling details Starter motor with assembling details 11891246, 11891002, 11891247, 11891248, 11891049, 11891249, 11891000, 11891050, 11880005 Lighting 11891291, 11891292 Work lights 11891002, 11891246, 11891247, 11891248, 11298197 Lighting, rear 11891001 License plate lamp 11298034 Position pointer and anchorage, license plate Inner lamp 11880005, 11891377 Horn 11891261, 11891262 Rotating beacon 11298012, 11298028, 1128197, 11298203 Windshield wiper, front 11298028, 11298197 Windshield wiper, rear 11298028, 11298012, 11298197 Windshield washer 11882593 (SINGLE), 11882594 (DOUBLE), 11891392 (SINGLE), 11891391 (DOUBLE) Battery cable and main switch Cable harness, engine Cable harness, transmission. 11891255 Cable harness, transmission. SER NO -11966 Cable Harness Lighting Cab Ext. 11298197, SER NO 11967- Cable Harness cab int. roof Cable harness chassis Cable harness rear valve block Other cables S/N - 13173, SER NO -11966, 11891246, 11891247, 11891002, 11891248, Cable harness, tail light SER NO 11967-, 11891246, 11891247 Cable harness, tail light S/N 13174 -, 11891000/002/049/050/248/249 Cable harness, tail light SER NO -11966 Cable harness, panel 11891209 Cable harness, panel 11891255 Cable harness, panel SER NO -11966 Cable harness, control panel right 11891209 Cable harness, control panel right 11891255 Cable harness, control panel right 11298028, 11298197 Cable harness heater and air conditioning 11891349, 11891354 Wire harness 4 in 1 11891333 Cable harness, hand tool hydraulic 11891479, 11891480, 11891481, 11891482, 11891487, 11891409 Cable harness, Pilot Excavator Controls 11891238 Cable harness, Loader Quick Attach 11891209, 11891255, 11891479, 11891480, 11891481, 11891482, 11891487, 11891409 Electrical distribut.unit and control unit 11891278, 11891279, 11891280, STD, 11891255 Instrument panel Switch 11891332 Anti-theft Kit STD, 11891294 Foot switch and electric power outlet Torque converter with fitting parts 11891209 S/N - 14669 Hydraulic transmission with fitting parts 11887380, 11891209 S/N 14670 - Hydraulic transmission with fitting parts 11890341, 11888337, 11891255 Hydraulic transmission with fitting parts 11891255 S/N 14670 - Hydraulic transmission with fitting parts 11884310, 11890341, 11888337, 11887381, 11887380 Oil filler and dipstick 11891209 S/N - 14669 Oil pump 11887380, 11891209 S/N 14670 - Oil pump 11890341, 11888337, 11891255 S/N - 14669 Oil pump 11891255 S/N 14670 - Oil pump 11891209 S/N - 14669 Clutch shaft forward/reverse 11897380, 11891209 S/N 14670 - Clutch shaft forward/reverse 11884310, 11890341, 11888337, 11887381, 11891255 Clutch shaft forward/reverse 11891209 Reverse and primary shaft 11884310, 11890341, 11888337, 11887381, 11891255 Reverse and primary shaft 11891209 S/N - 14669 Secondary shaft 11887380, 11891209 S/N 14670 - Secondary shaft 31884310, 11890341, 11887381, 11888337, 11891255 Secondary shaft 11891209 Hydraulic clutch, 4wd 11887380, 11891209 S/N 14670 - Shaft, four wheel drive 11884310, 11890341, 11887381, 11888337, 11891255 Hydraulic clutch, 4wd 11891209 Gearshifting 11887380, 11891209 S/N 14670 - Gearshifting 11884310, 11890341, 11887381, 11888337, 11891255 Control valve 11897380, 11891209 Range selector valve 11891209, 11891224 S/N 14670 - Range selector valve 11891209 Solenoid valve 4wd S/N - 14669, S/N 14670 -, 11891209 Gear selector 11891209, 11891255 Gear box housing with fitting parts 11891209, 11891255 Propeller shaft, mounting S/N - 10469, S/N 10470 -, 11891209, 11891255 Propeller shaft 11883883, 11890329 Planet axles with fitting parts 11887363, 11887362, S/N 14670 - Planet axles with fitting parts 11883883, 11887362 S/N 14670 - Planetary axle, front 11891270 Pinion S/N 14670 - Pinion 11880005, 11891270 Differential , front axle 11891270 S/N 14669 -, 11880005 S/N 14670 - Drive axle 11880005, 11891270 Wheel hub 11880005, 11891270 Planetary gear 11891270 Planet shaft, rear 11880005 S/N 14670 - Planet shaft, rear 11891270 Pinion S/N 14670 - Pinion 11891270 Differential. Rear Differential. Rear 11891270 Wheel hub S/N 14670 - Hub reduction, rear axle 11891270 Planetary gear 11891270 Differential lock S/N 14670 - Differential lock 11880005 S/N 14670 - Differential lock S/N - 14669, S/N 14670 - Oil cooler, transmission Brake operation rear Multi-disc brake, rear S/N 14670 - Multi-disc brake, rear 11880005, 11891209, 11891255, S/N - 14669 Wheel brake, rear 11880005, 11891209, 11891255, S/N 14670 - Wheel brake, rear 11294005, 11298197, 11880005 Brake system S/N 14670 - Parking brake 11880005, 11298014, 11298197, 11880005 S/N 14670 - Parking brake 11298009, 11298010, 11880005, 11298021 Steering column with fitting parts Steering system S/N 14670 - Steering system Control valve Frame STD 105 KG, 11891317 FOR ITALY, 11891359 202 KG, 11891358 202+133 KG Counterweight 11891270 FRONT, -”-REAR SER NO -10997, -”-REAR SER NO 10998-, 11891270 Wheel 11891271 FRONT, 11891271 REAR, 11891474 FRONT, 11891474 REAR Wheel 11891477 FRONT, 11891477 REAR Wheel 11891313 FRONT, 11891313 REAR, AGRICULTURAL Wheel 11294005, 11298197, 11298207, 11891255 Cab body: roof and floor panel FRONT, REAR Cab mounting block 11880005, 11298197 Engine hood Radiator casing 11298028, 11298029, 11298197 Fenders 11891325 Fender, front Splashguards, protective plates 11298029 Step handle canopy Foot step 11298028, 11298197 Door with fitting parts 11294005, 11298164, 11298013, 11298166 Rear view mirror 11298197, 11891000, 11891002, 11891049, 11891050, 11891248, 11891249 Rear view mirror 11294005, 11298028, 11298197, 11298012, 11298203 Glass panes 11294005, 11298197 Windows 11298018, 11298028 Interior components 11891099: S/N -12052; 11881100: S/N -12884, 11891110: S/N -11835; 11891216: S/N -11668; 11891217: S/N -11711, 11891376: S/N -11718 Operator seat with fitting parts 11891216 S/N 11669-, 11891099 S/N 12053-, 11891217 S/N 11712-, 11891100 S/N 12885-, 11891110 S/N 11836- Operator's seat 11891376 S/N 11719- Operator's seat 11891216 S/N -11668, 11891099 S/N -12052, CLOTH SEATS FOR CABS Operator's seat 11891217 S/N -11711, 11891100 S/N -12884, ROPS Operator's seat 11891110 S/N -11835, CABS Operator's seat, heated, air suspensioned. 11298018, 11298028, 11298197 Heating system 11298018 Air ducts 11298028, 11298197 Air ducts 11298028, 11298197 Cab heater 11298028, 11298197, 11298018 Radiator and control NEW, OLD, 11298028, 11298197 Cab heater with connectors 11298018 Air conditioning 11298018 Evaporator, assembly 11298018 Assembly hoses: Evaparator, receiver drier, condenser. 11294005, 11298028, 11298032, 11880005, 11298197 Instrument panel 11891303, 11891488 Radio bracket 11298032 Vandalism kit 11294005, 11298028, 11298016, 11298197 Interior components S/N - 14669, S/N 14670 -, 11880005 Cover for servo valves 11891479, 11891480, 11891482, 11891487, 11891481, 11891409 Cover for Pilot Excavator Controls SER NO -11564 Toolbox SER NO 11565- Toolbox 11891152 Tool Stop block holder STD EUROPE, GERMANY ONLY, ITALY ONLY, UK & EIRE ONLY Sign plates and decals WARNING Decals STD, 11891298, 11891324, SER NO - 11066, 11068-11070, 11074-11085, 11087-11089, 11093. Hydraulic oil tank STD, 11891298, 11891324, Ser No 11067, 11071 - 11073, 11086. 11090 - 11092. 11094 - Hydraulic oil tank Hydraulic system, suction line, filter Ser No 11067, 11071 - 11073, 11086. 11090 - 11092. 11094 -, SER NO - 11066, 11068-11070, 11074-11085, 11087-11089, 11093, S/N - 14669 Hydraulic system, return line S/N 14670 - Hydraulic system, return line S/N - 14669 Hydraulic oil cooler S/N 14670 - Hydraulic oil cooler 11880005 S/N - 14669, 11891349, 11891354 Hydraulic system, feed line 11880005 S/N 14670 - Hydraulic system, feed line 11891294 Hydraulic system, hammer 11891375 Pipes for hammer attachment Ser No - 11066, 11068 - 11070, 11074 - 11089, 11091 - 11111, 11116 - 11132, 11135, 11142 - 11145. , Ser No 11067, 11071 -11073, 11090, 11112 - 11115, 11133 - 11134, 11136 - 11141, 11146 - Hydraulic system, stabiliser legs 11880005, 11891349, 11891354 Hydraulics loader (lift & tilt) 11891311, 11880005, 11891273, 11891410, 11891349, 11891354, 11891374 Hydraulic system, excavator 11891272, 11891349, 11880005 S/N - 14669, 11891311, 11891374, 11891354, 11880005 S/N 14670 - Hydraulic system loader 11891273, 11891041, 11891410 S/N - 14669 Hydraulic system, boom 11880005, S/N 14670 - Hydraulic system, boom 11891273, 11891041, 11891410 Hydraulic system dipper arm 11880005, S/N 14670 - Hydraulic system dipper arm 11891273 S/N - 14669 Hydraulic system, bucket 11891273 S/N 14670 - Hydraulic system, bucket 11891041, 11891410 Hydraulic system, bucket 11880005, 11891041, 11891524, S/N 14670 - Hydraulic system, bucket 11891273 Hydraulic system extendible dipper arm Hydraulic system, lock cylinder 11891326 Hydraulic system safety valve boom and dipper arm cylinder 11885237, 11887461, 11891327 Hydraulic system loader safety valves 11891479, 11891480, 11891481, 11891482, 11891487, 11891409 Hydraulic system pilot excavator controls 11891272, 11891311, 11891349, 11891354, 11891374 Loader controls S/N 12839, 12840, 12857, 12866, 12867, 12892 - 12894, 12905 - 12910, 12912, 12915, 12916, 12924 - 12929, 12955, 12974 - 12977, 12987, 12988, 12930, 13041 -, 11880005 Loader controls with safety accumulator 11891479, 11891482 Excavator Controls ISO 11891480, 11891487 Excavator Controls SAE 11891481, 11891409 Excavator Controls SAE/ISO 11882463, 11885591, 11886725, 11886727 S/N 14670 - Valve body 11886145 Valve body Inlet valve 11988513, 11988521 Valve section Valve section 11715633 Valve section 11988514, 11988515, 11988517, 11988518 Valve section 11715626, 11715627, 11715629, 11715630 Valve section 11715708, 11715709, 11715710, 11715822, 11715711, 11715712 Valve section 11988516, 11988519 Valve section 11715628, 11715631 Valve section Valve section 11715632 Valve section Exhaust valve Pressure limiting valve S/N 12839, 12840, 12857, 12866, 12867, 12892 - 12894, 12905 - 12910, 12912, 12915, 12916, 12924 - 12929, 12955, 12974 - 12977, 12987, 12988, 12930, 13041 - 11880005 Pressure limiting valve S/N 12839, 12840, 12857, 12866, 12867, 12892 - 12894, 12905 - 12910, 12912, 12915, 12916, 12924 - 12929, 12955, 12974 - 12977, 12987, 12988, 12930, 13041 - 11880005 Self level function 11891326 Safety valve boom and dipper arm cylinder 11891327 Safety valve loader Hydraulic pump with fitting parts SER NO -11701, EXCL 11642, 11681-11699 Hydraulic pump SER NO 11702-, INCL 11642, 11681-11699 Hydraulic pump 11891272, SER NO -11210 11891311 Servo valve 11891349, 11891354, 11891374, SER NO 11211- 11891311, 11880005 S/N 14670 - Servo valve 11886631, 11886632, 11886633 Servo valve 11891162, 11891167, 11891322 Controls Pedal SER NO -10987 11891273, SER NO 10988- 11891273, 11891410 Hydraulic system, sideshift 11891333 Optional hydraulic equipment 11891293 S/N - 14669 Boom suspension system 11891293 S/N 14670 - Boom suspension system 11891299 Attachment bracket, mechanical 11891323, 11891351, 11891362 Hydraulic attachment bracket digger 11891351, 11891362 Hydraulic attachment bracket digger 11891323, 11891348 Hydraulic attachment bracket digger 11886515, 11887349, 11891323, 11891362 Hydraulic attachment bracket 11891323, 11891362 Hydraulic cylinder, quick attachment 11891238 Hydraulic attachment bracket 11891238 Hydraulic cylinder, quick attachment 11891238 Hydraulic attachment bracket 11891192 S/N - 14669, 11891093 S/N - 14669, 11891093 S/N 14670 -, 11891192 S/N 14670 -, (BACKHOE) Bucket, straight with teeth 11891202, 11891091, 11891092, 11891321, 11891043, S/N 14670 - Bucket, straight with teeth 11891318, 11891320, S/N 14670 - Bucket, straight with teeth 11891321 S/N - 14669, 11891320 S/N - 14669, 11891043 S/N - 14669, 11891319, 11891091 S/N - 14669, CBACKHOE) Bucket, straight with teeth 11891194, 11891265, 11891264, (LOADER) Bucket, straight with teeth 11891295, 11891296, (BACKHOE) Bucket, straight lip without teeth 11891540, 11891565 Bucket, straight lip without teeth 11891018 EARLY PROD, 11891265, 11891282, 11891015, 11891016 Multi-purpose bucket 11891018 LATE PROD, 11891265, 11891282, 11891015, 11891016 Multi-purpose bucket 11891541 Multi-purpose bucket 11891018 (MULTI-PURPOSE BUCKET) Hydraulic cylinder 11891355, 11891356, 11891357, (BACKHOE) Bucket, straight with teeth 11891350 Transport bracket without front bucket 11891282, 11891176 Fork tine kit 11891017, 11891331, 11891546 Retainer for hammer 11891294 Hammer Lifting framework with assembly parts STD S/N - 14669, 11891272, 11891311, 11891349, 11891354, 11891374, 11891000, 11891050 11891561, 11891539 Pins for mounting bucket 11880005, S/N 14670 -, 11891000, 11891050 Lifting framework with assembly parts 11883975, 11883976, 11891272, 11891311, 11891349, 11891354 Hydraulic cylinder, lifting. 11885484, 11883977, 11891272, 11891311, 11891327, 11891349, 11891354 Hydraulic cylinder, tilt Swing system Boom swing system Swing cylinder 11884579, 11888096 S/N 14670 - Lock cylinder Stabilisers STD, SER NO - 10418, 11891269, STD, SER NO 10419 - Stabiliser cylinder 11884737, 11886266, 11888239 S/N 14670 -, 11891273 Excavator boom, exendible dipper arm 11891041, 11891410, 11891061, 11891524 Boom and dipper arm 11891273, 11891041, 11891410, 11880005 Boom cylinder 11891273, 11891041, 11891410, 11880005 Dipper arm cylinder Bucket cylinder SER NO -11573, 11575, 11577, 11581-11588, 11590-11591, 11593-11595, 11597, 11610-11611, 11613-11614, 11617-11622 11885113, SER NO 11574, 11576, 11578-11580, 11589, 11592, 11596, 11598-11609, 11612, 11615-11616, 11623- 11886251, 11891273, 11891273 Extendible dipper cylinder

1

2

3

4

5

6

7

8

9

10

11

12

13

14

Позиция на иллюстрации	Заводской номер детали		Название детали
1	VOE 11157115		Hydraulic cylinder
2	VOE 11999364		Piston rod
3	VOE 11999363		Pstn Rod Guide
4	VOE 4784040		Seal
5	VOE 11708612		Spacer
6	VOE 914519		Snap Ring
7	VOE 11999360		Scraper
8	VOE 925067		O-ring
9	VOE 13962550		Back-up ring
10	VOE 13960215		O-ring
11	VOE 11999361		Piston seal
12	VOE 11999365		Piston
13	VOE 13962970		Screw
14	VOE 11999362		Sealing Kit

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
