Каталог запасных частей к технике: Volvo BL70. Engine mounting

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано BL60 BL61 BL61 Plus BL70 BL71 BL71 Plus BL71B

Схема > Не выбрано PRODUCT SIGN PLATE Engine 11883246, 11885148, 11887320 Cylinder head 11883246, 11885148, 11887320 Cylinder block 11883246, 11885148, 11887320 Crankcase ventilation 11883246, 11885148, 11887320 Pistons 11883246, 11885148, 11887320 Valve mechanism 11883246, 11885148, 11887320 Timing gear casing and gears 11883246, 11885148, 11887320 Crankshaft and related parts 11883246, 11885148, 11887320 Flywheel housing 11883246, 11885148, 11887320 Oil sump 11883246, 11885148, 11887320 Engine mounting Engine mounting 11883246, 11885148, 11887320 Lubricating oil system 11883246, 11885148, 11887320 Oil filter 11883246, 11885148, 11887320 Oil cooler 11883246, 11885148, 11887320 Fuel pump Fuel tank, fuel pipes 11883246, 11885148, 11887320 Fuel injection pump with fitting parts 11883246, 11885148, 11887320 Regulator 11883246, 11885148, 11887320 Fuel lines and injectors 11883246, 11885148, 11887320 Inlet manifold and exhaust manifold Exhaust system, silencer 11883246, 11885148, 11887320 Turbocharger with fitting parts Air filter with fitting parts Air filter Cooling system Cooling system incl. expansion tank Radiator with fitting parts 11883246, 11885148, 11887320 Water pump and thermostat housing Fan and installation components 11883246, 11885148, 11887320 Belt transmission 11891429, 11891430 Engine oil preheating 11880002, 11294005 E PROD, 11294005 L PROD, 11298196, 11298198 Regulator control 11294005, 11298198 Hand throttle 11883246, 11885148 Shutdown device 11882593, 11891392, 11882594, 11891391 Battery box with fitting parts Alternator with assembling details Starter motor with assembling details 11891291, 11891292 Work lights 11891014, 11880002, 11298196, 11298198 Direction indicator Inner lamp 11880002, 11891014, 11891377 Horn 11891261, 11891262 Rotating beacon 11298012, 11298028, 11298196, 11298203 Windshield wiper, front 11298028, 11298196 Windshield wiper, rear 11298028, 11298012, 11298196, 11298203 Windshield washer 11882593 (SINGLE), 11882594 (DOUBLE), 11891392 (SINGLE), 11891391 (DOUBLE) Battery cable and main switch Cable harness, engine 11891209, 11891224 Cable harness, transmission. 11891255 Cable harness, transmission. SER NO -10704 Cable Harness Lighting Cab Ext. Cable Harness cab int. roof 11298196, 11298198, SER NO 10705- Cable Harness cab int. roof Cable harness chassis Cable harness rear valve block Other cables SER NO -10704 Cable harness, panel 11891209, 11891224, SER NO 10705- Cable harness, panel 11891255 Cable harness, panel SER NO -10704 Cable harness, control panel right 11891209, 11891224 Cable harness, control panel right 11891255 Cable harness, control panel right 11298028, 11298196 Cable harness heater and air conditioning 11891333 Cable harness, hand tool hydraulic 11891506, 11891507, 11891508, 11891509, 11891510, 11891511 Cable harness, Pilot Excavator Controls 11891238 Cable harness, Loader Quick Attach 11891209, 11891255, 11891506, 11891507, 11891508, 11891509, 11891510, 11891511 Electrical distribut.unit and control unit 11891278, 11891279, 11891280, 11880002, 11891209, 11891224 Instruments panel Switch 11891332 Anti-theft Kit STD, 11891090 Foot switch and electric power outlet Torque converter with fitting parts 11891209 Hydraulic transmission with fitting parts 11887380, 11891209 S/N 11145 - Hydraulic transmission with fitting parts 11890339, 11887379, 11891224 Hydraulic transmission with fitting parts 11890341, 11888337, 11891255 Hydraulic transmission with fitting parts 11891255 S/N 11145 - Hydraulic transmission with fitting parts 11891209 S/N - 11144, 11891255 S/N - 11144, 11891255 S/N 11145 -, 11891209 S/N 11145 - Oil filler and dipstick 11890339, 11887379, 11891224 Oil filler and dipstick 11891209 S/N - 11144 Oil pump 11887380, 11891209 S/N 11145 - Oil pump 11890339, 11887379, 11891224 Oil pump 11891255 S/N - 11144 Oil pump 11891255 S/N 11145 - Oil pump 11891209 S/N - 11144 Clutch shaft forward/reverse 11897380, 11891209 S/N 11145 - Clutch shaft forward/reverse 11880339, 11887379, 11891224 Clutch shaft forward/reverse 11884310, 11890341, 11888337, 11887381, 11891255 Clutch shaft forward/reverse 11891209, 11891224 Reverse and primary shaft 11884310, 11890341, 11888337, 11887381, 11891255 Reverse and primary shaft 11891209 S/N - 11144 Secondary shaft 11887380, 11891209 S/N 11145 - Secondary shaft 11884310, 11890341, 11887381, 11888337, 11891255 Secondary shaft 11891209 Hydraulic clutch, 4wd 11887380, 11891209 S/N 11145 - Shaft, four wheel drive 11884310, 11890341, 11887381, 11888337, 11891255 Hydraulic clutch, 4wd 11891209 Gearshifting 11890339, 11887379, 11891224 Gearshifting 11887380, 11891209 S/N 11145 - Gearshifting 11884310, 11890341, 11887381, 11888337, 11891255 Control valve 11891209, 11891224 S/N - 11144 Range selector valve 11891209, 11891224 S/N 11145 - Range selector valve 11891209 Solenoid valve 4wd S/N - 11144, S/N 11145 -, 11891209 Gear selector, 4-wheel drive S/N - 11144, S/N 11145 -, 11891224 Gear selector, 2-wheel drive 11891209, 11891255, 11891224 Gear box housing with fitting parts 11891209, 11891255, 11891224 Propeller shaft, mounting 11883171, 11886355, 11883170, 11888492, 11891224 2WD, 11891209, 11891224, 11891255 Propeller shaft 11883883, 11885275, 11884150, 11885845, 11891283, 11891289, 11891389, 11891390 Planet axles with fitting parts 11887363, 11887362, S/N 11145 - Planet axles with fitting parts 11883883, 11885275, 11887362 S/N 11145 -, 11891283, 11891289, 11891389, 11891390 Planetary axle, front 11883883, 11885275, 11891283, 11891289, 11891389, 11891390 Pinion S/N 11145 - Pinion 11880002, 11891283, 11891289, 11891389, 11891390 Differential , front axle S/N - 11144, S/N 11145 -, 11891283, 11891289, 11891389, 11891390 Drive axle 11880002, 11891283, 11891289, 11891389, 11891390 Wheel hub 11880002, 11891283, 11891289, 11891389, 11891390 Planetary gear 11884150, 11885845, 11891283, 11891289, 11891389, 11891390 Planet shaft, rear S/N 11145 - Planet shaft, rear 11891283, 11891289, 11891389, 11891389 Pinion S/N 11145 - Pinion 11891283,11891289, 11891389, 11891390 Differential. Rear Differential. Rear 11891283, 11891289, 11891389, 11891390 Wheel hub S/N 11145 - Hub reduction, rear axle 11884150, 11885845, 11891283, 11891289, 11891389, 11891390 Planetary gear 11891283, 11891289, 11891389, 11891390 Differential lock S/N 11145 - Differential lock 11880002 S/N 11145 - Differential lock 11880002, 11891209, 11891224, 11891255 S/N - 11144, 11891255 S/N 11145 -, 11891224 S/N 11145 - Oil cooler, transmission 11884150, 11885845, 11891283, 11891289, 11891389, 11891390 Multi-disc brake, rear S/N 11145 - Multi-disc brake, rear 11880002, 11891209, 11891224, 11891255, S/N - 11144 Wheel brake, rear 11880002, 11891209, 11891255, S/N 11145 - Wheel brake, rear 11294005, 11298196, 11298198, 11880002 Dual brake pedals S/N - 11144 Hydraulic parking brake S/N 11145 - Parking brake 11298159, 11880002, S/N 11145 - Parking brake 11298009, 11298010, 11880002, 11298021 Steering column with fitting parts 11891283, 11891289, 11891390 Steering system S/N 11145 - Steering system Control valve Chassis 11891256 105 KG, 11891315 202+133 KG, 11891316 202+2X133 KG Counterweight 11891283 FRONT, 11891283 REAR, 11891289 FRONT, 11891289 REAR Wheel 11891267 FRONT, 11891267 REAR, 11891275 FRONT, 11891275 REAR Wheel 11294005, 11298196, 11298198, 11891255 Cab body: roof and floor panel. FRONT, REAR Cab mounting block 11880002, 11298198, 11298196, 11298239 Engine hood Radiator casing 11298028, 11298029, 11298196, 11298198 Mud guards 11891325 Fender, front 11298029, 11298198 Step handle canopy Foot step 11298028, 11298196 Door with fitting parts 11294005, 11298013, 11298164, 11298166 Rear view mirror 11294005, 11298028, 11298196, 11298012, 11298203 Glass panes 11294005, 11298028, 11298196 Windows 11298018, 11298028 Interior components 11891099: S/N -10718, 11891100 Operator seat with fitting parts 11891216 S/N 10665-, 11891099 S/N 10719-, 11891217 S/N 10665-, 11891100 S/N 10871-, 11891110 S/N 10687- Operator's seat 11891216 S/N -10664, 11891099 S/N -10718, CLOTH SEATS FOR CABS Operator's seat 11891217 S/N -10664, 11891100 S/N -10870, ROPS Operator's seat 11891110 S/N -10686, CABS Operator's seat, heated, air suspensioned. 11298018, 11298028, 11298196 Heating system 11298018 Air ducts 11298028, 11298196 Air ducts 11298028, 11298196 Cab heater 11298028, 11298196, 11298018 Radiator and control NEW, OLD, 11298028, 11298196 Cab heater with connectors 11298018 Air conditioning 11298018 Evaporator, assembly 11298018 Assembly hoses: Evaparator, receiver drier, condenser. 11294005, 11298028, 11880002, 11298032, 11298196, 11298198 Instrument panel 11891303, 11891488 Radio bracket 11298032 Vandalism kit 11294005, 11298028, 11298016, 11298198, 11298196 Interior components S/N - 11144, S/N 11145 -, 11880002 Cover for servo valves 11891506, 11891507, 11891508, 11891509, 11891510, 11891511 Cover for Pilot Excavator Controls SER NO -10640, EXCL 10637 Toolbox SER NO 10641-, INCL 10637 Toolbox 11891152 Tool Sign plates and decals WARNING Decals STD, 11891298, 11891324 Hydraulic oil tank Hydraulic system, suction line, filter S/N - 10602, S/N 10603 - 11144 Hydraulic system, return line S/N 11145 - Hydraulic system, return line S/N - 11144 Hydraulic oil cooler S/N 11145 - Hydraulic oil cooler Hydraulic system, feed line 11880002 S/N 11145 - Hydraulic system, feed line 11891090 Hydraulic system, hammer 11891375 Pipes for hammer attachment Hydraulics loader (lift & tilt) 11891005, 11891065, 11891020 Hydraulic system extendible dipper arm Hydraulic system, excavator Hydraulic system, stabiliser legs 11891005, 11891020, 11880002 S/N - 11144, 11891208, 11891065, 11880002 S/N 11145 - Hydraulic system loader 11891005, 11891041, 11891022,11891441, S/N - 11144 Hydraulic system, excavator beam 11880002, S/N 11145 - Hydraulic system, boom 11891005, 11891041, 11891022, 11891441, S/N - 11144 Hydraulic system dipper arm 11880002, S/N 11145 - Hydraulic system dipper arm 11891022 Hydraulic system, bucket 11891041, 11891441, S/N - 11144 Hydraulic system, bucket 11880002, 11891041, 11891441, S/N 11145 - Hydraulic system, bucket 11891005, 11891022, 11891441 Hydraulic system extendible dipper arm Hydraulic system, lock cylinder 11891065, 11891020, 11891005 Hydraulic system, combi-bucket 11891506, 11891507, 11891508, 11891509, 11891510, 11891511 Hydraulic system pilot excavator controls 11891208, 11891020, 11891005, 11891065 Loader controls 11891506, 11891509 Excavator Controls ISO 11891507, 11891510 Excavator Controls SAE 11891508, 11891511 Excavator Controls SAE/ISO Valve body 11886146 Valve body 11988512 Inlet valve 11988513 Valve section 11988514, 11988515, 11988517, 11988518 Valve section 11715626, 11715627, 11715629, 11715630 Valve section 11988516 Valve section 11715628 Valve section 11988520 Valve section 11715632 Valve section Pressure limiting valve Hydraulic pump with fitting parts SER NO -10657, EXCL 10656 Hydraulic pump SER NO 10658-, INCL10656 Hydraulic pump 11891005, 11891020, Ser No -10766 11891208, 11891065, Serial no. 10906-10906, 10916 - 11891005 Servo valve Ser No 10767- 11891208, 11891065, 11880002 S/N 11145 - Servo valve 11886631, 11886632, 11886633 Servo valve 11891113, 11891112 Controls SER NO - 10476, 10478-10498, 10501-10502, 10511-10512, 10514-10516, 10518-10522, 10527-10535, 10539-10543, 10551-10553, 10562, 10578-10580, 10585-10602. 11891005, 11891065 Pedal SER NO 10477, 10499-10500, 10503-10510, 10513, 10517, 10523-10526, 10536-10538, 10544-10550, 10554-10561, 10563-10577, 10581-10584, 10603 - 11891005, 11891065 Pedal 11891333 Optional hydraulic equipment 11891293 S/N - 11144 Boom suspension system 11891293 S/N - 11145 Boom suspension system 11891299 Attachment bracket, mechanical 11891335, 11891352, 11891361, 11891363 Hydraulic attachment bracket digger 11891352, 11891363 Hydraulic attachment bracket digger 11891335, 11891361 Hydraulic attachment bracket digger 11886515, 11887349, 11891335, 11891363 Hydraulic attachment bracket 11891335, 11891363 Hydraulic cylinder, quick attachment 11891238 Hydraulic attachment bracket 11891238 Hydraulic cylinder, quick attachment 11891238 Hydraulic attachment bracket 11891318 S/N - 11144, 11891319, 11891318 S/N 11145 -, 11891320 S/N 11145 - Bucket, straight with teeth 11891202, 11891091, 11891092, 11891321, 11891043 S/N 11145 - Bucket, straight with teeth 11891093, 11891192, S/N 11145 - Bucket, straight with teeth 11891321 S/N - 11144, 11891320 S/N - 11144, 11891043 S/N - 11144, (BACKHOE) Bucket, straight with teeth 11891194, 11891265, 11891264, (LOADER) Bucket, straight with teeth 11891295, 11891296 Bucket, straight lip without teeth 11891540, 11891565 Bucket, straight lip without teeth 11891018 EARLY PROD, 11891265, 11891282, 11891015 Multi-purpose bucket 11891018 LATE PROD, 11891265, 11891282, 11891015 Multi-purpose bucket 11891541 Multi-purpose bucket 11891018 (MULTI-PURPOSE BUCKET) Hydraulic cylinder 11891355, 11891356, 11891357, (BACKHOE) Bucket, straight with teeth 11891350 Transport bracket without front bucket 11891282, 11891176 Fork arm 11891017, 11891331, 11891546 Retainer for hammer 11891017 Hammer 11880002 S/N - 11144, 11891005 S/N - 11144, 11891020 S/N - 11144, 11891065 S/N - 11144 Lifting framework with assembly parts 11891561, 11891539 Pins for mounting bucket 11880002, S/N 11145 - Lifting framework with assembly parts 11883975, 11883976, 11891005, 11891020, 11891065 Hydraulic cylinder lifting 11885484, 11883977, 11891005, 11891020, 11891065, 11891208 Hydraulic cylinder Tilting Swing system Boom swing system Swing cylinder 11884579, 11888096 S/N 11145 - Lock cylinder S/N - 11144, S/N 11145 - Stabilisers S/N - 10881, S/N 10882 - Stabiliser cylinder 11891329 S/N - 11144, 11891364, 11891365 Foot plate 11884737, 11886266 S/N - 11144, 11888239 S/N 11145 -, 11891022 Excavator boom, exendible dipper arm S/N - 11144, S/N 11145 -, 11891041, 11891441 Boom and dipper arm 11891005, 11891041, 11891022, 11891441 Boom cylinder 11891005, 11891041, 11891022, 11891441 Dipper arm cylinder SER NO -10643, SER NO 10644-, 11891022, 11891041, 11891441 Bucket cylinder 11891005, 11891022 Extendible dipper cylinder

1

2

3

3

4

4

5

6

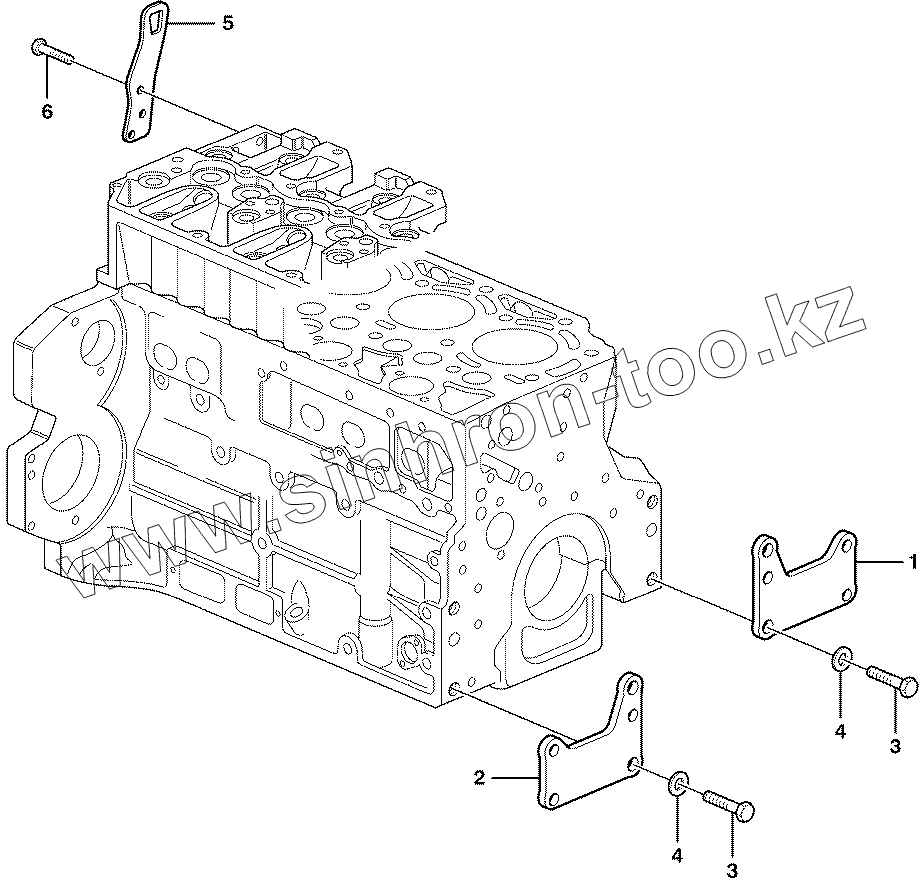

Позиция на иллюстрации	Заводской номер детали		Название детали
1	VOE 20723978		Bracket
2	VOE 20723984		Bracket
3	VOE 20535027		Screw
4	VOE 20405606		Washer
5	Lifting eye		Lifting eye
6	VOE 20450756		Screw

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
