Каталог запасных частей к технике: Volvo BL61 Plus. Oil filler and dipstick

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано BL60 BL61 BL61 Plus BL70 BL71 BL71 Plus BL71B

Схема > Не выбрано Repair kits for engine Engine Cylinder head Cylinder block Crankcase ventilation Pistons Valve mechanism Timing gear casing and gears Crankshaft and related parts Flywheel housing Oil sump Engine mounting Engine suspension 11891077, 11891595, 11895023 Lubricating oil system Oil filter Oil cooler Fuel tank with fitting parts Fuel pump 11891566 Box 11891566 Fuel system Fuel pump Fuel injection pump with fitting parts Regulator Fuel lines and injectors Inlet manifold and exhaust manifold Exhaust system, silencer Turbocharger with fitting parts Air filter with fitting parts Air filter Air filter 11891529 Radiator with fitting parts Expansion tank with fitting parts Cooling system Water pump and thermostat housing Fan Belt transmission Engine heater 11891429, 11891430 Regulator control 11880101, 11298204, 11298208 Hand throttle Shutdown device Battery box with fitting parts Alternator with assembling details Starter motor with assembling details Lighting Work lights Lighting, rear License plate lamp 11891001 Position pointer and anchorage, license plate 11298034 Inner lamp Horn Rotating beacon Windshield wiper, front 11298203, 11298204 Windshield wiper, rear 11298204, 11298203 Windshield washer Battery cable and main switch Cable harness, engine Cable harness, transmission 11891077, 11895023 Cable harness, transmission 11891595 Cable Harness Lighting Cab Ext. 11298204, 11298208 Cable Harness cab int. roof 11298204 Cable harness chassis Cable harness rear valve block Other cables Cable harness, tail light 11891000, 11891002, 11891050, 11891248, 11891249 Cable harness, panel Cable harness, panel 11891595 Cable harness, control panel right Cable harness, control panel right 11891595 Cable harness heater and air conditioning 11298204 Cable harness, Loader Quick Attach 11891238 Electrical distribut.unit and control unit Instrument panel Switch Anti-theft Kit 11891332 Foot switch and electric power outlet Torque converter with fitting parts Hydraulic transmission with fitting parts 11891595 Hydraulic transmission with fitting parts 11891077, 11895023 Oil filler and dipstick Oil filler and dipstick 11891077, 11895023 Oil pump 11891595 Oil pump 11891077, 11895023 Clutch shaft forward/reverse 11891595 Clutch shaft forward/reverse 11891077, 11895023 Reverse and primary shaft 11891077, 11895023 Reverse and primary shaft Secondary shaft 11891595 Secondary shaft 11891077, 11895023 Hydraulic clutch, 4wd 11891595 Axle, four-wheel drive 11891077, 11895023 Control valve 11891595 Gearshifting 11891077, 11895023 Range selector valve 11891077, 11895023 Solenoid valve 4wd 11891077, 11895023 Gear selector, 4-wheel drive 11891077, 11895023 Gear box housing with fitting parts Propeller shaft 11891077, 11891595, 11895023 Propeller shaft, mounting 11891077, 11891595, 11895023 Planet axles with fitting parts Front axle 11887361 Planetary axle, front 11891531 Pinion 11891531 Pinion 11887361 Differential , front axle 11887362 Differential , front axle 11887361 Drive axle 11887361 Drive axle 11887362 Wheel hub Wheel hub 11887362 Planetary gear 11887362 Planet shaft, rear 11887363 Pinion 11887363 Differential. Rear 11887363 Hub reduction, rear axle 11887363 Differential lock Differential lock Oil cooler, transmission Multi-disc brake, rear 11887363 Wheel brake, rear Brake system 11298204, 11298208 Parking brake Parking brake Steering column with fitting parts Steering system 11880101 (AX 11887361) Steering system 11891531 (AX 11887362) Control valve Frame Protecting plates 11891580 Counterweight Wheel 11891531 Wheel 11891305 Wheel Wheel Cab body: roof and floor panel Cab mounting block Engine hood Radiator casing Splashguards, protective plates Fender, front Fenders 11298204, 11298208 Small rear fender 11891514 Foot step Step handle canopy 11298208 Door with fitting parts 11298204 Rear view mirror Glass panes Windows 11298204 Interior components 11298233 Operator seat with fitting parts Operator's seat Operator's seat 11891110, 11888868 Air ducts 11298233 Air ducts 11298204 Cab heater 11298204 Radiator and control Cab heater with connectors 11298204 Air conditioning 11298233 Evaporator, assembly 11298233 Assembly hoses: Evaparator, receiver drier, condenser 11298233 Instrument panel Radio bracket Vandalism kit 11298032 Interior components Casing loader controls 11891415, 11895001, 11895000 Toolbox Tool 11891152 Stop block holder 11891000, 11891050, 11891094 Toolbox 11891584 Sign plates and decals Decals WARNING Hydraulic oil tank Hydraulic system, suction line, filter 11891077, 11891595, 11895023 Hydraulic system, return line Hydraulic oil cooler Hydraulic system, feed line Hydraulic system, hammer Pipes for hammer attachment 11891375 Hydraulic system, stabiliser legs Hydraulics loader (lift & tilt) Hydraulic system, excavator Hydraulic system loader Hydraulic system loader 11891594, 11895001 Hydraulic system, boom Hydraulic system dipper arm Hydraulic system, bucket Hydraulic system extendible dipper arm Hydraulic system, lock cylinder Safety valve boom and dipper arm cylinder 11891150 Hydraulic system, combi-bucket 11891594, 11895001 Hydraulic system loader safety valves 11891151 Valve body Valve body Inlet valve Magnet valve 11891455 Valve section Valve section Exhaust valve Safety valve boom and dipper arm cylinder 11891150 Safety valve loader 11891151 Hydraulic pump 11891077, 11891595, 11895023 Controls Loader controls Pedal 11891417, 11895018, 11895019, 11895020, 11891273 Hydraulic system, sideshift Optional hydraulic equipment 11891369 Boom suspension system 11891345 Attachment bracket, mechanical 11891299 Hydraulic attachment bracket digger 11891448, 11891449, 11891450, 11891451 Hydraulic attachment bracket digger Hydraulic attachment bracket digger Hydraulic attachment bracket 11891448, 11891450 Hydraulic attachment bracket 11891238 Hydraulic cylinder, quick attachment 11891238 Hydraulic attachment bracket 11891238 Bucket, straight with teeth Bucket, straight with teeth Bucket, straight with teeth Bucket, straight lip without teeth Bucket, straight lip without teeth Multi-purpose bucket Multi-purpose bucket 11891541 Multi-purpose bucket 11891423 Legal kit for Italy 11891002 Hydraulic cylinder 11891018 Transport bracket without front bucket 11891350 Fork arm Retainer for hammer 11891017 Hammer 11891017 Forks (optional) 11891498, 11891504, 2805036 Hammer Lifting framework with assembly parts Lifting framework with assembly parts Pins for mounting bucket Mechanical self levelling tilt mechanism Hydraulic cylinder, lifting Hydraulic cylinder, tilt Swing system Boom swing system Swing cylinder Lock cylinder Stabilisers Stabiliser cylinder Excavator boom, extendible dipper arm Boom and dipper arm Boom cylinder Dipper arm cylinder Extendible dipper cylinder 11891273

1

2

3

3

4

5

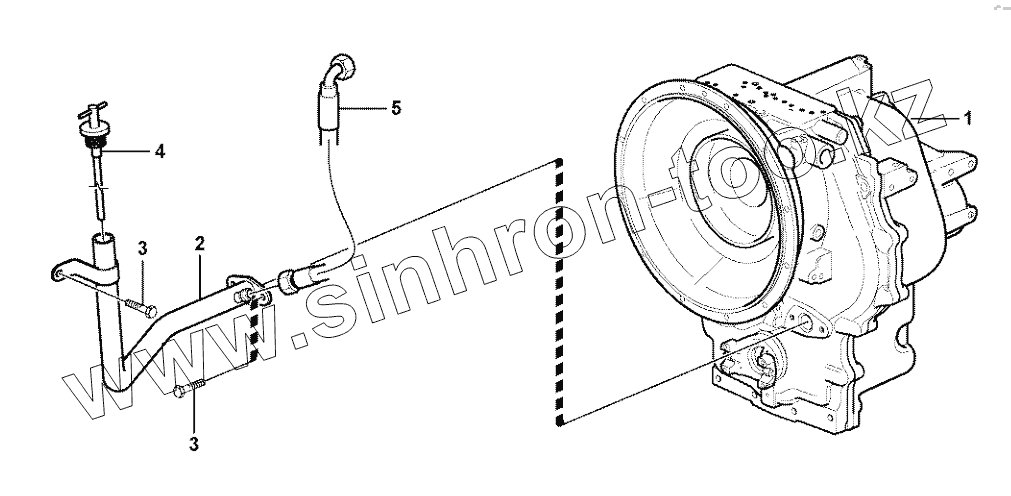

Позиция на иллюстрации	Заводской номер детали		Название детали
1	VOE11887381		Transmission
2	VOE11888392		Filler pipe
3	VOE13967630		Allen Hd Screw
4	VOE11888467		Dipstick
5	VOE11882192		Hose assembly

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
