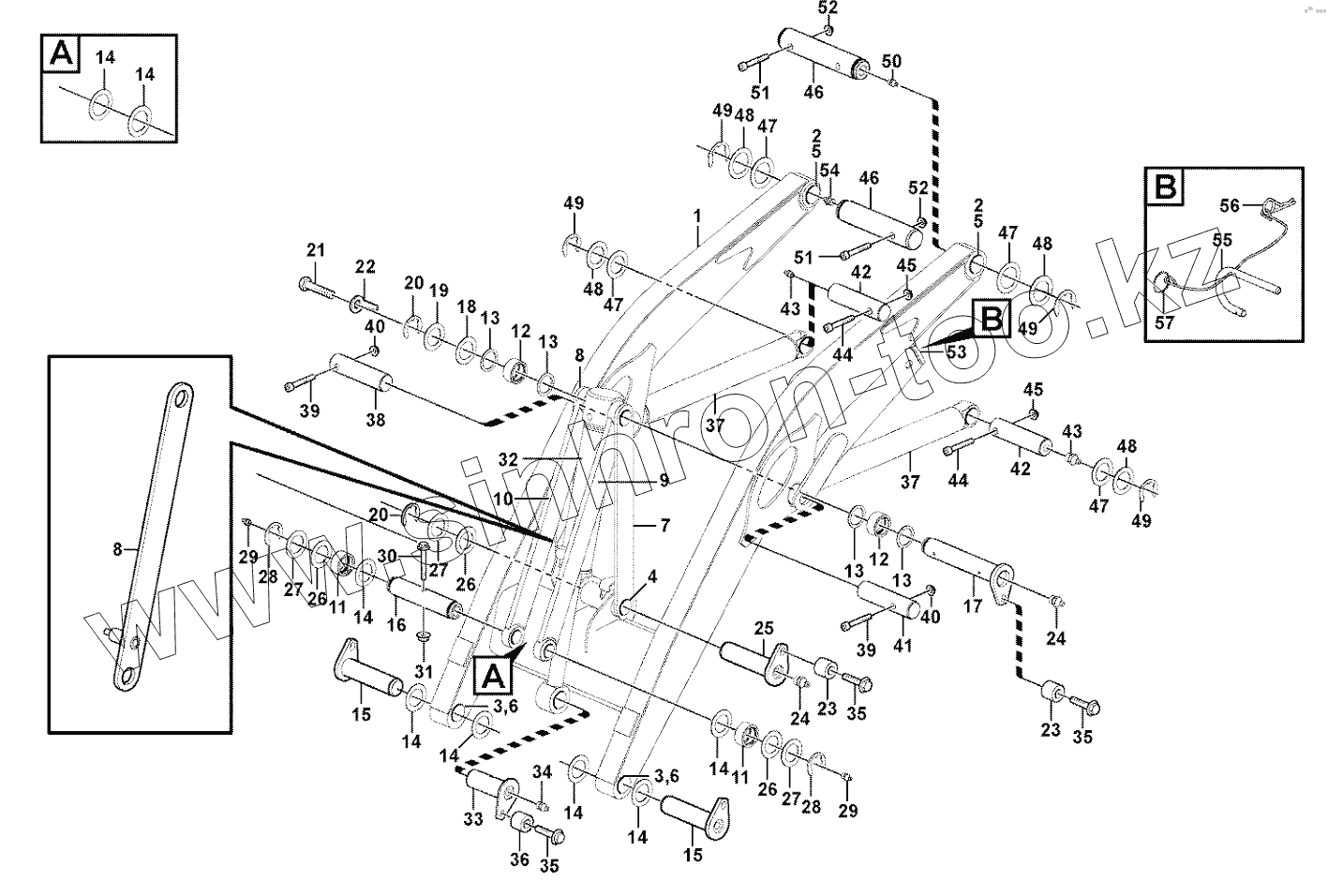

Каталог запасных частей к технике: Volvo BL61 Plus. Lifting framework with assembly parts
1
2
2
3
3
4
5
5
6
6
7
8
8
9
10
11
11
12
12
13
13
13
13
14
14
14
14
14
14
14
14
15
15
16
17
18
19
20
20
21
22
23
23
24
24
25
26
26
26
27
27
27
28
28
29
29
30
31
32
33
34
35
35
35
36
37
37
38
39
39
40
40
41
42
42
43
43
44
44
45
45
46
46
47
47
47
47
48
48
48
48
49
49
49
49
50
51
51
52
52
53
54
55
56
57
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | VOE11889130 | Loader arm | |
| 2 | VOE11883772 | Bushing | |
| 3 | VOE11883802 | Bushing | |
| 4 | VOE11883803 | Bushing | |
| 5 | VOE11890069 | Seal | |
| 6 | VOE11882456 | Seal | |
| 7 | VOE11884638 | Link | |
| 8 | VOE11887308 | Arm | |
| 9 | VOE11884822 | Link | |
| 10 | VOE11884815 | Link | |
| 11 | VOE11883801 | Bushing | |
| 12 | VOE11883857 | Bushing | |
| 13 | VOE11883937 | Scraper | |
| 14 | VOE11882456 | Seal | |
| 15 | Pin | Pin | |
| 16 | VOE11882932 | Pin | |
| 17 | VOE11888280 | Pin | |
| 18 | VOE11883929 | Washer | |
| 19 | VOE11883930 | Washer | |
| 20 | VOE11890110 | Snap Ring | |
| 21 | VOE13965191 | Flange screw | |
| 22 | VOE11884117 | Indicator | |
| 23 | VOE11888951 | Spacer Tube | |
| 24 | VOE914167 | Nipple | |
| 25 | VOE11883032 | Pin | |
| 26 | VOE11890115 | Washer | |
| 27 | VOE11890116 | Washer | |
| 28 | VOE11890110 | Snap Ring | |
| 29 | VOE914167 | Nipple | |
| 30 | VOE969313 | Flange screw | |
| 31 | VOE13971098 | Flange nut | |
| 32 | TiltCylinder | Tilt Cylinder | |
| 33 | VOE11884182 | Pin | |
| 34 | VOE914167 | Nipple | |
| 35 | VOE974428 | Flange screw | |
| 36 | VOE11884170 | Spacer | |
| 37 | Liftingcylinder | Lifting cylinder | |
| 38 | VOE11888366 | Pin | |
| 39 | VOE967640 | Screw | |
| 40 | VOE983304 | Hexagon Nut | |
| 41 | VOE11883381 | Pin | |
| 42 | VOE11883858 | Pin | |
| 43 | VOE914167 | Nipple | |
| 44 | VOE967640 | Screw | |
| 45 | VOE13971098 | Flange nut | |
| 46 | VOE11883029 | Pin | |
| 47 | VOE11890117 | Washer | |
| 48 | VOE11890118 | Washer | |
| 49 | VOE11890109 | Snap Ring | |
| 50 | VOE914167 | Nipple | |
| 51 | VOE968237 | Flange screw | |
| 52 | VOE13971098 | Flange nut | |
| 53 | VOE11888910 | Safety Brace | |
| 54 | VOE11887317 | Lubricating nipple | |
| 55 | VOE11888912 | Pin | |
| 56 | VOE11888913 | Pin | |
| 57 | VOE11884616 | Ring |
