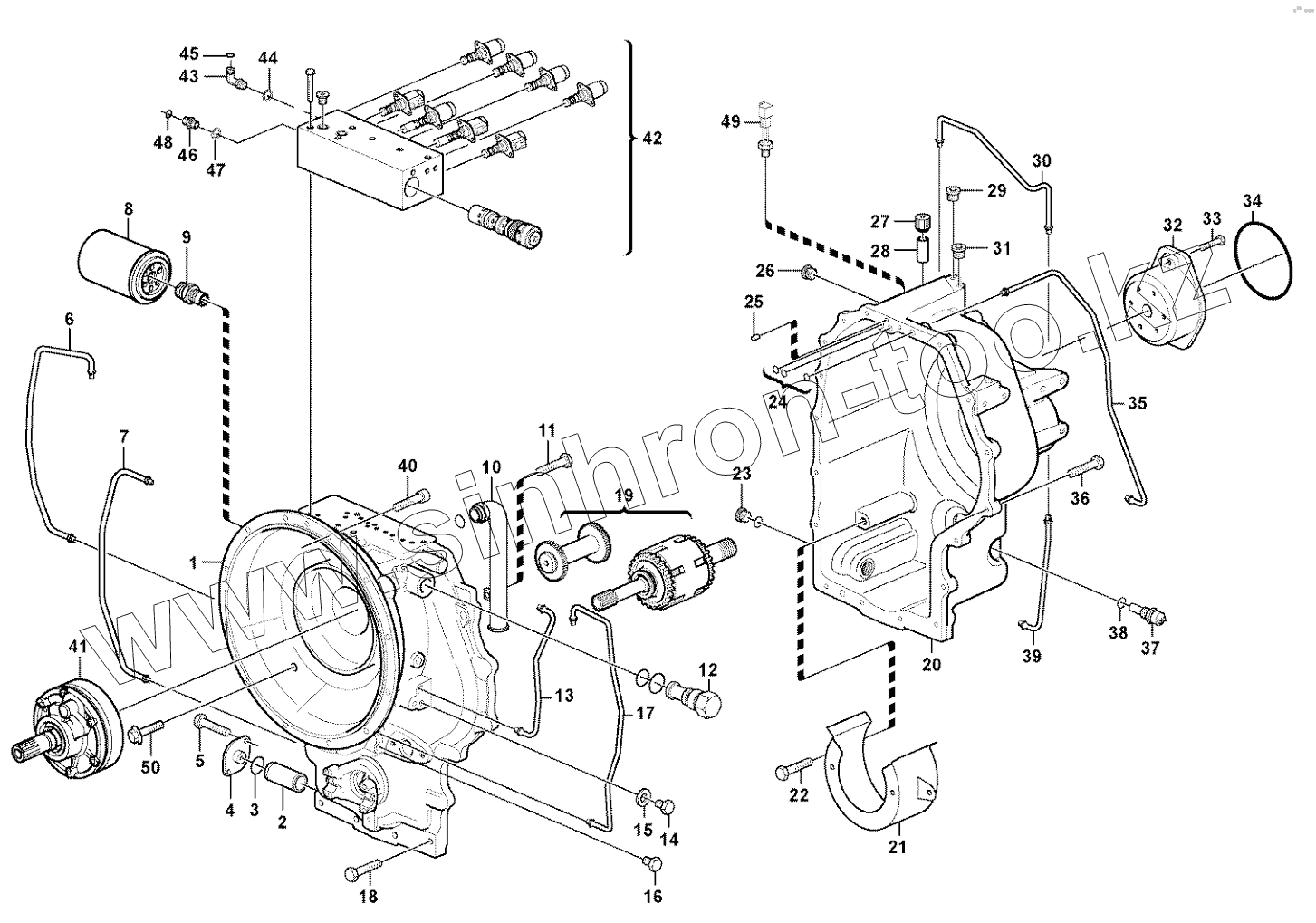

Каталог запасных частей к технике: Volvo BL61 Plus. Hydraulic transmission with fitting parts 11891595

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
VOE11887381
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
Позиция на иллюстрации Заводской номер детали Название детали
VOE11887381 VOE11887381 Transmission
1 VOE11716634 Housing
2 VOE11709050 Oil Filter
3 VOE11709051 O-ring
4 VOE11709052 Cover
5 VOE13955294 Screw
6 VOE11716632 Tube
7 VOE11716633 Tube
8 VOE11709048 Oil Filter
9 VOE11709053 Nipple
10 VOE11716635 Tube
11 VOE946441 Flange screw
12 VOE11712951 Valve
13 VOE11716636 Tube
14 VOE11709061 Plug
15 VOE11709199 Washer
16 VOE11709075 Plug
17 VOE11716637 Tube
18 VOE13970949 Hexagon screw
19 InputShaft Input Shaft
19 ReverseShaft Reverse Shaft
19 Primaryshaft Primary shaft
19 SecondaryShaft Secondary Shaft
19 Outputshaft Output shaft
20 VOE11716645 Housing
21 VOE11716638 Protection
22 VOE946441 Flange screw
23 VOE11709057 Plug
24 VOE11709068 O-ring
25 VOE950588 Pin
26 VOE11709055 Plug
27 VOE11709060 Breather Cap
28 VOE11709063 Breather Pipe
29 VOE11709075 Plug
30 VOE11712950 Pipe
31 VOE11716639 Plug
32 VOE11716640 Flange
33 VOE13970947 Hexagon screw
34 VOE11709074 O-ring
35 VOE11716641 Tube
36 VOE13970949 Hexagon screw
37 VOE11716642 Sensor
38 VOE11716643 Washer
39 VOE11716644 Tube
40 VOE13970947 Hexagon screw
41 Oilpump Oil pump
42 Controlvalve Control valve
43 VOE13933857 Elbow Nipple
44 VOE932039 O-ring
45 VOE990736 O-ring
46 VOE13933858 Union
47 VOE932039 O-ring
48 VOE990736 O-ring
49 VOE11881160 Temp Sensor
50 VOE965225 Flange screw
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
