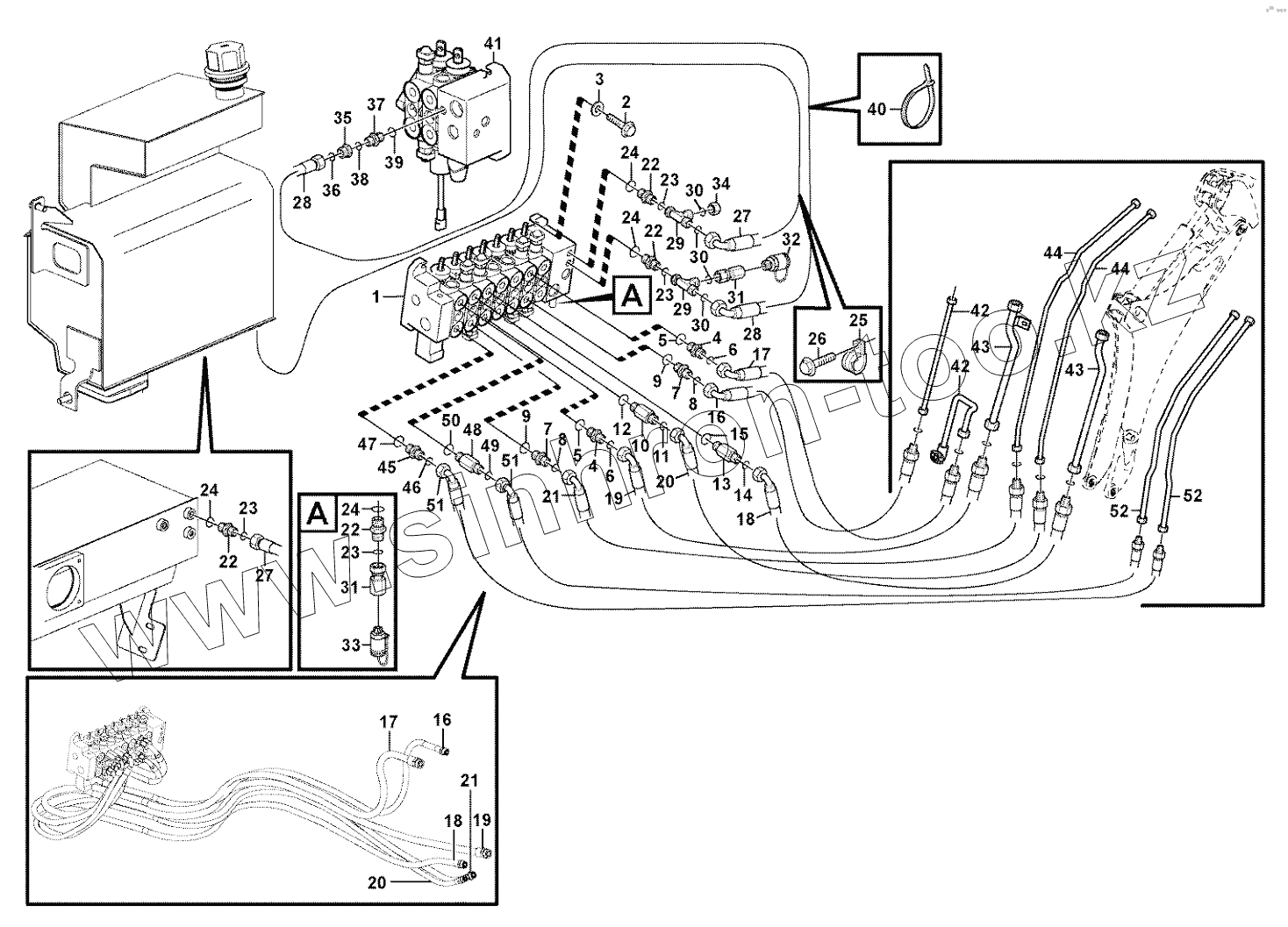

Каталог запасных частей к технике: Volvo BL61 Plus. Hydraulic system, excavator
VOE990740
VOE990740
VOE4880663
VOE4880663
VOE981290
VOE981290
VOE990740
VOE990740
VOE981290
VOE981290
VOE990740
VOE990740
1
2
3
4
4
5
5
6
6
7
7
8
8
9
9
10
11
12
13
14
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
22
22
23
23
23
23
24
24
24
24
25
26
27
27
28
28
29
29
30
30
30
31
31
32
33
34
35
36
37
38
39
40
41
42
42
43
43
44
44
45
46
47
48
49
50
51
51
52
52
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| VOE990740 | VOE990740 | O-ring | |
| VOE4880663 | VOE4880663 | O-ring | |
| VOE981290 | VOE981290 | O-ring | |
| VOE990740 | VOE990740 | O-ring | |
| VOE981290 | VOE981290 | O-ring | |
| VOE990740 | VOE990740 | O-ring | |
| 1 | Valve | Valve | |
| 1 | Valve | Valve | |
| 2 | VOE983253 | Hexagon screw | |
| 3 | VOE13930842 | Washer | |
| 4 | VOE13933862 | Nipple | |
| 5 | VOE932042 | O-ring | |
| 6 | VOE990740 | O-ring | |
| 7 | VOE935032 | Nipple | |
| 8 | VOE4880663 | O-ring | |
| 9 | VOE932042 | O-ring | |
| 10 | VOE11883712 | Fitting | |
| 11 | VOE990738 | O-ring | |
| 12 | VOE932042 | O-ring | |
| 13 | VOE11883713 | Fitting | |
| 14 | VOE4880663 | O-ring | |
| 15 | VOE932042 | O-ring | |
| 16 | VOE11882708 | Hose | |
| 17 | VOE11882707 | Hose | |
| 18 | VOE11882199 | Hose assembly | |
| 19 | VOE11882196 | Hose assembly | |
| 20 | VOE11882202 | Inlet Pipe | |
| 21 | VOE11882197 | Hose assembly | |
| 22 | VOE13933858 | Union | |
| 23 | VOE4881722 | O-ring | |
| 24 | VOE932039 | O-ring | |
| 25 | VOE978869 | Clamp | |
| 26 | VOE946671 | Flange screw | |
| 27 | VOE11885263 | Hose | |
| 28 | VOE11885261 | Hose | |
| 29 | VOE13933859 | Nipple | |
| 30 | VOE4881722 | O-ring | |
| 31 | VOE11884794 | Fitting | |
| 32 | VOE936446 | Testing Nipple | |
| 33 | VOE936439 | Testing Nipple | |
| 34 | VOE935756 | Plug | |
| 35 | VOE11885733 | Fitting | |
| 36 | VOE4881722 | O-ring | |
| 37 | VOE11885699 | Check valve | |
| 38 | VOE932039 | O-ring | |
| 39 | VOE4880663 | O-ring | |
| 40 | VOE14016673 | Strip Clamp | |
| 41 | Valve | Valve | |
| 42 | Pipe | Pipe | |
| 43 | Pipe | Pipe | |
| 44 | Pipe | Pipe | |
| 45 | VOE935093 | Union | |
| 46 | VOE4880493 | O-ring | |
| 47 | VOE932042 | O-ring | |
| 48 | VOE11883712 | Fitting | |
| 49 | VOE4880493 | O-ring | |
| 50 | VOE932042 | O-ring | |
| 51 | VOE11882207 | Hose | |
| 52 | Pipe | Pipe |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
