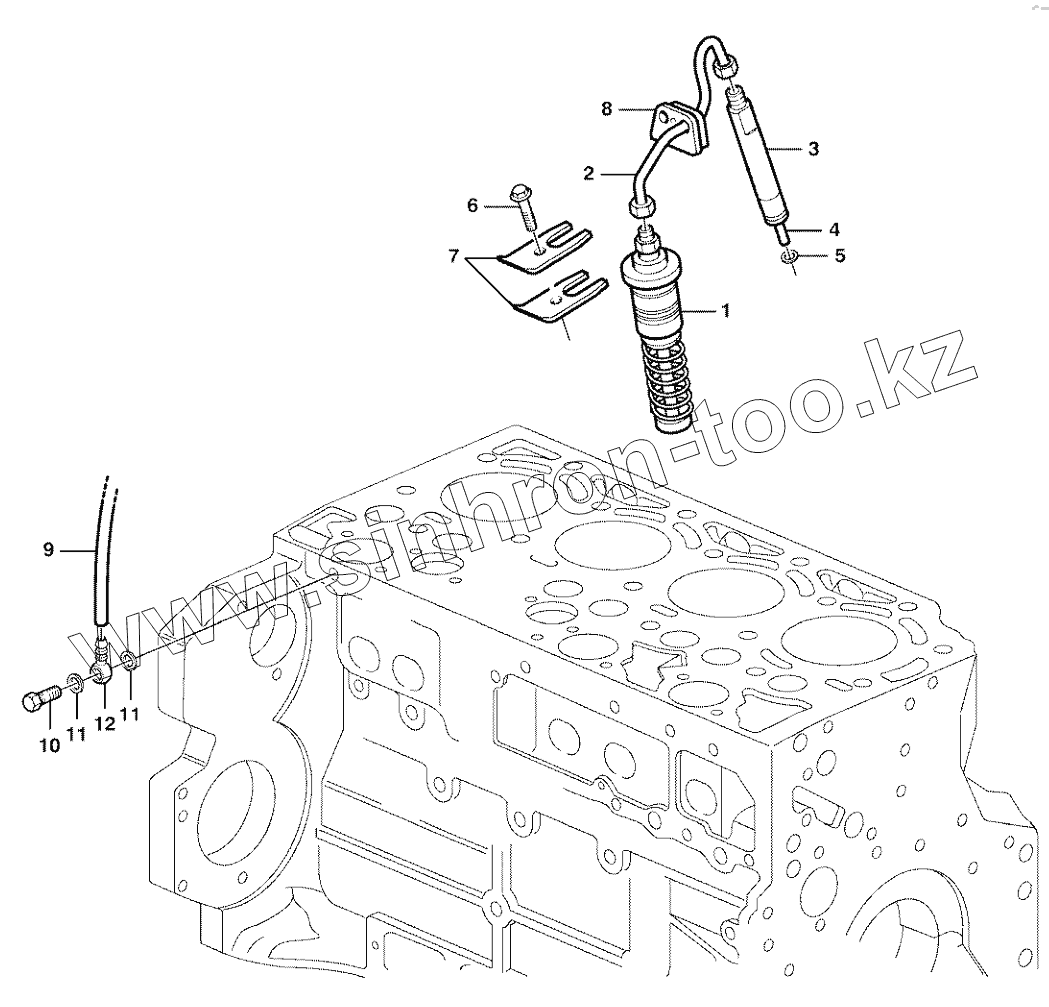

VOE20729227
1
2
3
4
5
6
7
8
9
10
11
11
12
Позиция на иллюстрации
Заводской номер детали
Название детали
VOE20729227
VOE20729227
Sealing ring
1
Injectionpump
Injection pump
2
VOE20460095
Fuel pipe
3
VOE24425916
Injector
4
VOE24425919
Nozzle
5
VOE11700426
Seal
6
VOE20405559
Screw
7
VOE11700424
Retainer
8
VOE11700487
Rubber Seal
9
Fuelhose
Fuel hose
10
VOE20405847
Valve
11
VOE13969011
Gasket
12
VOE20459906
Nipple
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
