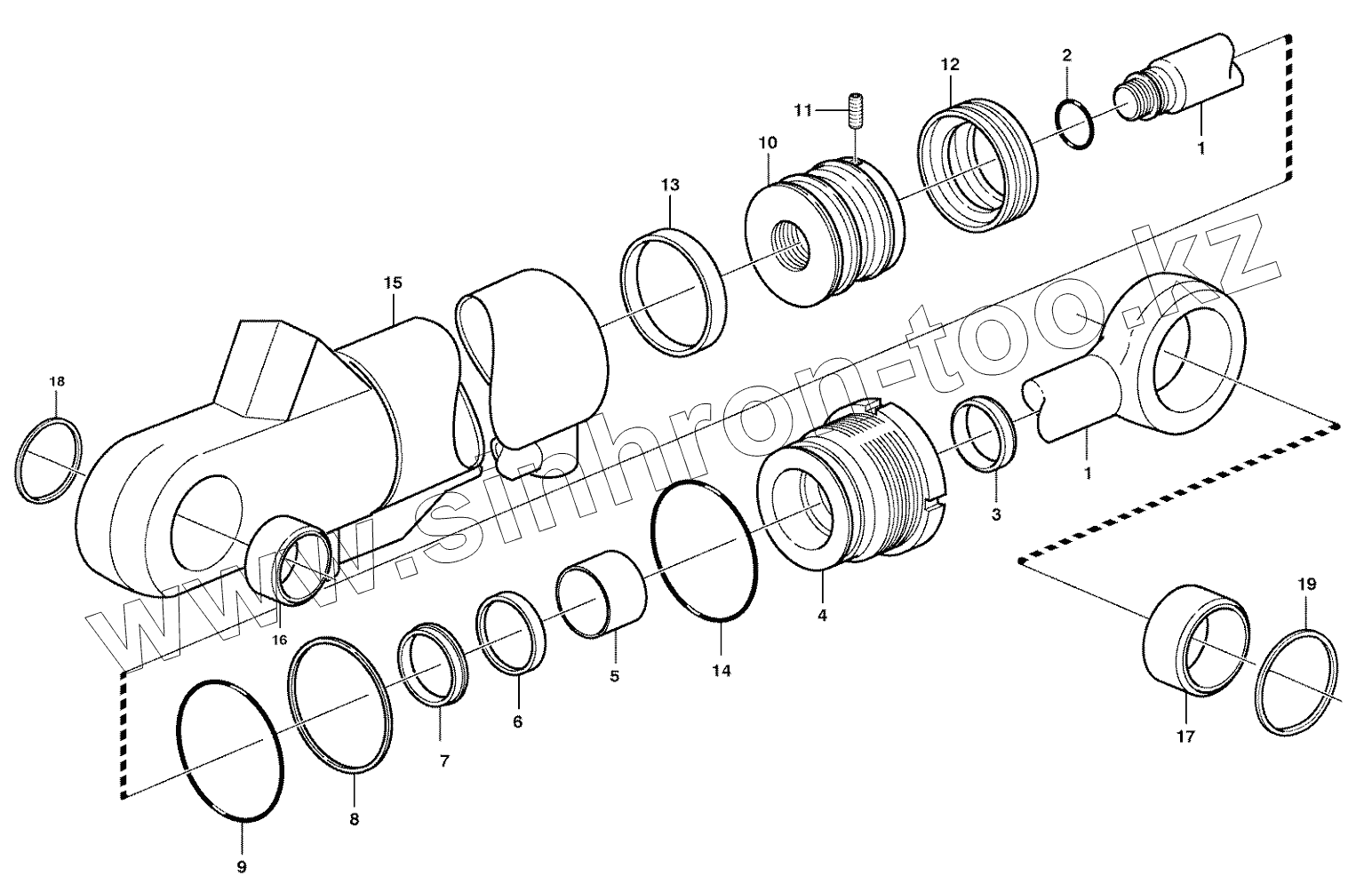

Extendible dipper cylinder 11891273
VOE11709538
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
Позиция на иллюстрации
Заводской номер детали
Название детали
VOE11886994
VOE11886994
Cylinder
VOE11709538
VOE11709538
Sealing Kit
1
VOE11988253
Piston Rod
2
O-ring
O-ring
3
Scraper
Scraper
4
VOE11709536
Pstn Rod Guide
5
GuideRing
Guide Ring
6
PistonRodSeal
Piston Rod Seal
7
LockRing
Lock Ring
8
Back-upring
Back-up ring
9
O-ring
O-ring
10
VOE11709537
Piston
11
Screw
Screw
12
Pistonseal
Piston seal
13
GuideRing
Guide Ring
14
O-ring
O-ring
15
Cylindertube
Cylinder tube
16
VOE11711485
Bushing
17
VOE11988256
Bushing
18
VOE11709605
Scraper
19
VOE11988257
Scraper
19
VOE11883936
Seal
