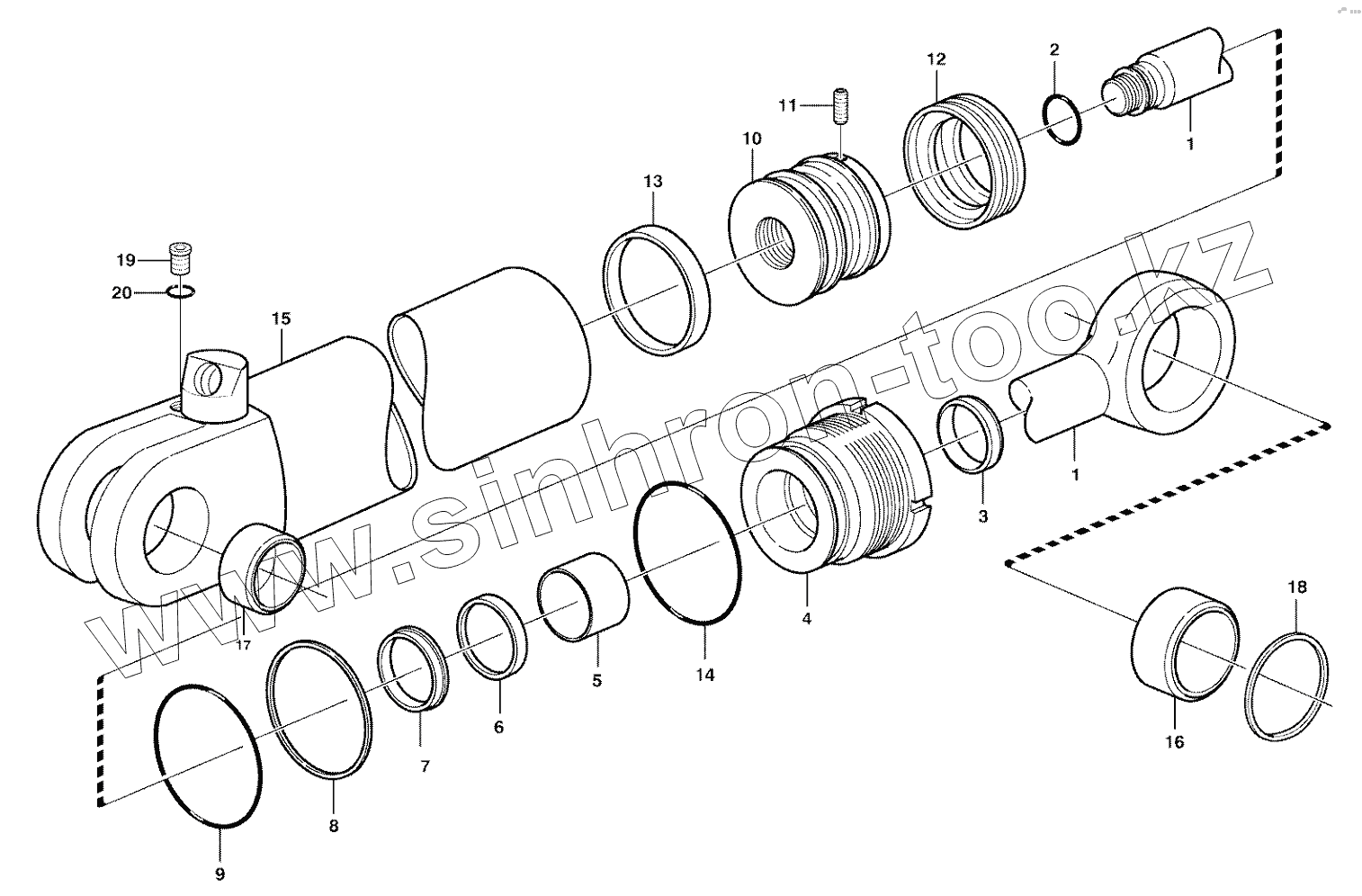

Dipper arm cylinder
Extendible dipper cylinder 11891273
VOE11881810
VOE11709624
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Позиция на иллюстрации
Заводской номер детали
Название детали
VOE11881810
VOE11881810
Dipper Arm Cylinder
VOE11709624
VOE11709624
Sealing Kit
1
VOE11712444
Piston rod
2
O-ring
O-ring
3
Scraper
Scraper
4
VOE11709619
Pstn Rod Guide
5
GuideRing
Guide Ring
6
PistonRodSeal
Piston Rod Seal
7
LockRing
Lock Ring
8
Back-upring
Back-up ring
9
O-ring
O-ring
10
VOE11709620
Piston
11
Screw
Screw
12
Pistonseal
Piston seal
13
GuideRing
Guide Ring
14
O-ring
O-ring
15
Cylindertube
Cylinder tube
16
VOE11711135
Bushing
17
VOE11711974
Bushing
18
VOE11883674
Sealing ring
19
VOE11883510
Plug
20
VOE932039
O-ring
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
