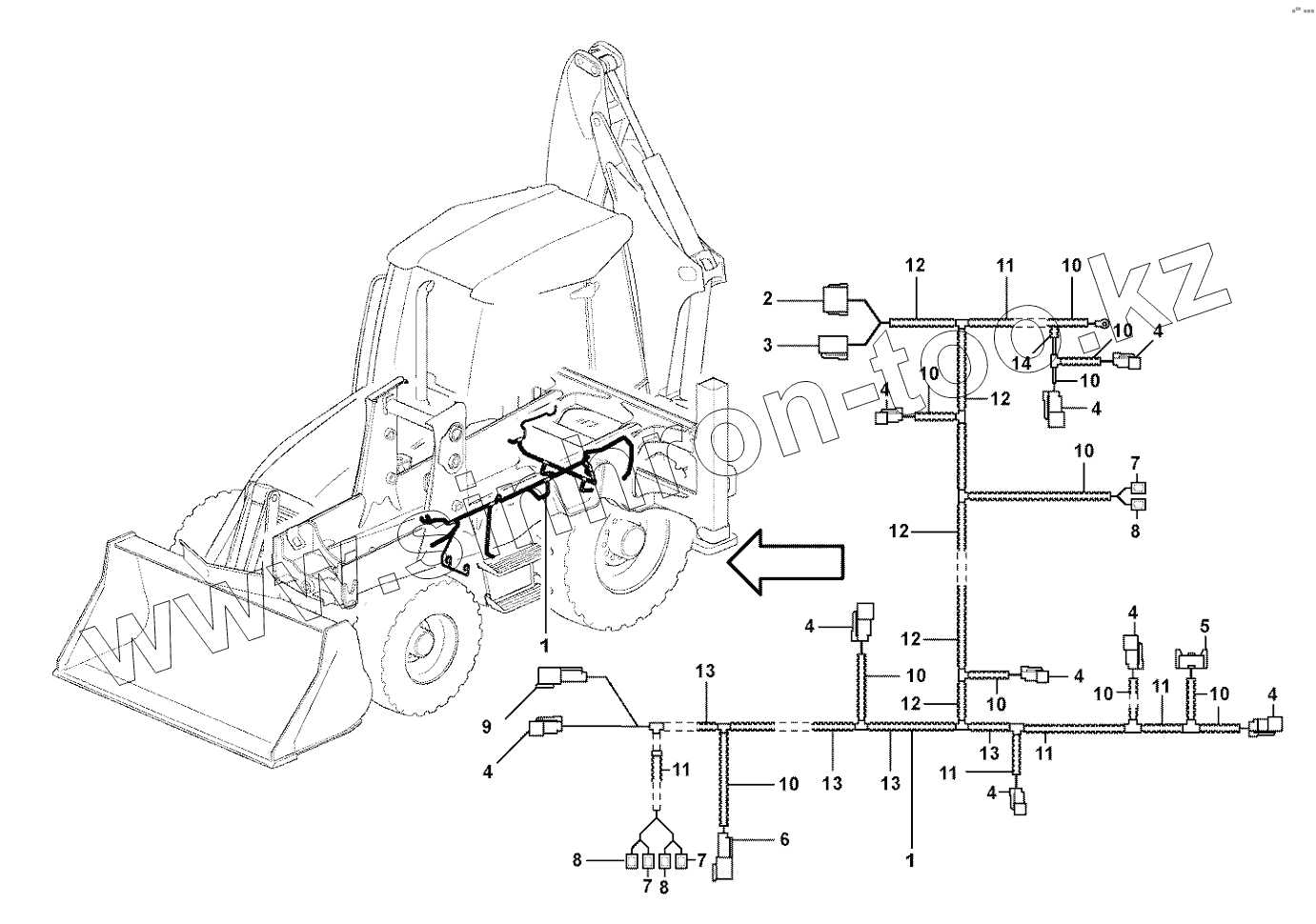

Каталог запасных частей к технике: Volvo BL61 Plus. Cable harness rear valve block
CableharnessCha
CableharnessCha
TempsensorHydr
TempsensorHydr
WshldWasher
WshldWasher
StarterRelay
StarterRelay
Hydraulicoilfilter
Hydraulicoilfilter
ValveBoomSuspen
ValveBoomSuspen
Reverse-motionala
Reverse-motionala
Overloadwarning
Overloadwarning
Hammer
Hammer
Boomlock
Boomlock
Horn
Horn
Earth
Earth
FloatPositionValve
FloatPositionValve
Sideshiftdiggingeq
Sideshiftdiggingeq
1
1
2
3
4
4
4
4
4
4
4
4
4
5
6
7
7
7
8
8
8
9
10
10
10
10
10
10
10
10
10
10
11
11
11
11
11
12
12
12
12
12
13
13
13
13
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| CableharnessCha | CableharnessCha | Cable harness Cha | |
| TempsensorHydr | TempsensorHydr | Temp sensor Hydr | |
| WshldWasher | WshldWasher | Wshld Washer | |
| StarterRelay | StarterRelay | Starter Relay | |
| Hydraulicoilfilter | Hydraulicoilfilter | Hydraulic oil filter | |
| ValveBoomSuspen | ValveBoomSuspen | Valve Boom Suspen | |
| Reverse-motionala | Reverse-motionala | Reverse-motion ala | |
| Overloadwarning | Overloadwarning | Overload warning | |
| Hammer | Hammer | Hammer | |
| Boomlock | Boomlock | Boom lock | |
| Horn | Horn | Horn | |
| Earth | Earth | Earth | |
| FloatPositionValve | FloatPositionValve | Float Position Valve | |
| Sideshiftdiggingeq | Sideshiftdiggingeq | Sideshift digging eq | |
| 1 | VOE11888536 | Wire harness | |
| 2 | VOE11709766 | Connector | |
| 3 | VOE874960 | Housing | |
| 4 | VOE874955 | Insulator | |
| 5 | VOE976256 | Insulator | |
| 6 | VOE11709787 | Connector | |
| 7 | VOE973119 | Cable terminal | |
| 8 | VOE973120 | Cable terminal | |
| 9 | VOE874954 | Connector | |
| 10 | VOE11170006 | Hose | |
| 11 | VOE4803746 | Hose | |
| 12 | VOE4803752 | Hose | |
| 13 | VOE4803748 | Hose |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
